Quick Details
-
Drilling Speed:
-
2430RPM
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Allwin
-
Model Number:
-
DP2501A
-
Voltage:
-
230V-240V
-
Dimension(L*W*H):
-
620*390*310mm
-
Power (kW):
-
0.55
-
Weight (KG):
-
22.5 KG
-
Max chuck capacity:
-
13mm
-
Spindle travel:
-
50mm
-
Taper:
-
JT33
-
NO. of speed:
-
5
-
Speed range:
-
50Hz/510-2430RPM 60Hz/610-2850RPM
-
Swing:
-
250mm
-
Table size:
-
194*165mm
-
Column diameter:
-
46mm
-
Base size:
-
341*208mm
-
Machine height:
-
730mm
Quick Details
-
type:
-

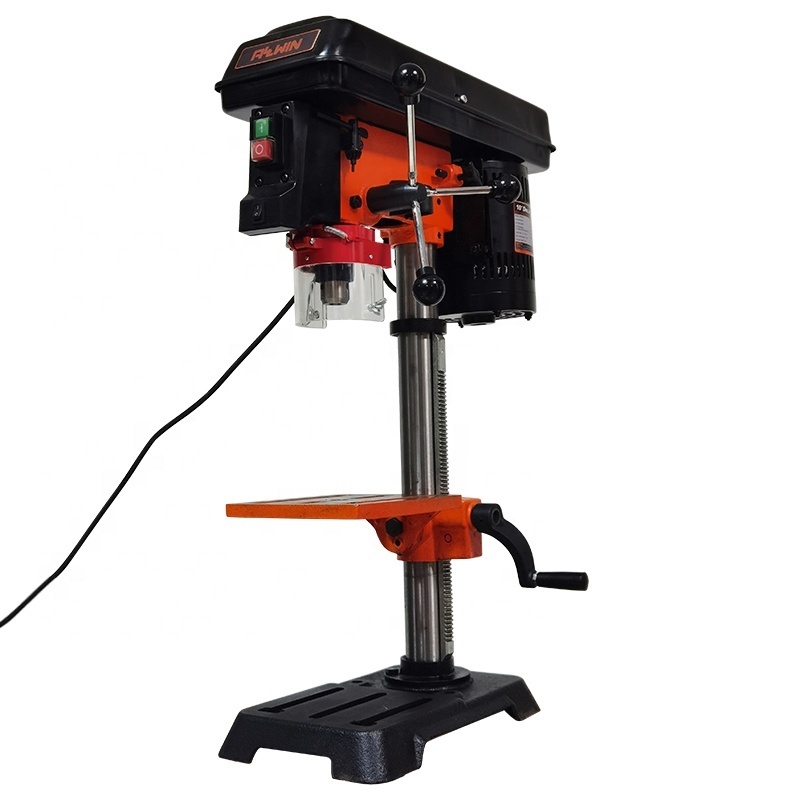

Pillar Drilling Machine
-
Max. Drilling Dia. (mm):
-
13
-
Range of Spindle Speed(r.p.m):
-
510 - 2430 r.p.m
-
Drilling Speed:
-
2430RPM
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Allwin
-
Model Number:
-
DP2501A
-
Voltage:
-
230V-240V
-
Dimension(L*W*H):
-
620*390*310mm
-
Power (kW):
-
0.55
-
Weight (KG):
-
22.5 KG
-
Max chuck capacity:
-
13mm
-
Spindle travel:
-
50mm
-
Taper:
-
JT33
-
NO. of speed:
-
5
-
Speed range:
-
50Hz/510-2430RPM 60Hz/610-2850RPM
-
Swing:
-
250mm
-
Table size:
-
194*165mm
-
Column diameter:
-
46mm
-
Base size:
-
341*208mm
-
Machine height:
-
730mm
Product Description
| Max chuck capacity | 16mm |
| Spindle travel | 3-1/6inches |
| Taper | JT33 |
| NO. of speed | 5 |
| Speed range | 50Hz/510-2430RPM 60Hz/610-2850RPM |
| Swing | 10inches |
| Table size | 7-3/5x6-1/2inches |
| Column diameter | 1-4/5inches |
| Base size | 10-1/2x8-1/5inches |
| Machine height | 28-3/4inches |
