Quick Details
-
Model Number:
-
SD-168A
-
Color:
-
Ivory
-
Place of Oringin:
-
Dongguan
Quick Details
-
Use:
-
WINDING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SD
-
Model Number:
-
SD-168A
-
Color:
-
Ivory
-
Place of Oringin:
-
Dongguan

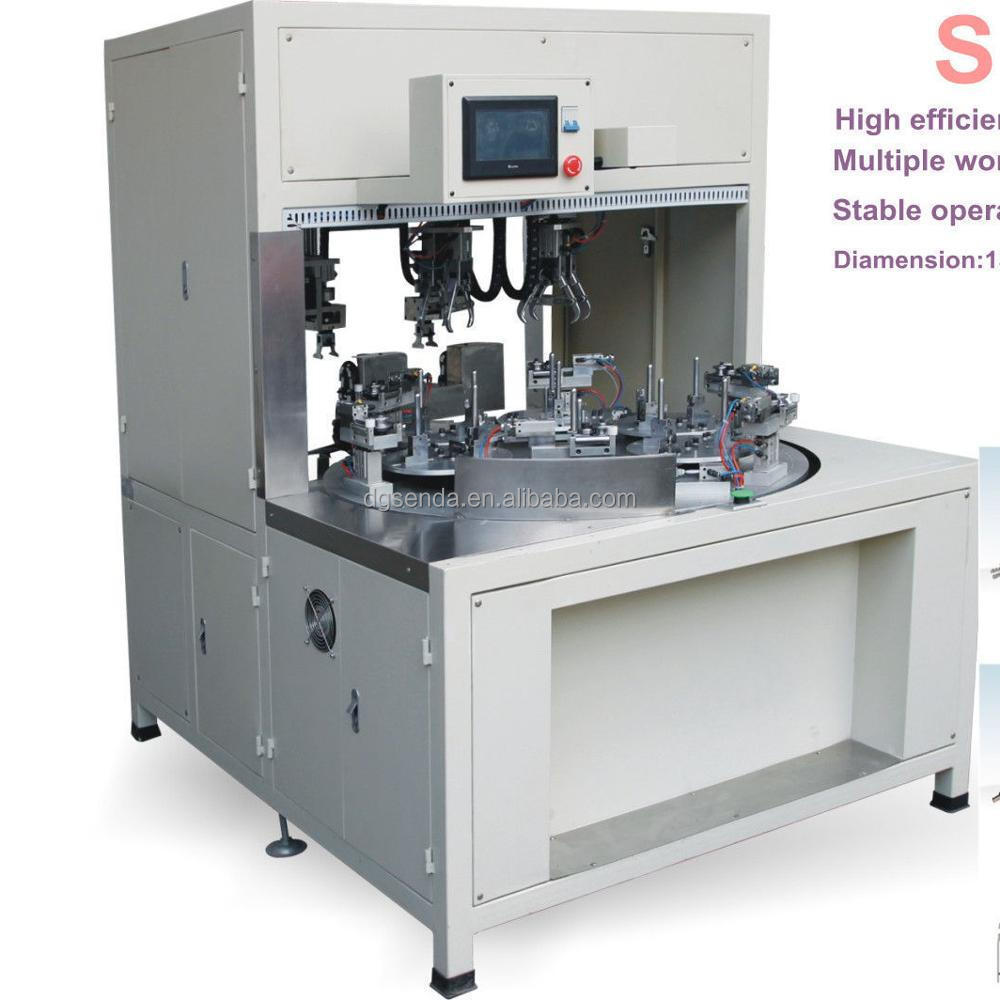

Automatic Wire Twisting Machine/Cable Twisting Machine/Cable Tie Machine
Description: Automatic cable twist tie machine be provided function with coil wind, auto twist tie finished in one end. There are three model of twist ite machine SD-168B(AC) coil AC cable with "8" form, SD-168B(DC) coil wind DC cable with "8" form. and SD-168C coil wind cable with circle form. Our automatic coil winding machine can twist tie many kinds of cable according to every customer's requirements.
Features:
- The machine can tie and twist the cable automaticly
- The head length, tail length, total winding length can be ajusted
- Applicable for AC/DC power cord,USB,HDMI etc
- Labors are saved and improving output
Parameter table of product:
Model name: cable tie machine
| Model of machine | SD-168A | Winding speed | 1500-1800PCS/Hour |
| Total winding length | 130mm-210mm | Normal Head length | MAX.50mm |
| Normal Tail length | More than 120mm | Voltage | AC220V/50HZ |
| Length of cable tie | Can be adjusted | Pressure of air source | 4.5-7.5KG |
| Number of turns for tie | Can be adjusted | Dimension | 1300mm*1550mm*1700mm |
| Weight | 480KG |
Strong Points:
- Safty----touch screen operation
- High Capacity----without respite work, Six turntable
- Competitive Price
- Simple and convenient
- Touch-screen operation, PLC system control
Products show:
Processing procedure:
- Our products achived approval CE certificate and our factory passed through ISO9001.
- Advise the right model according to customer's requirements
- Provide samples testing before placing order.
- All machine will be adjusted well and can provide training service at our factory.
- After inspection by customer come to our factory, then will be shipped.
- With free spare parts, tool case, english instructions.
- We send the shipment in FOB term.However,the terms of CIF are acceptable which depends on preference of clients.
- Standard Woodencase Packaging with fumigation inspection certificate.
- Provide picture and video inspection, also welcome customer come to our factory for inspection.
- Every machine must be adjusted and inspected well can be shipped out.
