Quick Details
-
Brand Name:
-
SENTEC
-
Model Number:
-
SFLS500
-
Product Name:
-

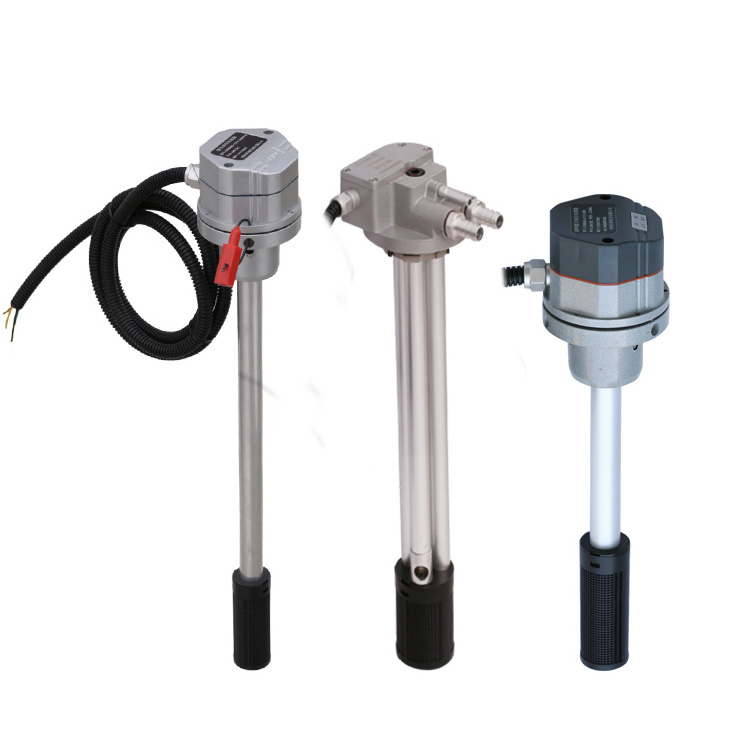

Truck Tanker Car Capacitive Fuel Oil Level Sensor
-
Range:
-
100~1400mm
-
Accuracy:
-
±1%FS
-
External interface:
-
carrier communication
-
Power supply:
-
provided by the modem Note: Valid range
-
working temperature:
-
-35 ° C ~ 80 ° C
-
Installation method:
-
directly replace the original car sensor
-
Probe diameter:
-
12 , 16 , 25mm
-
Protection level:
-
IP65
-
Keywords:
-
vehicle oil level sensor, oil level transmitter
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1YEAR
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
SENTEC
-
Model Number:
-
SFLS500
-
Product Name:
-
Truck Tanker Car Capacitive Fuel Oil Level Sensor
-
Range:
-
100~1400mm
-
Accuracy:
-
±1%FS
-
External interface:
-
carrier communication
-
Power supply:
-
provided by the modem Note: Valid range
-
working temperature:
-
-35 ° C ~ 80 ° C
-
Installation method:
-
directly replace the original car sensor
-
Probe diameter:
-
12 , 16 , 25mm
-
Protection level:
-
IP65
-
Keywords:
-
vehicle oil level sensor, oil level transmitter
The SFLS500 series oil volume sensor is based on the principle of radio frequency capacitance measurement and adopts a unique technology to realize automatic calibration. It is not affected by temperature and medium changes, and has high measurement accuracy and strong anti-interference ability. This technology fifills the domestic gap and is at the international leading level.It can be installed in various occasions to accurately measure the oil level of gasoline, diesel, hydraulic oil and other weakly corrosive liquids.
We has made a major breakthrough in the field of capacitive digital sensor research. Through the unremitting efforts of
engineers and technicians, it has made up for the shortcomings of traditional sensors such as low measurement accuracy, high environmental requirements and poor product stability. It has realized automatic calibration and is not affected by temperature and medium changes, filling the gap in the industry, and constantly Strive for high precision, intelligence and miniaturization.
We has made a major breakthrough in the field of capacitive digital sensor research. Through the unremitting efforts of
engineers and technicians, it has made up for the shortcomings of traditional sensors such as low measurement accuracy, high environmental requirements and poor product stability. It has realized automatic calibration and is not affected by temperature and medium changes, filling the gap in the industry, and constantly Strive for high precision, intelligence and miniaturization.
|
Working voltage
|
DC 5V/ DC 12V / DC 24V
|
|
Detection range
|
100mm～1400mm
|
|
Pressure range
|
-0.1MPa～0.1MPa
|
|
Probe diameter
|
Φ16mm
|
|
Working temperature
|
-35℃～75℃
|
|
Probe temperature resistance
|
-50～150℃
|
|
Fixed mode
|
Thread installation M20 × 1.5 / flange installation
|
|
Explosion proof grade
|
Ex iaⅡC T6 Ga
|
|
Accuracy class
|
1.0
|
|
Digital output
|
RS232/RS485/CAN/TTL/ Current: 4 ~ 20mA/ Voltage: 0 ~ 3.3V, 0 ~ 5V, 0 ~ 10V
|
FEATURES
* The use of military components makes the product more stable, stronger anti-interference ability, and can be adapted to harsher environments.
* Multiple signal output, compatible with all brand terminal equipment
* All-metal structure, sturdy and durable, not afraid of being beaten, basically no requirement for environmental conditions
* Using invention and utility model patented technology with independent intellectual property rights, the product is
automatically calibrated and is not affected by temperature and medium, and it is suitable for any occasion.
* The product has no moving parts, and the failure rate is 0.3‰, which is the lowest failure rate among similar products.
* Using radio frequency capacitance tomography technology, the measurement accuracy is high, and the accuracy can reach 0.5 level, which meets the needs of customers for high-precision liquid level monitoring equipment.
* The use of military components makes the product more stable, stronger anti-interference ability, and can be adapted to harsher environments.
* Multiple signal output, compatible with all brand terminal equipment
* All-metal structure, sturdy and durable, not afraid of being beaten, basically no requirement for environmental conditions
* Using invention and utility model patented technology with independent intellectual property rights, the product is
automatically calibrated and is not affected by temperature and medium, and it is suitable for any occasion.
* The product has no moving parts, and the failure rate is 0.3‰, which is the lowest failure rate among similar products.
* Using radio frequency capacitance tomography technology, the measurement accuracy is high, and the accuracy can reach 0.5 level, which meets the needs of customers for high-precision liquid level monitoring equipment.
Certifications
Packing&Shipping
Q:What kind of products do you offer ?
A:SenTec supply pressure sensors, level sensors, temperature sensors , fiow sensors and environment sensors. Export more than 70+countries.
SFLS500 100-1400mm Truck Tanker Car Capacitive Fuel Oil Level Sensor
Q:Could I get samples?
A:Yes,we have half-stock ready products for customized sample.
SFLS500 100-1400mm Truck Tanker Car Capacitive Fuel Oil Level Sensor
Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX, CE and ROSH ect.
SFLS500 100-1400mm Truck Tanker Car Capacitive Fuel Oil Level Sensor
Q:What is the delivery time?
A:For standard specification,delivery time 5-7days; For customized specification 10-20days.
SFLS500 100-1400mm Truck Tanker Car Capacitive Fuel Oil Level Sensor
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Trade Assurance.
SFLS500 100-1400mm Truck Tanker Car Capacitive Fuel Oil Level Sensor
Q: What is the warranty for your product ?
A: Warranty: 12-24Month, Lifetime maintenance
SFLS500 100-1400mm Truck Tanker Car Capacitive Fuel Oil Level Sensor
Q. How can l get the quotation or send my inquiry to?
A. Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.
1. What is the Measuring medium? Water, oil or others.
2. How about Measuring range: 0-5m or..?
3.What would be the processing pressure and temperature？
4. Which signal output:4-20mA, RS485 or..?
5. Require quantity?
The specific price is subject to the parameters, please contact us for the quotation
