Quick Details
-
Model Number:
-
KYN28A-12
-
Product name:
-

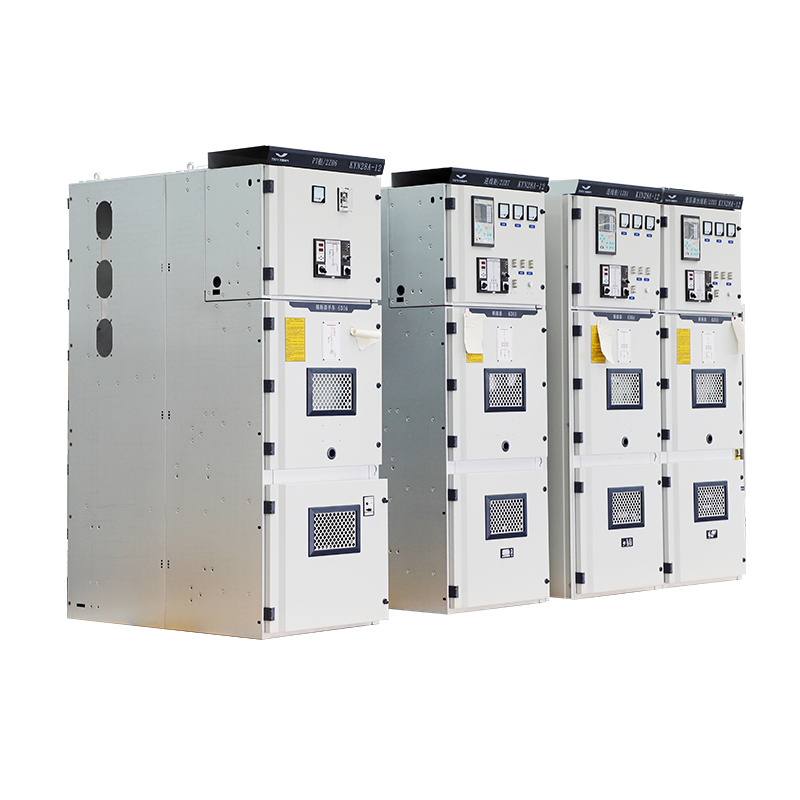

KYN28A-12 (GZS1-12) Indoor AC Metal Clad Intermediate Switchgear
-
Certification:
-
ISO9001,Test report
-
Frequency:
-
50/60Hz
-
Protection Level:
-
IP30/IP32/IP40/IP65/IP66
-
Rated voltage:
-
12kv
-
Color:
-
Customized
-
Feature:
-
Energy Saving
-
Warranty:
-
2 Years
-
Package:
-
Wooden Case
Quick Details
-
Size:
-
1800
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TSTY
-
Model Number:
-
KYN28A-12
-
Product name:
-
KYN28A-12 (GZS1-12) Indoor AC Metal Clad Intermediate Switchgear
-
Certification:
-
ISO9001,Test report
-
Frequency:
-
50/60Hz
-
Protection Level:
-
IP30/IP32/IP40/IP65/IP66
-
Rated voltage:
-
12kv
-
Color:
-
Customized
-
Feature:
-
Energy Saving
-
Warranty:
-
2 Years
-
Package:
-
Wooden Case
Products Description
Equipment Supplies Power Distribution 6.3kv~10kv Ring Main Unit electrical switchgear
HXGN-12 Series High Voltage Switchgear refer to the switchgears used in the ring power distribution network. The structure of the switchgear is simple, and the combination of load switch and fuse is commonly used. It has simple structure, small size and low price. It can improve the power supply parameters and performance, as well as the advantages of power supply safety.
Product Features:
1.HXGN 10KV AC modular SF6 ring network switchgear is a new generation of metal-clad and fully enclosed switchgear with SF6 load switch as the main switch.
2.The whole cabinet adopts air insulation, compact and simple structure, flexible operation, convenient installation, multiple interlocks, equipped with electric mechanism, PT, CT, UPS, etc., which can be used in the distribution network automation system.
Product Details
Product Standard:
GB3906-3.6KV~40.5KV AC Metal Enclosed Switchgear and Control Equipment
GB16926-AC High Voltage Load Switch Fuse Combination Electrical Appliance
Application Channels:
Widely used in industrial and civil cable ring networks and power terminals, as the reception and distribution of electric energy, especially suitable for urban residential area power distribution, small secondary power distribution stations, small opening and closing stations, industrial and mining enterprises, shopping malls, airports, subways, power stations, hospitals, stadiums, railways, tunnels and other places.
Conditions of Use:
The altitude does not exceed 1000m;
Ambient temperature: high temperature 45°C, low temperature -35°C;
Daily temperature difference: no more than 25°C;
The average daily relative humidity does not exceed 95%, and the monthly average relative humidity does not exceed 90%;
Earthquake tolerance: earthquake intensity does not exceed 8°;
