Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
weier
-
Voltage:
-
380v,3p,50hz ( as per customer'scity power)
-
Dimension(L*W*H):
-
20*2.8*2.5 (m)
-
Power (kW):
-
50
-
Weight:
-
10 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
machine name:
-
pvc plastic spiral air hose production line
-
extruder type:
-
single screw extruder for pvc plastic spiral air hose production line
-
pvc spiral hose size:
-
12-50mm
-
intelligent temperature controller:
-
omron from Japan
-
electrical appliances:
-
siemens from Germany
-
frequency converter:
-
TECO fro Taiwan
-
market:
-
all over the world for plastic machine
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
28:1
-
Screw Speed (rpm):
-
78 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
weier
-
Voltage:
-
380v,3p,50hz ( as per customer'scity power)
-
Dimension(L*W*H):
-
20*2.8*2.5 (m)
-
Power (kW):
-
50
-
Weight:
-
10 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
machine name:
-
pvc plastic spiral air hose production line
-
extruder type:
-
single screw extruder for pvc plastic spiral air hose production line
-
pvc spiral hose size:
-
12-50mm
-
intelligent temperature controller:
-
omron from Japan
-
electrical appliances:
-
siemens from Germany
-
frequency converter:
-
TECO fro Taiwan
-
market:
-
all over the world for plastic machine

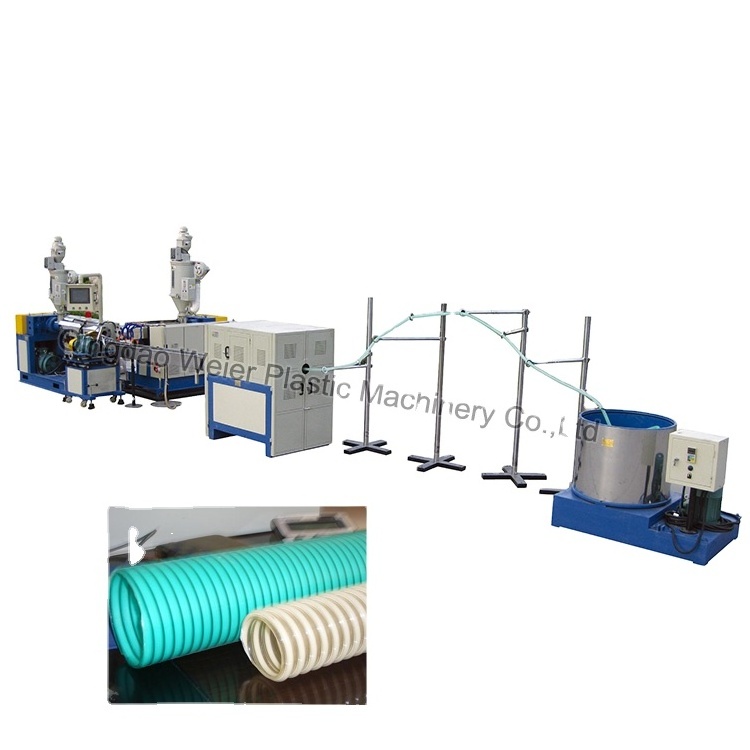

pvc plastic spiral air hose production line/pvc flexible spiral hose machinery
The name of production line : PVC spiral suction hose/ spiral enhanced pipe production line
Supplier assessment reports
Application of PVC spiral strengthened pipe:
PVC spiral strengthened tube, also alled gridding pipe, spiral suction hose, has features such as pressing-resistance, corrosion resistance, negative pressure resistance, bending resistance and good running capacity.
It is suitble for running piping for gas, liquid and powder.
And is mainly applied in Industry, Agriculture, ad water irrigation field,etc.
Machine composition:
| Extruder | 2 sets |
| Shaping machine and Die | 1 set |
| Spraying cooling device | 1 set |
| Electrical control cabinet | 1 set |
Technical specfication:
| type | SJ-45 | SJ-65 |
| extruder | SJ-45*25 | SJ-65*28 |
| pipe diameter | 12-50mm | 64-150mm |
| installed power capacity | 31kw | 58.6kw |
| average energy consumption | 21.7kw | 35.1kw |
Using condition of production line
|
Ⅰ environment condition : |
|
|
Place : |
inside |
|
Temperature : |
85% without condensation |
|
Temperature : |
0-40°C |
|
Ⅱ used condition : |
|
|
Electric condition : |
3 Phase 380V(-10%,+5%) 50HZ |
|
The temperature of circulating water : |
≤20°C pressure ≥0.3Mpa |
|
Compressed air pressure : |
≥0.5Mpa |
Main technical data
1 Suitable material : PVC ( soft and rigid )
2 The technical data of extruder
|
Extruder model |
The material |
Extruding capacity |
Remark |
|
SJ45*25 |
Rigid PVC |
20kg /h |
|
|
SJ45*28 |
Soft PVC |
20kg /h |
|
*the extruding capacity will be changed according to the material and operation condition
About Us:
Qingdao Weier Plastic Machinery Co.,Ltd , the professional manufacturer of plastic machines,which is engaged in macromolecule science,is the director member of WPC (plastic & wood production council of Chinese plastic community)
We cooperated with many domestic universities to develop special plastic machines to meet domestic and foreign customer’s requirement .Now we become the test and industrialization centre of plastic engineering technology research institute of Qingdao Science and Technology University.
At the same time we bring in and absorb advanced processing engineering of foreign plastic machines to realize chain service of technics and machines.
WHY CHOOSE WEIER?
(1) We have experiences in this field since 1980s
(2) We have our production bases for WPC and plastic product in China with large scales, which shows our machine's production power
(3) We have strong technical teams and cooperate with China scientific institution to develop, improve and test our machine, to ensure what customers get are the most reliable machines from China.
(4) We select the most reliable mechanical and electrical parts for our machine with all famous reliable brands, with European CE certificated.
(5) We put our heart into every business with aim of long term cooperation.
(6) We have perfect service system-- Our president is devoting himself to pre-sale, on-sale and after-sale service.
WEIER just do long term business with long term cooperation,
If you are interested in our plastic machine, pls be free to contact with me:
pvc spiral hose making machine/pvc spiral suction hose machine/ pvc spiral reinforced hose extruder machine / pvc spiral reinforced hose production machines / pvc reinforced duct hose machine / pvc spiral gas hose making machine / pvc plastic spiral air hose production line
