Quick Details
-
Circulation Type:
-
Indirect / Closed Loop (Active)
-
Capacity:
-
500
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Jiadele
-
Model Number:
-
JDL-SP solar water heater
-
Name:
-
split solar water heaters
-
Color:
-
as required
-
Tank material:
-
SUS-201,SUS-304,color steel,galvanized steel
-
frame material:
-
stainless steel,aluminium alloy
-
Tube material:
-
HBG 3.3
-
insulating material:
-
55mm polyurethane
-
Packing:
-
wood carton,paper carton
-
Delivery:
-
shipment
-
Port of load:
-
Shanghai
Quick Details
-
Warranty:
-
3 years
-
Application:
-
RV, Outdoor, Hotel, Garage, Commercial, Household
-
Type:
-
Evacuated Tube
-
Circulation Type:
-
Indirect / Closed Loop (Active)
-
Capacity:
-
500
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Jiadele
-
Model Number:
-
JDL-SP solar water heater
-
Name:
-
split solar water heaters
-
Color:
-
as required
-
Tank material:
-
SUS-201,SUS-304,color steel,galvanized steel
-
frame material:
-
stainless steel,aluminium alloy
-
Tube material:
-
HBG 3.3
-
insulating material:
-
55mm polyurethane
-
Packing:
-
wood carton,paper carton
-
Delivery:
-
shipment
-
Port of load:
-
Shanghai
1.Product Description
Solar water tank 500 liter.
CHARACTERISTICS
The upright tank can keep the water temperature at different level.It can heat the top water instantly.The special structure can
prevent from mixing the cold and hot water together.
The tank is located in the building ,the connection pipe between the tank and water tap is very short,so that hot water can be
used instantly and seldom cold water flows out.
The tank is located in the building,the hot water loses less energy than the normal one.

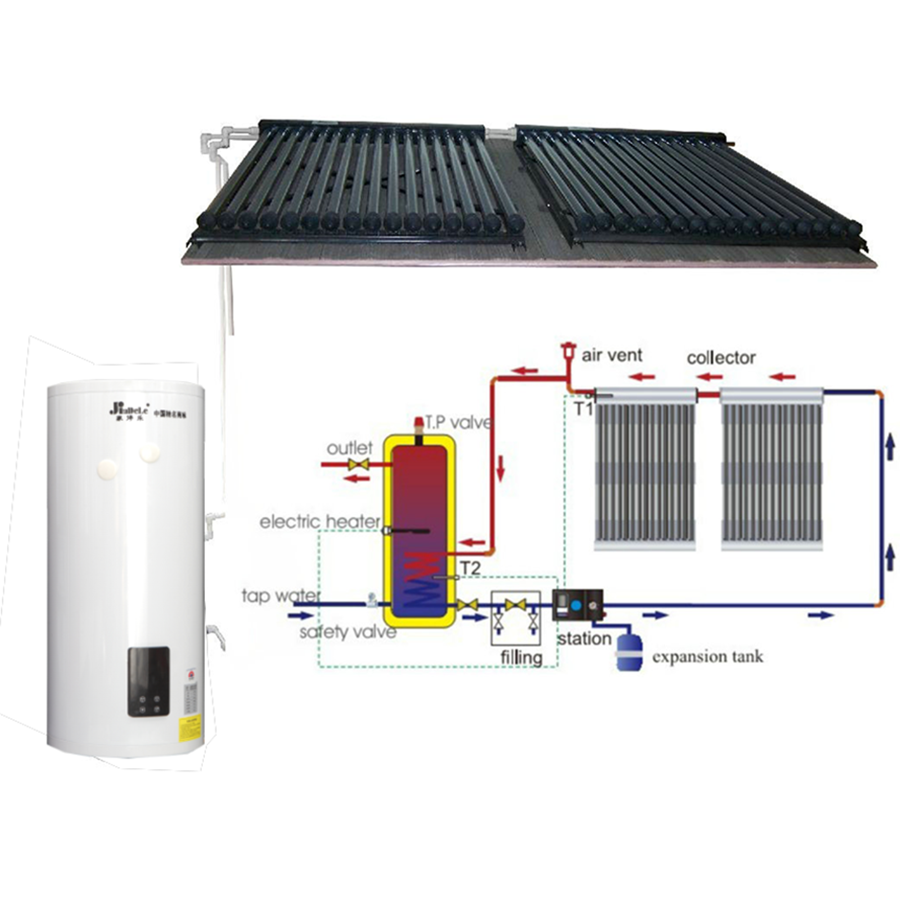

The heater collector and the water tank is separated,that makes the system combine with the building perfectly,which will not
effectthe sightseeing of the building and the environment around.
Back up with electric heater so that in the day without sunshine hot water can also used.
Capacity:100L,150L,200L,260L,300L,400L,500L.
CHARACTERISTICS
The upright tank can keep the water temperature at different level.It can heat the top water instantly.The special structure can
prevent from mixing the cold and hot water together.
The tank is located in the building ,the connection pipe between the tank and water tap is very short,so that hot water can be
used instantly and seldom cold water flows out.
The tank is located in the building,the hot water loses less energy than the normal one.
The heater collector and the water tank is separated,that makes the system combine with the building perfectly,which will not
effectthe sightseeing of the building and the environment around.
Back up with electric heater so that in the day without sunshine hot water can also used.
Capacity:100L,150L,200L,260L,300L,400L,500L.
|
Type
|
Tank
Specification |
Out tank Diameter
xHeight |
Lut tank
Diameter |
Lut tank
Material |
Heat Exchange Area
|
|
JDL-SP100-58/1.8-10(ONE COIL)
|
100L
|
480x1000
|
385
|
SUS304X
1.2TICK |
0.4m2
|
|
JDL-SP150-58/1.8-15(ONE COIL)
|
150L
|
480x1460
|
385
|
|
0.55m2
|
|
JDL-SP200-58/1.8-20(ONE COIL)
|
200L
|
570x1270
|
480
|
|
0.75m2
|
|
JDL-SP250-58/1.8-25(ONE COIL)
|
250L
|
570x1600
|
480
|
|
0.925m2
|
|
JDL-SP300-58/1.8-30(ONE COIL)
|
300L
|
570x1820
|
480
|
|
1.1m2
|
|
JDL-SP400-58/1.8-40(ONE COIL)
|
400L
|
750x1720
|
630
|
|
1.175m2
|
|
JDL-SP500-58/1.8-50(ONE COIL)
|
500L
|
750x1720
|
630
|
|
1.475m2
|
|
JDL-SP150-58/1.8-15(TWO COIL)
|
150L
|
480x1460
|
385
|
|
0.35m2/0.5m2
|
|
JDL-SP200-58/1.8-20(TWO COIL)
|
200L
|
570x1270
|
480
|
|
0.4m2/0.7m2
|
|
JDL-SP250-58/1.8-25(TWO COIL)
|
250L
|
570x1600
|
480
|
|
0.55m2/0.875m2
|
|
JDL-SP300-58/1.8-30(TWO COIL)
|
300L
|
570x1820
|
480
|
|
0.6m2/0.95m2
|
|
JDL-SP400-58/1.8-40(TWO COIL)
|
400L
|
750x1720
|
630
|
|
0.575m2/1.15m2
|
|
JDL-SP500-58/1.8-50(TWO COIL)
|
500L
|
750x1720
|
630
|
|
0.8m2/1.425m2
|
REMARK
Inner Tank :stainless steel SUS 304-1.2mm/porcelain inner tank
Out Tank:painted steel-0.6mm/stainless steel-0.6mm
Insulation:50mm Polyurethane
The inner tank material:SUS304-213;SUS316L stainless steel 1.2mm
The out tank :color steel or SUS304 stainless 0.5mm
The heat insulation material:Polyurethane
The thickness of the insulation:47.5-60mm
The use pressure:<6 bar
The test pressure:10 bar
The accessories:
The temperature and pressure relief valve
The sensor
The copper coil heat exchanger:one or two
The drain pipe
The installation method:vertical
Out Tank:painted steel-0.6mm/stainless steel-0.6mm
Insulation:50mm Polyurethane
The inner tank material:SUS304-213;SUS316L stainless steel 1.2mm
The out tank :color steel or SUS304 stainless 0.5mm
The heat insulation material:Polyurethane
The thickness of the insulation:47.5-60mm
The use pressure:<6 bar
The test pressure:10 bar
The accessories:
The temperature and pressure relief valve
The sensor
The copper coil heat exchanger:one or two
The drain pipe
The installation method:vertical
2.Application
3.More Products
4.Company&Workshop
5.Exhibition&Certifications
6.Packaging&Shipping
7.FAQ
Q:What is your delivery time?
A: 15 working days after receipt of signed PI and down payment.
Q:Which payment methods can you support?
A:BY T/T: 30% as down payment, balance to be paid against the copy of Bill of Lading.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:What is your package ways?
A:Generally, standard products with standard package. Extra charge may be required for other custom requirements such as package
logo printing.
A: 15 working days after receipt of signed PI and down payment.
Q:Which payment methods can you support?
A:BY T/T: 30% as down payment, balance to be paid against the copy of Bill of Lading.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:What is your package ways?
A:Generally, standard products with standard package. Extra charge may be required for other custom requirements such as package
logo printing.
