Quick Details
-
Brand Name:
-
kexlimice
-
Model Number:
-
TUF2000P
-
Name:
-
Portable ultrasonic flowmeter portable type
-
Accuracy:
-
±1%
-
Flow range:
-
0~±10m/s
-
Measuring diameter:
-
DN15~ND6000
-
Temperature measurement:
-
-30~90 Celsius ;-30~160 Celsius
-
Principle:
-
Ultrasonic time difference principle
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
1 years
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
kexlimice
-
Model Number:
-
TUF2000P
-
Name:
-
Portable ultrasonic flowmeter portable type
-
Accuracy:
-
±1%
-
Flow range:
-
0~±10m/s
-
Measuring diameter:
-
DN15~ND6000
-
Temperature measurement:
-
-30~90 Celsius ;-30~160 Celsius
-
Principle:
-
Ultrasonic time difference principle
Product Description
Brief introduction

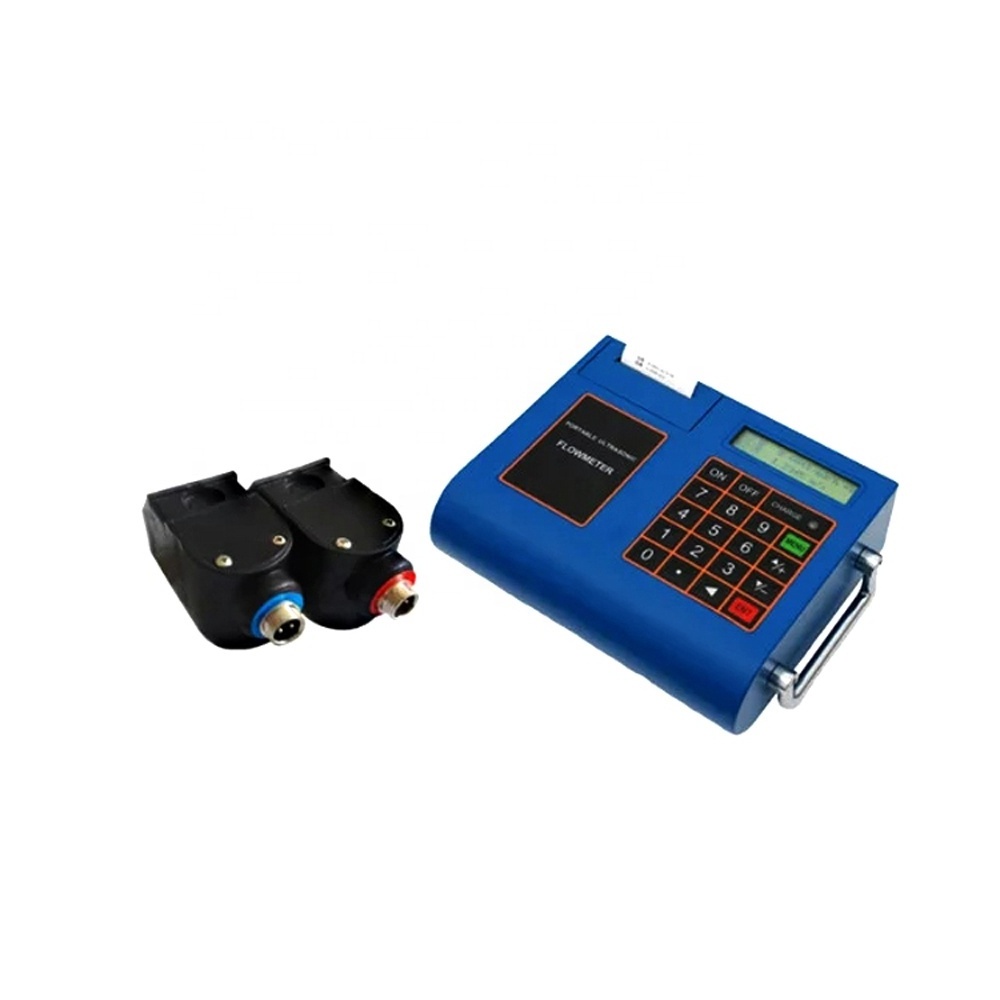

Portable ultrasonic flowmeter portable type = host + clamp-on sensor signal lines + + + tensioner aluminum box + other accessories.Portable ultrasonic flowmeter to achieve a liquid non-contact measurement. The flow sensor installed in the pipe wall to completethe measurement of the flow rate. With a small, easy to carry, accurate measurement features. Built-in printer and SD storage,instant or regular print settings window contents and mass data storage.
Principle: Ultrasonic time difference principle
Portable ultrasonic flowmeter portable type = host + clamp-on sensor signal lines + + + tensioner aluminum box + other accessories.Portable ultrasonic flowmeter to achieve a liquid non-contact measurement. The flow sensor installed in the pipe wall to completethe measurement of the flow rate. With a small, easy to carry, accurate measurement features. Built-in printer and SD storage,instant or regular print settings window contents and mass data storage.
Principle: Ultrasonic time difference principle
Specification
|
Name
|
Portable ultrasonic flowmeter portable type
|
|
Principle
|
Ultrasonic time difference principle, the 4-byte floating point IEEE754
|
|
Accuracy
|
±1%
|
|
display
|
It can be connected to 2 × 10 backlit characters or 2 × 20 character liquid crystal display Western support, Britain, and Italy
language. |
|
Signal output
|
1 channel 4 ~ 20mA current output, resistance 0 ~ 1k. 0.1% accuracy (optional accompany)
|
|
|
1 Road OTC pulse output (pulse width 6 ~ 1000ms, default 200ms)
|
|
|
1 relay output
|
|
Signal Input
|
3-way 4 ~ 20mA current input, accuracy of 0.1, the pressure can be collected, 'temperature level and other signals
|
|
|
Connectable PT100 platinum resistance, to achieve heat measurement
|
|
Data interface
|
Isolated RS485 serial interface, the meter can be upgraded through PC computers, supporting protocols such as MODBUS.
|
|
data record
|
Thermal printer, external SD card capacity up to 2G.
|
|
Pipe
|
Steel, stainless steel, cast iron, aluminum, PVC, glass, steel and all other dense pipeline, allowing lining.
|
|
Tube diameter
|
15~6000mm
|
|
Straight pipe
|
Sensor installation best to meet: upstream 10D, downstream 5D, away from the pump outlet 30D (D is pipe diameter)
|
|
species
|
Water, sea water, industrial water, acid, alcohol, beer, all kinds of oil can be conducted ultrasonic single homogeneous liquid
|
|
temperature
|
-30~160℃
|
|
Turbidity
|
10000pm and small bubbles content
|
|
Velocity of flow
|
0~±10m/s
|
|
temperature
|
Host: -20 to 60 degrees Celsius, sensor: -30 to 160 degrees Celsius
|
|
humidity
|
Host 85% RH, sensor protection class IP67
|
|
power supply
|
Section 8 built-in capacity 2000mAH 1.2V rechargeable NI-MH batteries, fully charged each time work for more than 20 hours.
Election accompany 4 ~ 20mA output signal, it can work for eight hours AC90 ~ 260V power adapter, sustainable constantly measured. |
|
Power
|
1.5W
|
