Quick Details
-
Warranty:
-
1 Years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
upsztec
-
Model Number:
-
XRc
-
Operation System:
-
Pure Android 9.0
-
GPS:
-
Built-in
-
CPU:
-
AC8227L 1.2 GHz Cortex A7 Quad-Core
-
Screen:
-
7'' Touch Screen
-
Dual zone function:
-
GPS Working
-
OSD Language:
-
60 countries language
-
Certification:
-
CE FCC RoHs E-mark
Quick Details
-
Screen Size:
-
7"
-
Resolution:
-
1024*600
-
Function:
-
GPS, Stereo, CarPlay
-
Warranty:
-
1 Years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
upsztec
-
Model Number:
-
XRc
-
Operation System:
-
Pure Android 9.0
-
GPS:
-
Built-in
-
CPU:
-
AC8227L 1.2 GHz Cortex A7 Quad-Core
-
Screen:
-
7'' Touch Screen
-
Dual zone function:
-
GPS Working
-
OSD Language:
-
60 countries language
-
Certification:
-
CE FCC RoHs E-mark

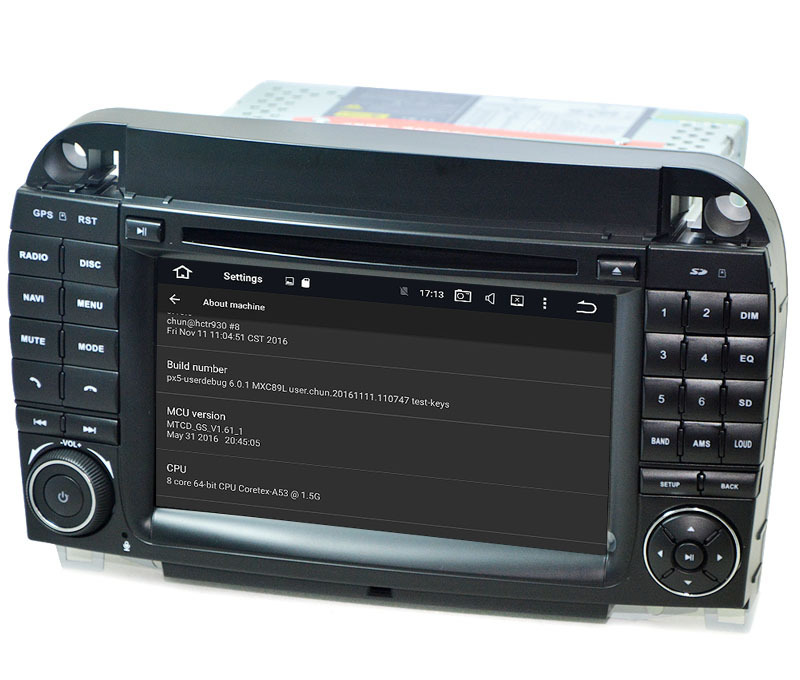

Android 9.0 system 1024 * 600 HD 7 inch DVD player for Benz S Class W220 CL-Class W215 4+64GB 8coer
Screen Pixel : 1024*600
OS: Android 9 system
CPU: Rockchip PX5 Cortex A53, 8 Core
Main Frenqency:1.5GHz
RAM:SAMSUNG 4GB DDR3
Nand Flash : 32GB
Capacitive multi-touch screen
GPS+Radio+AUX IN+DVR+Easy Connect
( internet connection by , 3 ways call)
AHD rear view camera input
Open it in courier's audience, check goods, if any damage or missing.
If no problem, please sign in.
If have problem, please ask the courier to proof for you and remember take photo of every details. Ask them to make a record file for you and contact us as soon as possible.
Specification :
| System and Hardware Parameters | |||
| OS | Android 9.0 System | TFT drive IC | Rockchip PX5 |
| CPU | Rockchip PX5 ,Cortex A53, Octa Core | Loader | SHINNY SD-28EF-PJJ-53X |
| Main Frenqency | 1.5GHz | Pick up | EP-HD860XCF |
| RAM | SAMSUNG DDR3 , 2GB/4GB | Video Decoder | SUNPLUS 8202VGQ |
| Flansh | 16GB/32GB/64GB | Motor drive IC | AMTEK-AM5888S |
| DSP | BU32107 | DVD decoder IC | Sunplus 8202VGQ |
| CarPlay | Optional (built in) | EQ IC | ROM BD37033FV-ME2 |
| Android AUTO | Optional (built in) | Audio IC | ROM BD37033FV-ME2 |
| 4G network | Optional (built in) | MCU IC | STM8S207R8 |
| Radio | NXP 6686 | Power IC | RT7291A |
|
4.2 (RD210)
internet connection by , 3 ways call,Phone power and signal display |
Working Temperature | -20℃-+80℃ | |
| FC6000T | DVR | USB Camera, Optional (external) | |
| Touch Screen | Capacitive and multi-touch screen | DAB BOX | SHINWA DB-MF03 |
| LCD Screen | Hanstar Screen | OBD | Optional (external) |
| Amplifer IC | TDA 7851 | TPMS | Optional (external) |
| Power supply | 4*50W | DVB-T(MPEG4) | Optional (built in) |
| GPS | JUMPSTAR JS-U710 | ISDB-T(Full SEG) | Optional (built in) |
| WIFI | BL-8188-EU1 | Rear view | AHD rear view camera input |
| Easy Connect | Support | ||
| Multi-media Parameters | Radio Parameters | ||
| Music Format | MP3,WMA,AAC,RM,LFAC etc | Frenqency Range | FM:76.0MHz-108.0MHz |
| Video Format | MPEG-1/2/4,H264,H263,VC1,RV,RMVB,DivX,Sorenson SparK,Spark,VP8,AVS Stream… | Frenqency Range | AM: 522KHz-1620KHz |
| Picture Format | JPG/BMP/JEPG/GIF/PNG | Country | China,Europe,Eastern,Europe,Russia,USA1,USA2,Japan |
| DVD Parameters | Amplifer Parameters | ||
| Vidio output range | 1.0V-1.2V(75Ω) | Test Voltage | 13.8V |
| Compatible Disc | DVD/DIVX/MP4/MP3/MP2/VCD | Max output power | 4*50W |
| GPS Parameters | WIFI Parameters | ||
| Operation system | Android 9.0 System | Power supply | Vcc_3.3V |
| Support Map | Android 9.0 Map | Suppoted Protocol/standard | IEEE802.11B/g/n compatible WLAN |
| Main Frenqency | 1.5GHz | Interface type | USB2.0 |
| Map Solution | 800*480/1024*600 | Frequency | 2.4-2.484GHz |
| Modulation | OFDM/DBPSK/DQPSK/CCK | ||
| RF Power | 15dBM |
