(iMOD60) Cost effective hls to udp gateway iptv dvb-c qam modulator with ip to rf modulator 16 channels
(iMOD60) Cost effective hls to udp gateway iptv dvb-c qam modulator with ip to rf modulator 16 channels
(iMOD60) Cost effective hls to udp gateway iptv dvb-c qam modulator with ip to rf modulator 16 channels
(iMOD60) Cost effective hls to udp gateway iptv dvb-c qam modulator with ip to rf modulator 16 channels
(iMOD60) Cost effective hls to udp gateway iptv dvb-c qam modulator with ip to rf modulator 16 channels
(iMOD60) Cost effective hls to udp gateway iptv dvb-c qam modulator with ip to rf modulator 16 channels
(iMOD60) Cost effective hls to udp gateway iptv dvb-c qam modulator with ip to rf modulator 16 channels
(iMOD60) Cost effective hls to udp gateway iptv dvb-c qam modulator with ip to rf modulator 16 channels

(iMOD60) Cost effective hls to udp gateway iptv dvb-c qam modulator with ip to rf modulator 16 channels

FOB Reference Price: Get Latest Price
≥2 Sets
US $1000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Input:
IP over 8 Data ports
Output:
RF/IP/TS
IP Protocol:
HTTP, UDP, RTP, RTSP, HLS, RTMP, SRT
RF OUT:
16QAM DVB-C/8*DVB-T/6*ISDBT/8*ATSC RF out
Scrambling:
Only for DVB-C
Management:
web-based NMS management
Multiplexing:
support
Application:
IPTV Gateway Controller& Control
Function:
scrolling caption, welcome words, boot image boot video
Product name:
ip to isdb-t modulator

Quick Details

Place of Origin:
Zhejiang, China
Brand Name:
Dibvision
Model Number:
iMOD60
Input:
IP over 8 Data ports
Output:
RF/IP/TS
IP Protocol:
HTTP, UDP, RTP, RTSP, HLS, RTMP, SRT
RF OUT:
16QAM DVB-C/8*DVB-T/6*ISDBT/8*ATSC RF out
Scrambling:
Only for DVB-C
Management:
web-based NMS management
Multiplexing:
support
Application:
IPTV Gateway Controller& Control
Function:
scrolling caption, welcome words, boot image boot video
Product name:
ip to isdb-t modulator
Product Description
hls http rtmp ip to isdb-t modulator 6 carrier option DVB-C/DVB-T/ATSC output

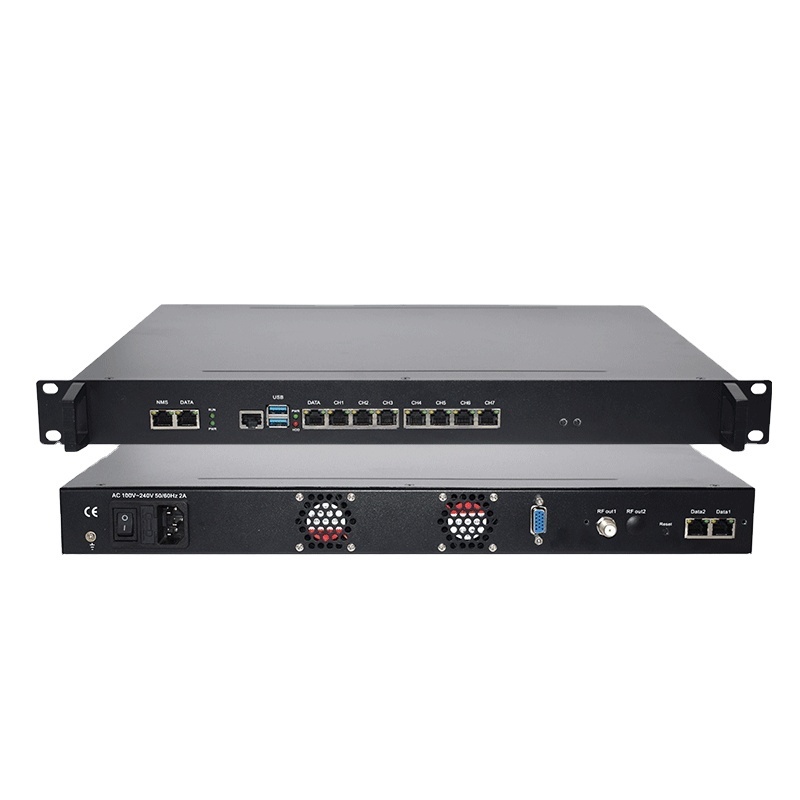

iMOD60 is a powerful, yet low power consumption, rack-mount IPTV Modulator Controller& Control Interface for 24/7 operation. Two independent modules design , one IPTV gateway module enables integrators and operators to select from various protocol to customise operation and on-going service, and the other modulator module which supports IP in and IP out and DVB-C/ DVB-T/ISDBT/ATSC RF out, and it can receive gateway source directly.

Contact us

Sales Manager: Sophie Chen

Skype: dibdvb08

Email: sophie at dibdvb.com

Phone/whatsapp/Wechat: +86 13429126900

Features

  • low power consumption, rack-mount design

  • Two independent modules, IPTV gateway module and IP modulator module

  • IP in (HTTP, UDP, RTP, RTSP and HLS) to RF out in one device

    Gateway Module

  • 8 Data ports:

  • First Data port: IP out over HTTP, UDP (SPTS), HLS and RTMP

  • Data CH1~CH7 ports: IP in over HTTP, UDP (SPTS), RTP (SPTS), RTSP and HLS

  • IP out over HTTP, HLS and RTMP (Unicast)

  • Transmitting IP to modulator module through Data port

  • adding scrolling caption, welcome words, boot image and boot video (only applicable to IP out application)

  • Support downloading Dibsys IPTV APK directly from this device

    Modulator Module

  • IP input over UDP/RTP through Data/Data 1/2 port

  • IP output over UDP/RTP/RTSP through Data 1/2 port

  • Support 16*DVB-C/8*DVB-T/6*ISDBT/8*ATSC RF out

  • Receiving IP from gateway module directly through Data port

  • TS files uploading through Web management

  • IP anti- jitter function

  • Control the 2 modules separately via web-based NMS management

Application

  • IPTV Gateway Controller& Control

  • Distribute IP source to All TVs Over Existing TV Coax

  • Contribution and Distribution

  • Protocol conversion scenarios

Specification

Modulator module

QAM Modulating

Modulation Standard

DVB-C EN300429

Num of QAM Channels

16  Non-adjacent Carrier within 192M bandwidth

QAM  Encoding

ITU-T J.83 Annex A (DVB), Annex B

Symbol Rate

5.0~7.0Msps, 1Khz stepping

RF output level

-20~+10dBm, 0.1dB step

MER

≥ 40dB

FEC

RS (204, 188)

Bandwidth

8M (Annex A), 6M (Annex B)

QAM Constellations

16/32/64/128/256QAM(Annex A)

64/256QAM(Annex B)

DVB-T Modulating

Modulation  Standard

EN300744

Num of Cofdm  Channels

8 Non-adjacent Carrier within 192M bandwidth

FFT mode

6Mhz, 7Mhz, 8Mhz

Bandwidth

by automatically and manually

Constellation

QPSK, 16-QAM, 64-QAM

PSI/SI

PSI/SI table auto-generation

Guard Interval

1/4, 1/8, 1/16, 1/32
FEC Code 1/2, 2/3, 3/4, 5/6, 7/8

MER

≥ 40dB

RF frequency

50~960MHz, 1kHz stepping

RF output level

-20~+10dBm, 0.5dB step

ISDB-T Modulating

Modulation Standard

ARIB STD-B31

Num of Carrier Channels

6 Non-adjacent Carrier within 192M bandwidth

Bandwidth

6M

Constellation

QPSK, 16QAM, 64QAM

Guard Interval

1/32, 1/16, 1/8, 1/4

Transmission Mode

2K, 4K, 8K

Code rate

1/2, 2/3, 3/4, 5/6, 7/8

MER

≥ 40dB

RF frequency

50~960MHz, 1kHz stepping

RF output level

-20~+10dBm, 0.5dB step

ISDB-T Modulating

Modulation Standard

ARIB STD-B31

Num of Carrier Channels

6 Non-adjacent Carrier within 192M bandwidth

Bandwidth

6M

Constellation

QPSK, 16QAM, 64QAM

Guard Interval

1/32, 1/16, 1/8, 1/4

Transmission Mode

2K, 4K, 8K

Code rate

1/2, 2/3, 3/4, 5/6, 7/8

MER

≥ 40dB

RF frequency

50~960MHz, 1kHz stepping

RF output level

-20~+10dBm, 0.1dB step

ATSC Modulating

Modulation Standard

ATSC A/53

Num of 8vsb Channels

8 Non-adjacent Carrier within 192M bandwidth

Constellation

8VSB

Bandwidth

6MHz

FEC

RS(208 188)+Trellis

MER

≥ 40dB

RF frequency

50~960MHz, 1kHz stepping

RF output level

-20~+10dBm, 0.1dB step

Input

DVB-C

512 *IP (MPTS/SPTS) input over UDP/RTP, 2 *100/1000M Ethernet Port

DVB-T

256 *IP (MPTS/SPTS) input over UDP/RTP, 2 *100/1000M Ethernet Port

ISDB-T

192 *IP (MPTS/SPTS) input over UDP/RTP, 2 *100/1000M Ethernet Port

ATSC

256 *IP (MPTS/SPTS) input over UDP/RTP,

2 *100/1000M Ethernet Port

Multiplexing

DVB-C

DVB-T/ATSC

ISDB-T

Input channel

512

256

192

output channel

16

8

6

Max PIDs

180 per channel

Functions

PID remapping(auto/manually optional)

PCR accurate adjusting

S crambling (Only for DVB-C)

Max simulscrypt CA

4

Scramble Standard

ETR289, ETSI 101 197, ETSI 103 197

Connection

Local/remote connection

IPTV gateway module

In put

CH1 ~ CH7(1000M)

over HTTP, UDP(SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS

TS files uploading through Web management

I P Output

Data port (1000M)

over HTTP (Unicast), UDP(SPTS, Multicast) HLS and RTMP (Program source should be H.264 and AAC encoding)

SYSTEM

Memory

4G

Solid-State Disk(SSD)

16G

Channel switching time

HTTP (1-3s), HLS (0.4-0.7s)

Function

scrolling caption, welcome words, boot image

boot video (only in IP out application and the

STB/Android TV installed DIBSYS IPTV APK)

maximum 150 terminals

Play programs with APK downloaded android STB and TV

Management

web-based NMS

max 80 HD/SD programs

Bitrate 2Mbps each programs

HTTP/RTP/RTSP/HLS is converted into UDP (Multicast), the actual application shall prevail, and suggest maximum 80% CPU utilization

Ts Output
16 *DVB-C/ 8*DVB-T/ ATSC)/ 6*(ISDBT IP output over UDP/RTP/RTSP,

unicast/multicast, 2*100/1000M Ethernet Ports (Data 1/2)

Environment

Power Supply

AC 100V±10%  50/60Hz or AC 220V±10%, 50/60Hz

Dimension

482mm×324mm×44mm

Operating temperature

-10 ~ 50℃

Storage temperature

-10 ~ 75℃

Humidity

10 ~ 90% non-condensed

Weight 6KG
