Quick Details
-
Brand Name:
-
netLINK
-
Use:
-
FTTH
-
Warranty Time:
-
1year
-
Product name:
-

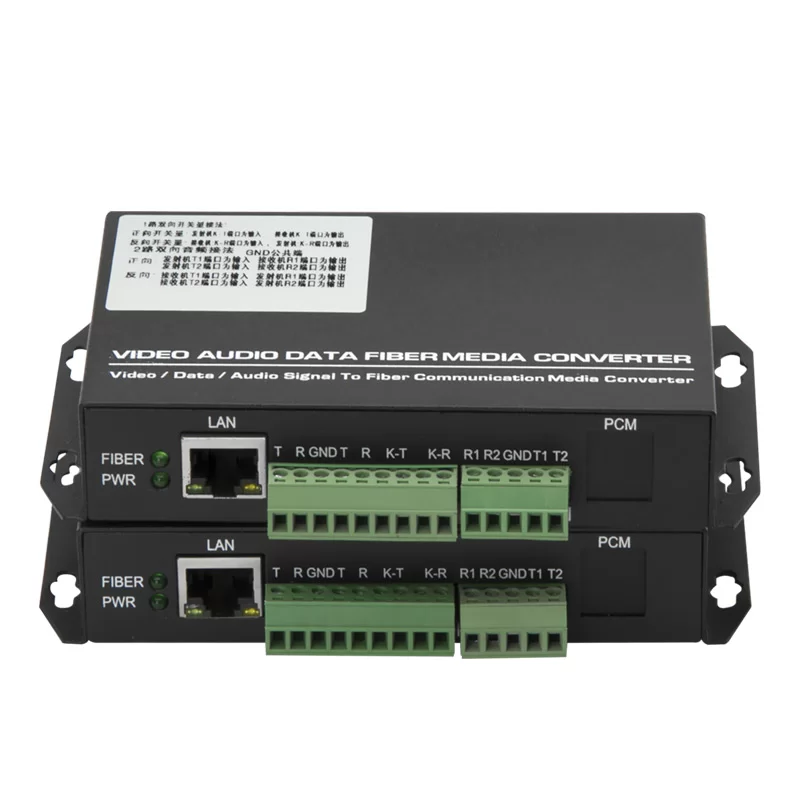

Fiber optic media converter
-
Application:
-
FTTH
-
Wavelength:
-
1310/1550nm
-
Connector Type:
-
SC
-
Distance:
-
25KM
-
Certification:
-
CE RoHS FCC
-
Operating temperature:
-
0 ~+80
-
OEM:
-
Accpet
Quick Details
-
Type:
-
Fiber optic media converter
-
Model Number:
-
RS485
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
netLINK
-
Use:
-
FTTH
-
Warranty Time:
-
1year
-
Product name:
-
Fiber optic media converter
-
Application:
-
FTTH
-
Wavelength:
-
1310/1550nm
-
Connector Type:
-
SC
-
Distance:
-
25KM
-
Certification:
-
CE RoHS FCC
-
Operating temperature:
-
0 ~+80
-
OEM:
-
Accpet
Products Description
Product Paramenters
|
Parameters
|
Specifications
|
|
Access mode
|
10/100Mbps Gigabit Ethernet
|
|
Standard
|
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit
thernet,IEEE802.1qVLAN, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
|
Wavelength
|
1310nm
|
|
Transmission distance
|
Dual-fiber single-mode: 10/20KM(120Km);Category-5 twisted pairs: 100m
|
|
Port
|
One RJ45 port: Connected to STP/UTP category-5 twisted pairs;One fiber port: 1000M LC
|
|
Conversion mode
|
Medium conversion
|
|
Delay
|
no more than 10μs
|
|
Bit error rate
|
no more than 1/1000000000
|
|
MTBF
|
100,000 hours
|
|
Power
|
DC 12V
|
|
Power consumption
|
2.5W
|
|
Operating temperature
|
-20~70°C
|
|
Operating humidity
|
5%~90%
|
|
Storage Temperature
|
Temperature -40℃ to＋70℃
|
|
Storage humidity
|
5%~90% (non-condensing)
|
|
Dimensions
|
93mm(L)*70mm(W)*25mm(H)/ long*wide*high
|
