Quick Details
-
Warranty:
-
1 YEAR
-
Certification:
-
CE
-
Output Voltage:
-
24V 48V
-
rotor diameter:
-
2.15m
-
Capacity:
-
1kw
-
Start wind speed:
-
2.5m/s
-
Rated power:
-
1kw
-
Rated Voltage:
-
24V/48V
-
Start-up wind speed:
-
2.5m/s
-
Blades number:
-
3
-
Rated wind speed:
-
12m/s
-
Blade Material:
-
fiberglass reinforced composite
-
Wheel Diameter:
-
2.15
-
swept area:
-
3.45
-
Pole connection:
-
Flange
-
Flange dimension:
-
DN40
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RexCo
-
Model Number:
-
RC-1000-A
-
Warranty:
-
1 YEAR
-
Certification:
-
CE
-
Output Voltage:
-
24V 48V
-
rotor diameter:
-
2.15m
-
Capacity:
-
1kw
-
Start wind speed:
-
2.5m/s
-
Rated power:
-
1kw
-
Rated Voltage:
-
24V/48V
-
Start-up wind speed:
-
2.5m/s
-
Blades number:
-
3
-
Rated wind speed:
-
12m/s
-
Blade Material:
-
fiberglass reinforced composite
-
Wheel Diameter:
-
2.15
-
swept area:
-
3.45
-
Pole connection:
-
Flange
-
Flange dimension:
-
DN40

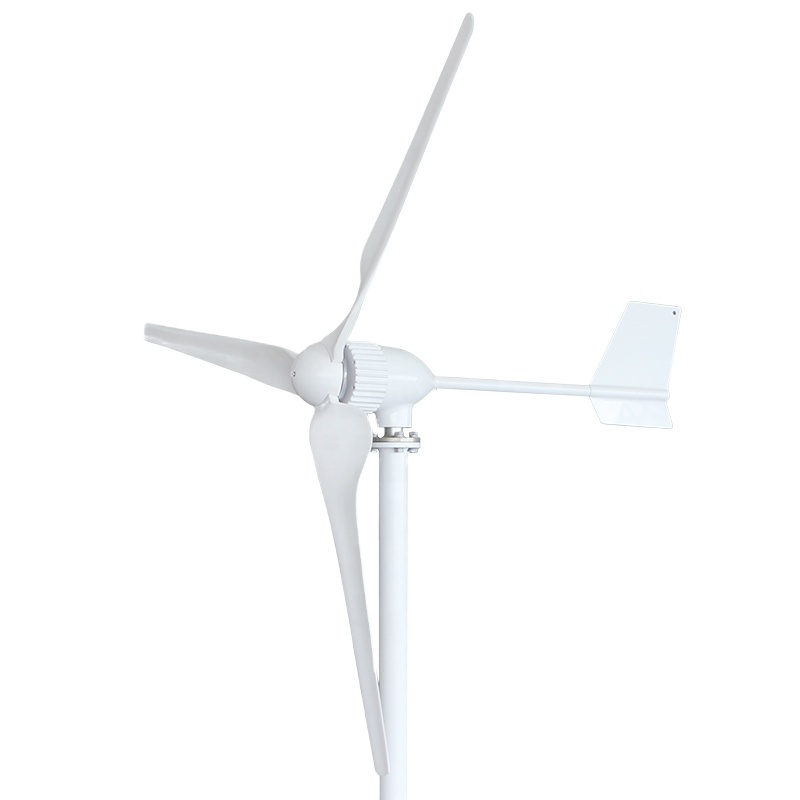

1kw wind turbine efficient home wind turbine generator wind 1000 w for sale specification: 1kw wind turbine efficient home wind turbine generator wind 1000 w for sale
|
Model |
RC-1000-A |
|
Rated Output |
1000W |
|
Peak Output |
1050W |
|
Rated Voltage |
24/48V AC |
|
Start-up Wind Speed |
2.5m/s |
|
Cut-in Wind Speed |
3m/s |
|
Rated Wind speed |
12m/s |
|
Survival Max. wind |
45m/s |
|
Number of Blades |
3 |
|
Rotor Diameter |
2.15m |
|
Swept Area |
3.63 |
|
Blade Material |
fiberglass reinforced composite |
|
Generator Type |
3-phase PMA with high performance Neodymium Magnets |
|
Generator case |
Casting aluminum alloy |
|
Controller Type |
PWM |
|
Over speed control |
Automatically adjust windward direction |
|
Net Weight |
28kg |
|
Tower Connector |
Flange or Hoop |
|
Flange Size * |
DN40 |
|
Tower Type * |
Guy Cable Tower |
|
Tower Size * |
3mX2, Φ76-3mm |
|
Working Temp. range |
from -40°C to 60°C |
|
Product Life |
15 years |
|
Warranty |
1 years |
|
Applications |
solar & wind hybrid lighting, off-grid power system etc. |
|
Measurement |
132*40*30 cm |
|
Gross Weight |
31kg |
