Quick Details
-
Screw Speed (rpm):
-
80 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
QIANGSHENG
-
Voltage:
-
220V, 380V, 400V, 415V, 440V, 480V
-
Dimension(L*W*H):
-
Pipe Extrusion Line
-
Power (kW):
-
37
-
Weight:
-
8000 KG
-
Pipe diameter:
-
20-63mm
-
Extruder:
-
SJ65/30
-
Capacity:
-
70-100 Kg/hr
-
Marketing Type:
-
Hot Product 2022
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
30:1
-
Screw diameter (mm):
-
65mm
-
Screw Speed (rpm):
-
80 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
QIANGSHENG
-
Voltage:
-
220V, 380V, 400V, 415V, 440V, 480V
-
Dimension(L*W*H):
-
Pipe Extrusion Line
-
Power (kW):
-
37
-
Weight:
-
8000 KG
-
Pipe diameter:
-
20-63mm
-
Extruder:
-
SJ65/30
-
Capacity:
-
70-100 Kg/hr
-
Marketing Type:
-
Hot Product 2022
Product Overview
PP-R PE Pipe Production Line

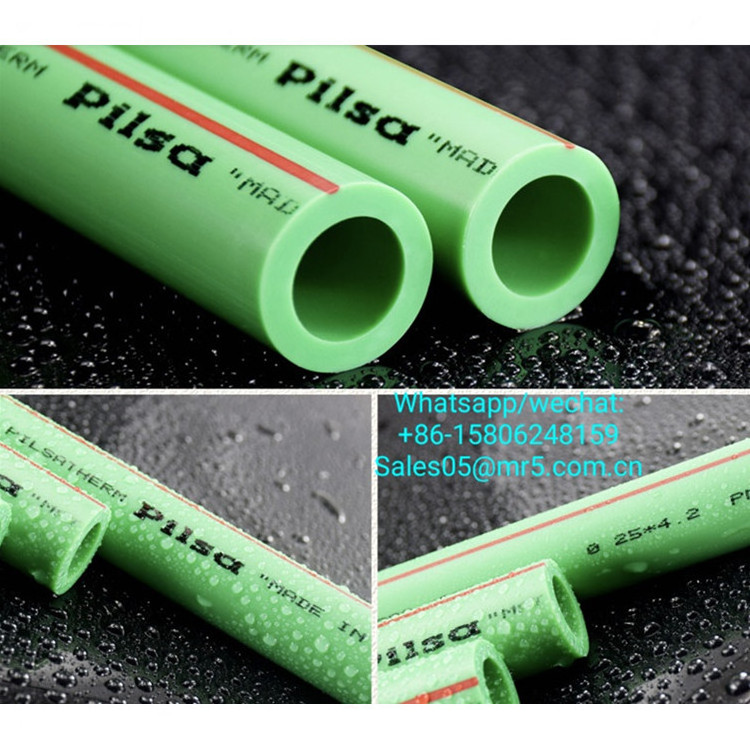

The ppr pipe extrusion line is used to produce PPR pipe. Fiber glass PPR pipes with diameters from 20 to 160mm which are popularly used as hot and cold supply in civil water supply.
High efficiency PPR, PPRC, PP pipes are widely used in the uptown apartment and village cables protection, hot or cold water supplying, house heating system including flooring heating, wall heating and radiant, central air conditioning and industrial liquids transportation.
Application
1. PP-R Hot & Cold water supply pipe
2. Building heating system pipe, including flooring heating, wall heating and radiating system pipe
3. Central air conditioning system pipe
4. Industrial liquids transportation pipe.
5. Municipal water supply, water drain, gas supply pipe
6. Urban and rural drinking water pipelines
7. Agricultural irrigation pipe
8. Post and Telecommunications line pipe
9. Electrical Power cable wire protection pipe
10. Industrial liquids transportation pipe
11. Food and chemical industry pipe
PRODUCT SPECIFICATIONS
|
Ф20-63mm PP-R Pipe Production Line
|
110-200mm PVC Pipe Production Line
|
|
|
|||
|
NO.
|
Machine Name
|
Model
|
Qty.
|
|||
|
1.
|
Auto-loader
|
ZJ200
|
1 set
|
|||
|
2.
|
Hopper Dryer
|
STG-U125, 75 KG
|
1 set
|
|||
|
3.
|
Single Screw Extruder
|
SJ65/30, 37 KW
|
1 set
|
|||
|
4.
|
Co-extruder ( for marking line )
|
SJ25/25
|
1 set
|
|||
|
5.
|
PP-R Pipe Mould
|
Ф20- 63mm
|
1 set
|
|||
|
6.
|
Vacuum Calibration Tank
|
Ф63x6m
|
1 set
|
|||
|
7.
|
Water Spray Tank
|
Ф63x6m
|
1 set
|
|||
|
8.
|
Haul-off Machine
|
2.2kw
|
1 set
|
|||
|
9.
|
No-dust cutter
|
1.5kw
|
1 set
|
|||
|
10.
|
Stacker
|
4m
|
1 set
|
|||
Machine model
|
Model
|
Pipe Diameter
( mm )
|
Extruder Model
|
Capacity
( Kg/hr )
|
|
PP-R 63
|
Ф20-63
|
SJ65/30
|
60-100
|
|
PP-R 110
|
Ф50-110
|
SJ90/30
|
100-150
|
|
PP-R 160
|
Ф75-160
|
SJ90/33
|
200-300
|
Product features
our main machines
Conical Twin Screw Extruder
Single Screw Extruder
PVC Pipe Production Line
PE PP-R PP Pipe Production Line
PVC Window & Door Profile Production Line
PVC Ceiling Panel, Cable Trunking Profile Production Line
PP PE Corrugated Pipe Machine
PE Orange Electrical Conduit Pipe Machine
SRL-Z Hot & Cold PVC Mixer Unit
Plastic Pulverizer
