Quick Details
-
Brand Name:
-
AOCA
-
Model Number:
-
DR-60-12
-
Output Frequency:
-
47~63HZ
-
Output Current:
-
5A dinrail power supply
-
Product Name:
-
LEDRIVER(switching Power Supply)
-
Application:
-
LED Strip
-
Certification:
-
CE ROHS
-
Warranty:
-
2 Years
-
Type:
-
Consant Voltage
-
Protections:
-
Short Circuit Overtemp Overload Overvolt
-
Protection:
-
OCP OVP SCP OPP
-
Keyword:
-
Led Driver Power
-
IP Rate:
-
IP 67
-
Material:
-
Plastic
Quick Details
-
Input Voltage:
-
100-240VAC
-
Output Voltage:
-
12V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
AOCA
-
Model Number:
-
DR-60-12
-
Output Frequency:
-
47~63HZ
-
Output Current:
-
5A dinrail power supply
-
Product Name:
-
LEDRIVER(switching Power Supply)
-
Application:
-
LED Strip
-
Certification:
-
CE ROHS
-
Warranty:
-
2 Years
-
Type:
-
Consant Voltage
-
Protections:
-
Short Circuit Overtemp Overload Overvolt
-
Protection:
-
OCP OVP SCP OPP
-
Keyword:
-
Led Driver Power
-
IP Rate:
-
IP 67
-
Material:
-
Plastic

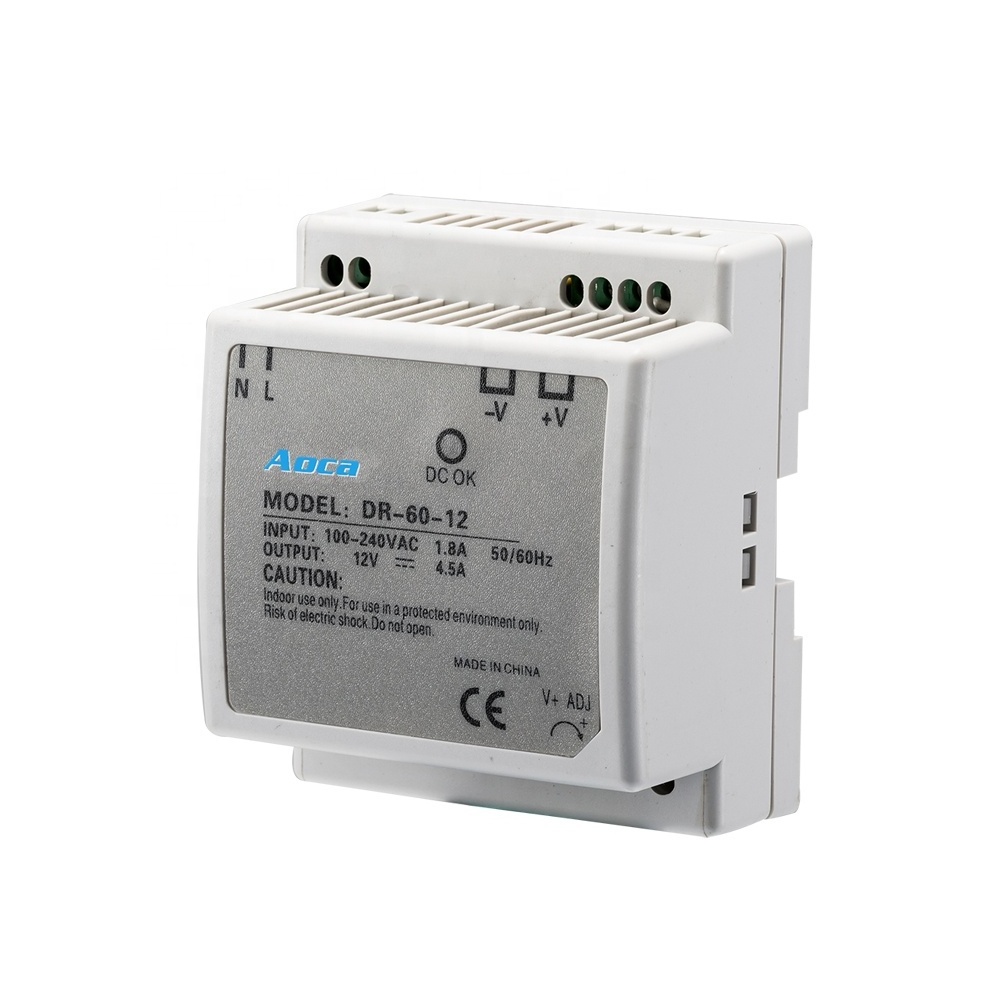

DinRail plastic case 12v 5a 60w switching led power supply 12v 60w power supply
Features:
1. AC input range selectable by switch
2. Protections: Short circuit / Overload / Over voltage / Over temperature
3. 100% full load burn-in test
4. Low cost, high reliability
5. 24 months warranty
1. AC input range selectable by switch
2. Protections: Short circuit / Overload / Over voltage / Over temperature
3. 100% full load burn-in test
4. Low cost, high reliability
5. 24 months warranty
Specification
|
Model
|
DR-60-5
|
DR-60-12
|
|
DR-60-24
|
|
||||
|
Dc output voltage
|
5V
|
12V
|
15V
|
24V
|
|
||||
|
Rated output current
|
6.5A
|
5A
|
|
2.5A
|
|
||||
|
Output current rage
|
0~6.5A
|
0~5A
|
|
0~2.5A
|
|
||||
|
Rated Power
|
25W
|
60W
|
|
60W
|
|
||||
|
Wave and noise
|
100mVp-p
|
200mVp-p
|
|
480mVp-p
|
|
||||
|
Inlet stability
|
±0.5%
|
±0.5%
|
|
±0.5%
|
|
||||
|
Load stablity
|
±1%
|
±0.5%
|
|
±0.5%
|
|
||||
|
Efficiency
|
78%
|
81%
|
|
82%
|
|
||||
|
Adjustable range for DC voltage
|
±10%
|
±10%
|
|
±10%
|
|
||||
|
AC input voltage range
|
AC100~240V 47~63Hz;240~370VDC
|
|
|
|
|
||||
|
Input current
|
1.2A/15VAC 0.8A/230V
|
|
|
|
|
||||
|
AC INnrush current
|
Cold-start current 18A/115VAC 36A/230VAC
|
|
|
|
|
||||
|
Overload proctection
|
105%~150% Tpye:Foldback current limiting Reset: auto recovery
|
|
|
|
|
||||
|
Setup rise hold up time
|
200s,100ms,20ms
|
|
|
|
|
||||
|
Withstand voltage
|
Input and output internal 1.5KVAC,Input and enclosure 1.5KVAC,Output and enclosure 0.5KVAC
|
|
|
|
|
||||
|
Isolation resistance
|
Input and output internal Input and enclosure,Output and enclosure 500VDC/100MΩ
|
|
|
|
|
||||
|
Working temperature
|
-10°C~+50°C
|
|
|
|
|
||||
|
Overall dimension
|
78*93*56mm
|
|
|
|
|
||||
|
Safety standards
|
Meet ULGB4943 UL60950 EN60950 requirement
|
|
|
|
|
||||
|
EMC standards
|
Meet EN55022 GB9254 class A requirement
|
|
|
|
|
||||
|
Weight
|
0.31Kgs
|
|
|
|
|
||||
Our Advantages
Model Show
Application Field
Packing & Delivery
About Us
FAQ
Q1:How many year warranty of your Led driver?
A:Two years.
Q2:What is your MOQ of switch power supply?
A:Our MOQ is 1 piece.
Q3:Can we have our logo or company name to be printed on your products or the package?
A:Sure.Your Logo can be puted on our products by sticker.
Q4:How to order?
A:Please send us your purchase order by email or fax or you can ask us to send you a proforma invoice for your order.
Q5:How can I get the samples?
A:If you need some samples to test,please pay for the transportation freight of samples and our samples will be counted on the next order
