Quick Details
-
Medium:
-
Liquid&gas&steam...
-
Output:
-
4-20mA/hart
-
Display:
-
LCD Digital Display
-
Connection:
-
Flange /Clamp
-
Material:
-
SS304
-
Medium temperature:
-
-20 ~540℃
-
Power supply:
-
24V DC
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
-
Place of Origin:
-
Shanghai, China
-
Product Name:
-
Annubar Flowmeter Series
-
Medium:
-
Liquid&gas&steam...
-
Output:
-
4-20mA/hart
-
Display:
-
LCD Digital Display
-
Connection:
-
Flange /Clamp
-
Material:
-
SS304
-
Medium temperature:
-
-20 ~540℃
-
Power supply:
-
24V DC

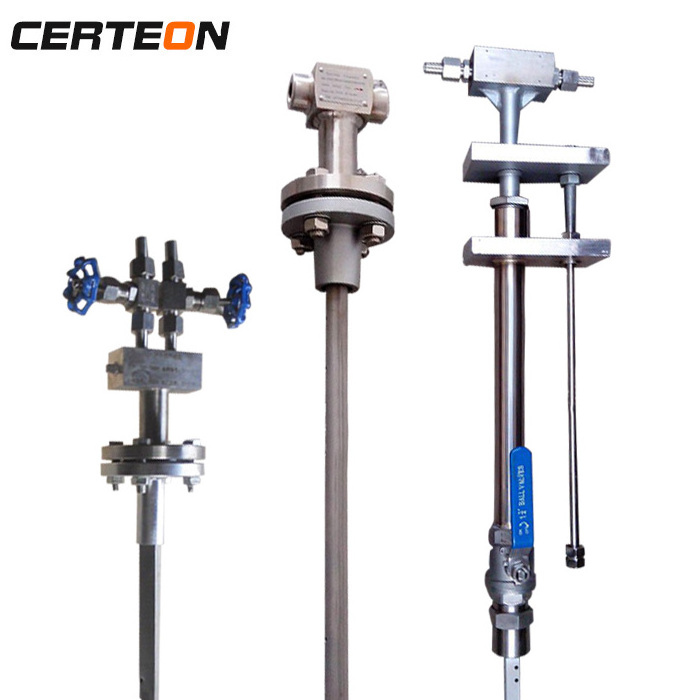

Annubar Flowmeter with high quality
The Rosemount 3051CFA Annubar Flowmeter utilizes the patented T-shaped sensor
design that delivers best in class accuracy and performance. Main Capabilities include:
while meeting the needs of diverse process applications, whether it is high accuracy
for precision control or high strength for severe flow applications.
1. Up to 1.8% of flow rate accuracy
2. Available in 2 to 96-in. (50 - 2400 mm) line sizes
3. Fully assembled and leak tested for out-of-the-box installation
4. Power Advisory can proactively detect degraded electrical loop integrity issues
(Option Code DA0)
5. Local Operator Interface with straightforward menus and built-in configuration
buttons (Option Code M4)
6.Scaled variable, process alerts and selectable HART (Option Code HR5 or HR7)
| Accuracy |
•Mass flow up to 0.8% of mass flow rate, 14:1 turndown
•Classic MV up to ±0.85 % of flow rate, 8:1 flow turndown |
•Volumetric flow up to 0.8% of volumetric flow rate, 14:1 turndown
•Classic MV up to ±0.85% of volumetric flow rate, 8:1 turndown |
| Repeatability | ± 0.1 % | ± 0.1 % |
| Output |
•4-20mA signal based on HART® Communication
•WirelessHART with Smart Wireless THUM adapter |
•4-20mA signal based on HART® Communication
•WirelessHART •FOUNDATION™ fieldbus |
| Long Term Stability | Up to 10-year stability | Up to 10-year stability |
| Warranty | Up to 12-year limited warranty | Up to 12-year limited warranty |
| Diagnostics |
•User-writable process temperature sensor limits
•Sensor Temperature as an output •Instant Flow Verification |
Advanced HART Diagnostic Suite |
| Line Size |
2-in. to 8-in. (50 to 200 mm) – Sensor Size 1
6-in. to 36-in. (150 to 900 mm) – Sensor Size 2 12-in. to 72-in. (300 to 1800 mm) – Sensor Size 3 |
2-in. to 8-in. (50 to 200 mm) – Sensor Size 1
6-in. to 36-in. (150 to 900 mm) – Sensor Size 2 12-in. to 72-in. (300 to 1800 mm) – Sensor Size 3 |
