Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JU Plastic Fitting
-
Model Number:
-
LMD22004/05/06
-
Product name:
-
Air Hose Barb Quick Disconnect Tube Coupling For Water Circulation
-
Application:
-
analysis, medical, biochemical, industrial, lab,food processing etc
-
Body material:
-
White POM, color customization is welcomed
-
Size:
-
1/4", 5/16",3/8"ID tubing
-
Temperature Range:
-
32°F - 160°F (0°C - 71°C)
-
Pressure:
-
Vacuum to 120 psi, 8.3 bar
-
Seal Ring Material:
-
Buna-N/FKM/EPDM/Silicone rubber, depends of your usage
-
Valve Spring:
-
316 Stainless Steel
-
Valve Option:
-
Valved(shut off) or Non-valved(open flow)
-
Termination options:
-
Panel mount/In-line/Elbow/NPT Threaded/Push fit type
-
Certification:
-
ROHS
Quick Details
-
Technics:
-
injection molding
-
Shape:
-
Equal
-
Head Code:
-
round
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JU Plastic Fitting
-
Model Number:
-
LMD22004/05/06
-
Product name:
-
Air Hose Barb Quick Disconnect Tube Coupling For Water Circulation
-
Application:
-
analysis, medical, biochemical, industrial, lab,food processing etc
-
Body material:
-
White POM, color customization is welcomed
-
Size:
-
1/4", 5/16",3/8"ID tubing
-
Temperature Range:
-
32°F - 160°F (0°C - 71°C)
-
Pressure:
-
Vacuum to 120 psi, 8.3 bar
-
Seal Ring Material:
-
Buna-N/FKM/EPDM/Silicone rubber, depends of your usage
-
Valve Spring:
-
316 Stainless Steel
-
Valve Option:
-
Valved(shut off) or Non-valved(open flow)
-
Termination options:
-
Panel mount/In-line/Elbow/NPT Threaded/Push fit type
-
Certification:
-
ROHS
Product Description

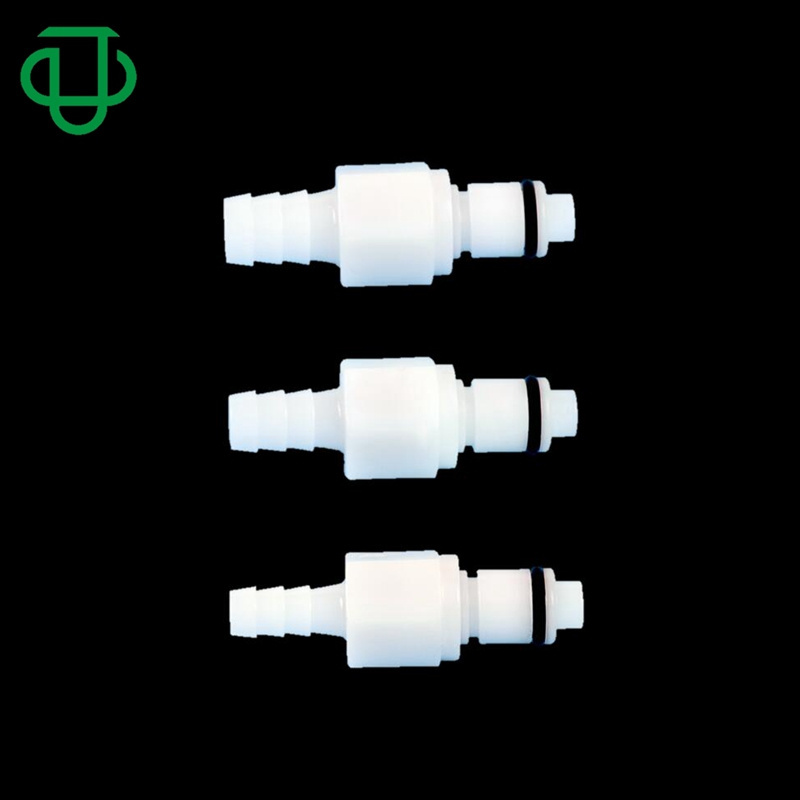

JU Shut Off Valved CPC Plastic Connector In-line Air Hose Barb Quick Disconnect Tube Coupling For Water Circulation
|
Product Name
|
JU Shut Off Valved CPC Plastic Connector In-line Air Hose Barb Quick Disconnect Tube Coupling For Water Circulation
|
|
Usage
|
Standard flow quick-disconnect couplings require a body and an insert in the same flow size. Plug insert into body to connect fitting and easily disconnect the fitting by simply press the thumb latch.
|
|
Application
|
medical devices, laboratory, life science, biopharmaceutical, biochemical analysis, bioengineering, circulating water cooling pipe system, water treatment and disinfection, food&beverage, packaging machinery, industrial and hundreds of other applications;
|
|
Technics
|
Injection molding
|
|
Material
|
POM Acetal Plastic, customization is welcomed;
|
|
Seal Ring Material
|
Buna-N/FKM/EPDM/Silicone rubber,depends on your usage
|
|
Valve Spring
|
316 Stainless Steel
|
|
Temperature Range
|
32°F - 160°F (0°C - 71°C)
|
|
Pressure Range
|
Vacuum to 120 psi, 8.3 bar
|
|
Valve Option
|
Valved(shut off) or Non-valved(straight through)
|
|
Termination Option
|
Panel Mount/In-line/Elbow/NPT Threaded/Push fit type;
|
|
Hose Barb Size
|
1/16" =1.6mm (01); 1/8"= 3.2mm (02); 3/16"= 4.8mm (03);
1/4"=6.4mm (04); 5/16"=8mm (05); 3/8"=9.6mm (06);
|
|
Our Advantage
|
We are factory specialized in plastic connectors, Luer fitting, quick disconnect couplings, barbed check valves, In-Line filters,
pumps and tubings etc for over 15 years with high quality and best price. Owing our own professional research and design team, tooling/mold, plastic injection,assemble and inspection workshop etc.
Flexible size of hose barb, various termination, different colors can be customized.
|
|
Notice about package
|
Considering the smaller package has more favorable freight cost, we will pack separately or together according to order quantity, the size of ordered item, available bag and carton in a reasonable way for space saving. welcome to contact us if you have others
idea. |
|
Notice about shipment
|
International freight cost should be calculated according to packing size and gross weight, please kindly provide us needed item, quantity and details address including zip code for check before place order, thanks in advance.
|
