Quick Details
-
Brand Name:
-
JAR
-
Model Number:
-
Various
-
Color:
-
Black Grey
-
Application:
-
Stainless Steel Corrugated Tube for Wire Protection
-
Certificated:
-
CE ROHS REACH
-
Length:
-
Depends on size specification
-
Size:
-
ID 8mm-150mm
-
Feature:
-
Flexibility Surface Gloss
-
Raw material:
-
Stainless Steel
-
Usage:
-
Electrical Stainless Steel Corrugated Tube
Quick Details
-
Type:
-
Flexible
-
Material:
-
Steel
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JAR
-
Model Number:
-
Various
-
Color:
-
Black Grey
-
Application:
-
Stainless Steel Corrugated Tube for Wire Protection
-
Certificated:
-
CE ROHS REACH
-
Length:
-
Depends on size specification
-
Size:
-
ID 8mm-150mm
-
Feature:
-
Flexibility Surface Gloss
-
Raw material:
-
Stainless Steel
-
Usage:
-
Electrical Stainless Steel Corrugated Tube
Products Description
|
Product Name:
|
SUS304 Metal Flexible Conduit
|
|
Item No.:
|
BM Series
|
|
Available Size:
|
1/4"-6"(OD 8mm to 146mm)
|
|
Material:
|
Zinc Alloy
|
|
Working Temp.:
|
-40℃-105℃
|
|
Color:
|
Metallic
|
|
Waterproof Rate:
|
IP55
|
|
Certificates:
|
CE RoHS
|
Size Specification
|
Model number
|
Specification marking
|
|
Minimum inside
diameter mm |
Outside diameter mm
|
Packing
specification M |
|
|
|
British system
|
Metric system
|
|
BM
|
|
|
|
JAR-SPM6
|
3/16"
|
φ6
|
5.9
|
8.30
|
200
|
|
|
JAR-SPM8
|
1/4"
|
φ8
|
7.9
|
10.50
|
100
|
|
|
JAR-SPM10
|
5/16"
|
φ10
|
9.9
|
12.80
|
100
|
|
|
JAR-SPM12
|
3/8"
|
φ12
|
11.5
|
14.70
|
50
|
|
|
JAR-SPM15/16
|
1/2"
|
φ15
|
14.7
|
18.00
|
50
|
|
|
JAR-SPM20
|
3/4"
|
φ20
|
19.8
|
23.50
|
50
|
|
|
JAR-SPM25
|
1"
|
φ25
|
24.8
|
28.50
|
50
|
|
|
JAR-SPM32
|
1-1/4"
|
φ32
|
31.5
|
36.30
|
50
|
|
|
JAR-SPM38
|
1-1/2"
|
φ38
|
37.5
|
43.00
|
50
|
|
|
JAR-SPM51
|
2"
|
φ51
|
50.5
|
57.00
|
20
|
|
|
JAR-SPM64
|
2-1/2"
|
φ64
|
63.5
|
71.50
|
20
|
|
|
JAR-SPM75
|
3"
|
φ75
|
74.5
|
82.00
|
10
|
|
|
JAR-SPM78
|
|
φ78
|
77.5
|
88.00
|
10
|
|
|
JAR-SPM100
|
4"
|
φ100
|
99
|
110.00
|
10
|
|
|
JAR-SPM110
|
|
φ110
|
109
|
119.50
|
10
|
|
|
JAR-SPM125
|
5"
|
φ125
|
122
|
133.5
|
5
|
|
|
JAR-SPM150
|
6"
|
φ150
|
146
|
158.5
|
5
|
|

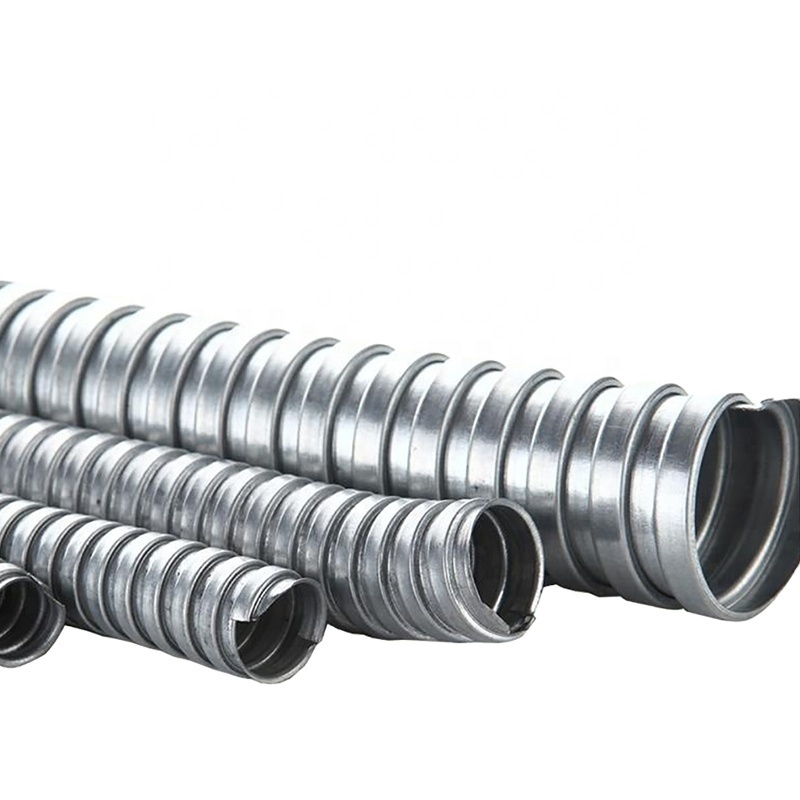

Details Images
