Digital high-speed scanning galvanometer with international advanced level
- Product Details
- {{item.text}}
Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Weihua
-
Weight (KG):
-
60 KG
-
Core Components:
-
Laser source
-
Product name:
-
20w 30w 50w metal engraver JPT mopa / fiber laser marking machines
-
Color:
-
White and black
-
Model:
-
WH-F30
-
Laser source:
-
Raycus Laser Source
-
Laser Power:
-
10W/20W/30W/50W/100W
-
Marking area:
-
110*110mm/ 200*200mm/300*300mm
-
Applicable Material:
-
Metal Plastic
-
Marking Depth:
-
0.1-2mm
-
Marking line width:
-
0.01-0.1mm
-
Lifespan of laser device:
-
100000hours
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, DXF, DXP
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Weihua
-
Weight (KG):
-
60 KG
-
Core Components:
-
Laser source
-
Product name:
-
20w 30w 50w metal engraver JPT mopa / fiber laser marking machines
-
Color:
-
White and black
-
Model:
-
WH-F30
-
Laser source:
-
Raycus Laser Source
-
Laser Power:
-
10W/20W/30W/50W/100W
-
Marking area:
-
110*110mm/ 200*200mm/300*300mm
-
Applicable Material:
-
Metal Plastic
-
Marking Depth:
-
0.1-2mm
-
Marking line width:
-
0.01-0.1mm
-
Lifespan of laser device:
-
100000hours
Product Description

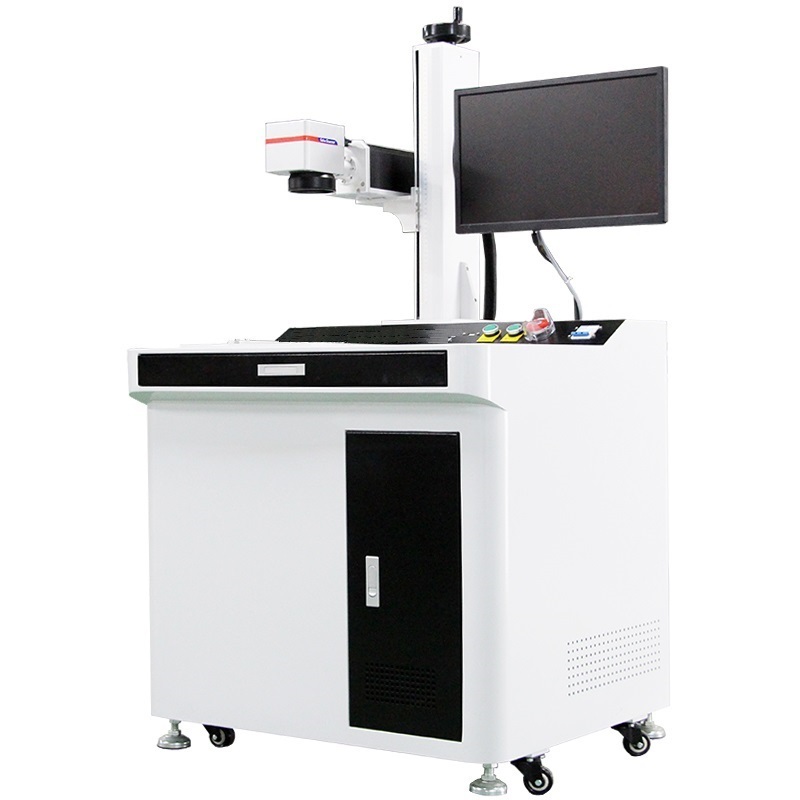

20w 30w 50w metal engraver JPT mopa / fiber laser marking machines
Machine Application
20w 30w 50w metal fiber laser marking machine with rotary
Apply in Marking Graphics, text, bar codes, two-dimensional code, date, batch number, serial number on metal and some nonmetal. Electronic and communication products, IC products, electric lines, cable computer components and electric appliance.Every kind of precision parts,hardware tools,instrument appliance,aviation and spaceflight appliance.Jewelry, garments, instruments, gifts, office devices, brand scutcheon, sanitary ware appliance.Dishware ,food ,drinking,smoking and alcohol,etc.
Main Features
1) Best Marking Effect. Laser marking machine can provide the best marking effect. Especially good at smallest character marking.
2) Higher Accuracy.The laser marking machine for metal can reach unto 0.001mm precision, while diode only 0.01mm.
3) Long lifetime. Fiber laser marking machine of the lifetime can reach 100,000 hours, so the machine can be used for more then 30 years.
4) No consumables. The laser marking machine for metal can be used for metal marking for 8-10 years without any consumables
Tecnical Parameter
|
Parameters
|
Standard Specifications
|
|
Model
|
20w 30w 50w metal engraver JPT mopa / fiber laser marking machines
|
|
Machine Color
|
White and black
|
|
Laser power
|
20W/30w/50w /100w
|
|
Laser Wavelength
|
1064nm
|
|
Light beam quality
|
<2
|
|
Repeating precision
|
±0.002
|
|
etching range
|
110x110mm 200x200mm 300x300mm
|
|
etching depth
|
0.01~1mm
|
|
Marking speed
|
7000mm/s
|
|
Minimum character
|
0.15mm
|
|
Minimum line width
|
0.01mm
|
|
Repeating frequency
|
20KHz~30KHz
|
|
Graphic format supported
|
bmp,png,ai,dxf,dst,plt
|
|
working voltage
|
220V±10%/50Hz/4A
|
|
Control interface
|
Standard USB port
|
|
Working environment
|
Clean and dust free or dust less
|
|
Laser module life
|
100000 hours
|
Detailed Images
Scanner galvo head .
Rotary axis.
(Optional parts) Diameter 80mm, to fix cylinder, such as ring, bearing, pen,
Tool box
This tool box includes, foot pedal, spanner, and others
Goggles .
External red pointer
External red pointer helps you find the focus point easily
Raycus laser source High quality series
Raycus laser source, high quality series, full amount power and longer service time.
Optional Parts
Rotary axis.
Diameter 80mm. to process cylinder, such as
pen, ring
2D work table.
To adjust the items position mirco
Rotary table for pen .
Diameter 300mm, 190mm height, double side of the table can be used. It can fix 24pcs pen one time, improve work
efficiency highly.
Industrial computer.
.
Packing & Delivery
Film inside wooden box.
Moisture-proof, and protect machine body
Fumigation-free wooden box
Sample Picture
Warranty and Service
1. 2 years guarantee for whole machine from production date (except consumable parts) Within guarantee under normal use and maintenance, if something is wrong with the machine, you will get spare part for free.
2. Technical support by phone, email, whatsapp and Skype. Friendly English manual and operation video CD disk. Engineer available to service machinery overseas. You will also get technical support and service all the lifetime.
3. Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine. You will be able to get free training advice toards our machine in our factory
