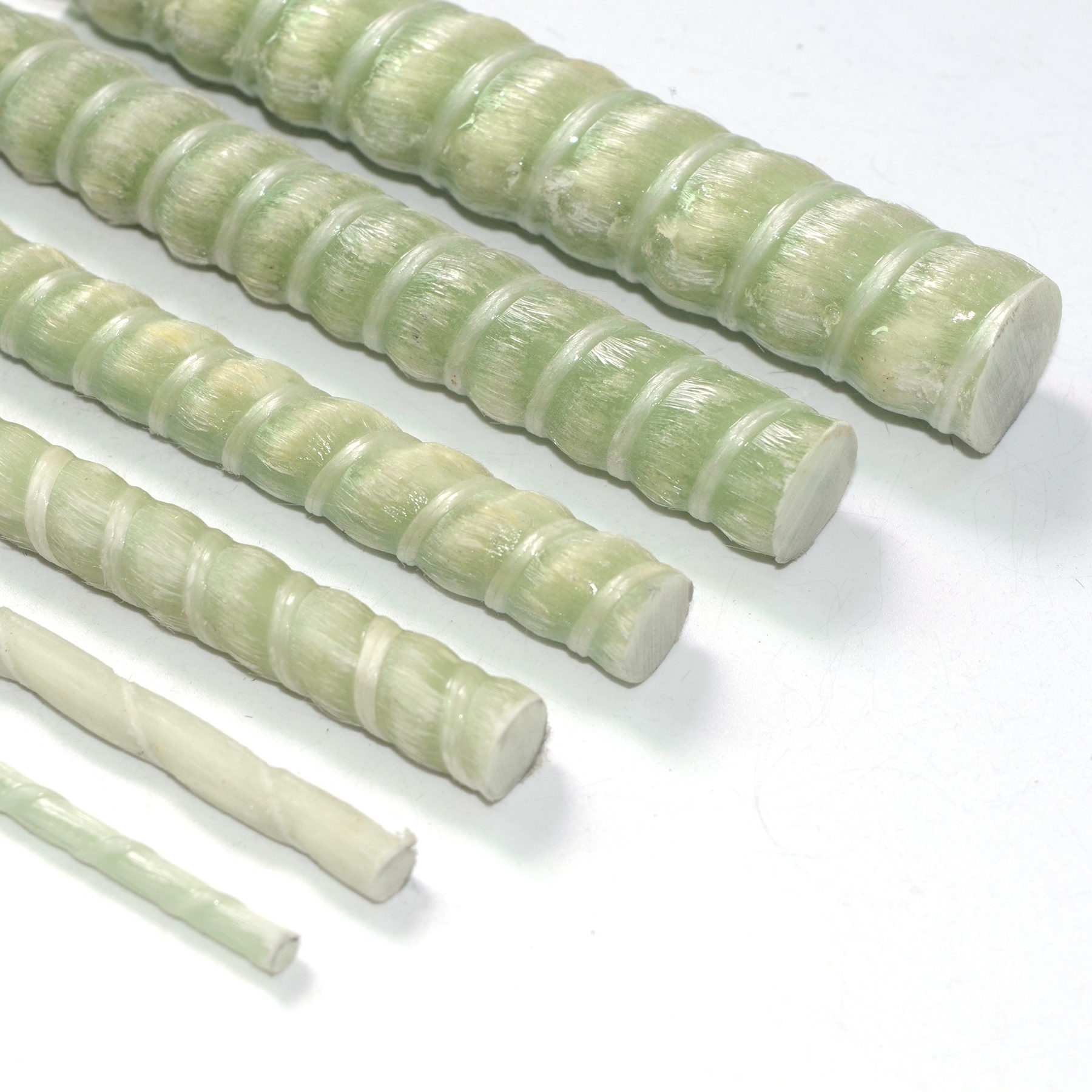

GFRP Fiberglass Anchor Mine Anchor for Concrete Reinforcement Bar

Product Description

Welcome the customer to offer samples, drawings and other information to finish all sorts of CNC machining. ANJIE will provide the best products and solutions, until the customer was satisfied!

1.I ntroduction& Property

GFRP Rebar,FRP Rebar,GRP Rebar,glass fiber reinforced polymer rebar,low-weight rebar,all-thread rebar,anti-static rebar.

2.OurAdvantages

(1)All-Thread FRP Bolt: The rod is threaded over the whole length, i.e. "All-Thread";

(2)High Corrosion Resistance: The base materials used by the bolt are durable materials, and they are molded through the composite process. The life span is up to 100 years. They can be used as permanent support materials;

(3)High Tensile Strength: The load is approximately double that of a steel bar with the same diameter;

(4)Low Weight: The weight is only 1/4 that of a steel bar with the same diameter. Therefore, the labor intensity is greatly reduced, and the transportation cost is reduced at the same time;

(5)Anti-static: It has no electrical conductivity, and no sparks will be produced when being cut. It is particularly suitable for high gas zones;

(6)Non-flammable: It is non-flammable and has high thermal isolation;

(7)Cuttability: It avoids damages to cutter heads, and does not delay excavation;

3 .Technical Data

GFRP Rebar Technical Data (General)
Diameter(mm)	3	4	6	8	10	12	14	16	18	20	22	25	28	30	32	34	36	40
Cross section(mm2)	7	12	28	50	73	103	134	180	248	278	355	478	590	671	740	857	961	1190
Density(g/cm3)	2.2	2.2	2.2	2.2	2.2	2.1	2.1	2.1	2.1	2.1	2.1	2.1	2.1	2.1	2.1	2.1	2.1	2.1
Weight(g/m)	18	32	51	98	150	210	275	388	485	570	700	970	1195	1350	1520	1800	2044	2380
Ultimate tensile(KN)	13.5	18	36	54	72	99	117	149	189	225	270	342	432	450	504	540	585	640
Ultimate tensilestrength(Mpa)	1900	1500	1280	1080	980	870	764	752	744	716	695	675	702	637	626	595	575	509
Ultimate shear strength(Mpa)	>150	>150	>150	>150	>150	>150	>150	>150	>150	>150	>150	>150	>150	>150	>150	>150	>150	>150
E-modulus(GPa)	>38	>38	>38	>38	>38	>38	>38	>38	>38	>38	>38	>38	>38	>38	>38	>38	>40	>40

3 . Our Company Advantages

+ 10 years production and processing experiences

+ Precision machining tolerances

+ Delivery Date Guarantee

+ 100% factory price

FAQ

FAQ:

Q: 1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q: 2. What is the lead time?

A:Sample needs 1-3 days, mass production  needs 10-15 days, also according to the order volume.

Q: 3. Do you have any MOQ limit?

A: Our MOQ is 1000pcs for both formal raw material and processing parts.

Q: 4. Can you accept mixed batch of different products?

A: Yes, we are support different product mix wholesale, no limit of raw materials and mechanical parts, and color specifications, etc

Q: 5. How do you ship the goods and how long does it take arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.

Q: 6. Can you provide container packed in wooden cases if I order more products?

A: Yes, we are can provide a set of wooden packaging products, but only in big quantity.

Q: 7. We want to visit your company?

A: No problem, we are a production and processing enterprises, look forward to your arrival and we will lead you to visit our factory and processing factory.
