Quick Details
-
Brand Name:
-
leadcrete
-
Model Number:
-
post tension jack
-
Min Height:
-
315mm
-
Color:
-
green, natural,red, or according to your requirement
-
Mating oil pump:
-
Mating oil pump:
-
Capacity(load):
-
350T
-
Apply:
-
Concrete Anchor
-
Materials:
-
alloy steel, casting iron, steel , plastic
-
Shape:
-
long round
-
product name:
-
Jacks For Sale Hydraulic Price Post Tension Steel Bar Jack
-
Certification:
-
CE,ISO,SGS
-
warranty:
-
2 years
-
Model:
-
YDC
Quick Details
-
Type:
-
Hydraulic Jack
-
Max Height:
-
545mm
-
Place of Origin:
-
Henan
-
Brand Name:
-
leadcrete
-
Model Number:
-
post tension jack
-
Min Height:
-
315mm
-
Color:
-
green, natural,red, or according to your requirement
-
Mating oil pump:
-
Mating oil pump:
-
Capacity(load):
-
350T
-
Apply:
-
Concrete Anchor
-
Materials:
-
alloy steel, casting iron, steel , plastic
-
Shape:
-
long round
-
product name:
-
Jacks For Sale Hydraulic Price Post Tension Steel Bar Jack
-
Certification:
-
CE,ISO,SGS
-
warranty:
-
2 years
-
Model:
-
YDC
Product Description

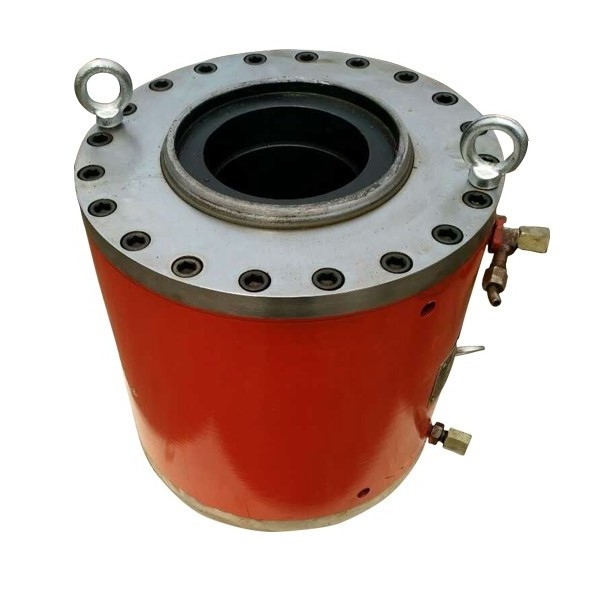

YDC is a light weight cylinder hydraulic for prestressed tensioning equipment.
1. Used for group anchors with 1860-2000 sizes, Φ15.24, Φ12.7 strands.
2. Matched with different accessories, it can be used for different anchors in the pre-tension or post tension prestressed project.
3. Advanced technology and qualitative advantages.
4. Designed through computer analysis and optimization grouping, repeated trials.
5. Cylinder adopt prestressed advanced processes, make it lighter.
Technical parameters
|
Model
|
Tonnage
|
Tension force
KN
|
Stroke
mm
|
Central diameter
mm
|
Dimension
mm
|
Weight
kgs
|
Rated oil pressure
|
|
YDC650
|
65
|
650
|
200
|
Φ60
|
Φ190*345
|
58
|
51Mpa
|
|
YDC1100
|
110
|
1100
|
200
|
Φ80
|
Φ230*356
|
80
|
54Mpa
|
|
YDC1500
|
150
|
1500
|
200
|
Φ90
|
Φ270*356
|
120
|
50Mpa
|
|
YDC2000
|
200
|
2000
|
200
|
Φ114
|
Φ296*372
|
135
|
56Mpa
|
|
YDC2500
|
250
|
2500
|
200
|
Φ128
|
Φ348*373
|
180
|
52Mpa
|
|
YDC3000
|
300
|
3000
|
200
|
Φ142
|
Φ375*385
|
250
|
52Mpa
|
|
YDC3500
|
350
|
3500
|
200
|
Φ158
|
Φ416*385
|
290
|
49Mpa
|
|
YDC4000
|
400
|
4000
|
200
|
Φ158
|
Φ424*385
|
310
|
53Mpa
|
|
YDC4600
|
460
|
4600
|
200
|
Φ190
|
Φ473*390
|
400
|
53Mpa
|
|
YDC5000
|
500
|
5000
|
200
|
Φ193
|
Φ480*395
|
430
|
53Mpa
|
We also can
customized tonnage and stroke
,
if you want to know the price and discount, please contact us!
Application
Application:
When the cylinders hydraulic matched with prestressed anchorage and strands. , it is widespread used in the construction of bridge and buildings, railway and subway, water conservancy and hydropower engineering. In some certain circumstance it can be used in the working of pushing, jacking and transforming and so on.
