Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SY
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
1.6(L)*0.9(W)*1.3(H)(m)
-
Weight:
-
400 kg
-
PLC Brand:
-
None
-
Rewinding Diamete:
-
480mm
-
unwinding diameter:
-
500mm
-
Max.web.width:
-
320mm
-
Die-Cutting Repeat Length:
-
177-476mm
Quick Details
-
Type:
-
Slitting Rewinder
-
Production Capacity:
-
75 m/min
-
Max. workable width:
-
320mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SY
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
1.6(L)*0.9(W)*1.3(H)(m)
-
Weight:
-
400 kg
-
PLC Brand:
-
None
-
Rewinding Diamete:
-
480mm
-
unwinding diameter:
-
500mm
-
Max.web.width:
-
320mm
-
Die-Cutting Repeat Length:
-
177-476mm

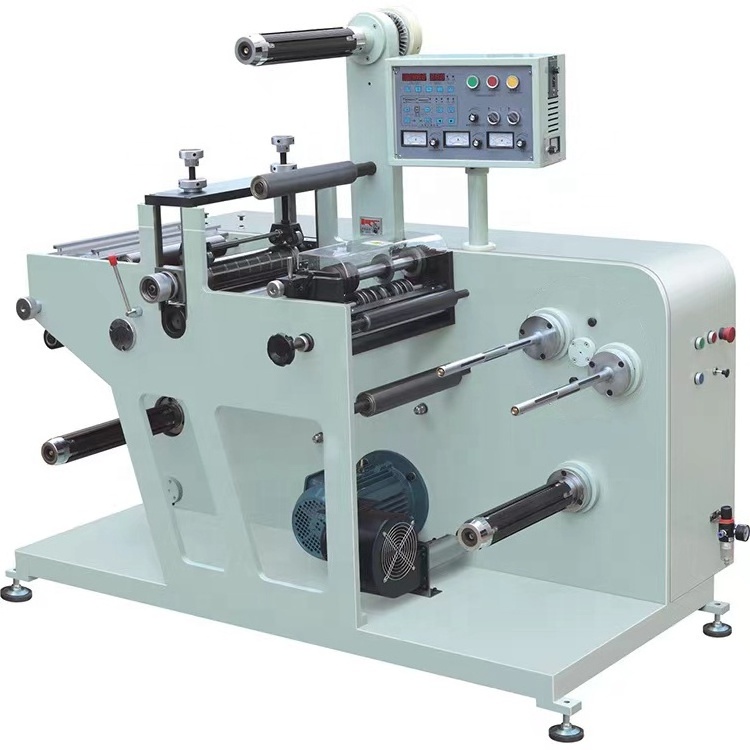

SY-320G Slitting machine with rotary die-cutting function is a new product. it equipped with high accurate rotary die-cutting system.This machine is suitable for blank adhesive labels.Die-cutting.laminating(option).slitting can be fin-ished in one process. It has the function of automatic meter counting. automatic stop. web guiding by photocell,The ma-chine has the characteristic of compact structure. fast speed. high efficiency. easy operation. accurate slitting and steady running etc.
|
Slitting speed:
|
75m/min
|
|
Die-Cutting speed:
|
60m/min
|
|
Die-Cutting Repeat Length:
|
177-476mm
|
|
Max.web.width:
|
320mm
|
|
Max unwinding diameter:
|
500mm
|
|
Max rewinding diameter:
|
480mm
|
|
Overall diameters:
|
1.6(L)x0.9(W)x1.3(H)(m)
|
|
Machine weight:
|
about600kg
|
Controller Panel
Simple and clear. Can quickly adjust the speed and tension of the machine. increase efficiency
Blower Fan
Machine Has Blower Fan To Blow Away The Trimmed Sides to collect waste.
Slitting Unit
This machine is standard equipped with 8 sets of slitting blades ,The minimum slitting width is 20 MM , can customize self-locking knives . It's easy to adjust the slitting width based on your products .
Photoelectric system
These electrical photo cell is used to guide the non neat material .make sure the slitting effect is good .
The photo eyes focus on the edge of material ,you can choose to use single eye or double eyes
The photo eyes focus on the edge of material ,you can choose to use single eye or double eyes
