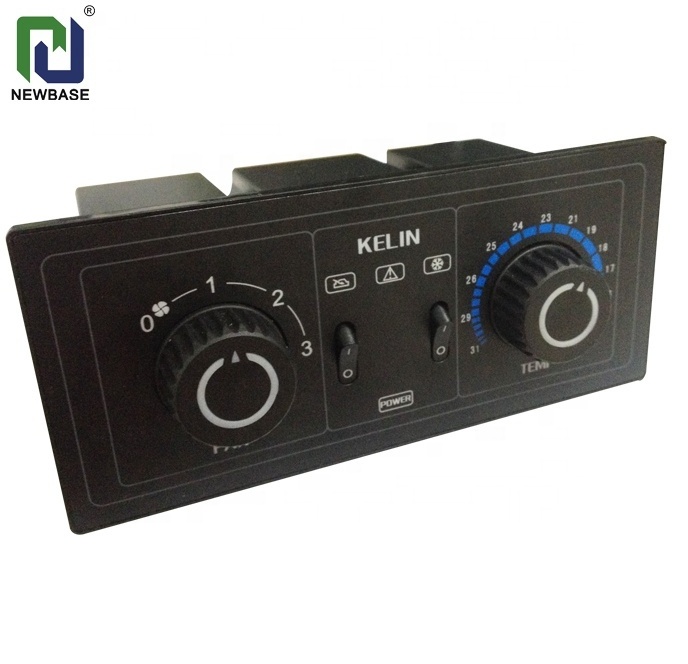

Customize Air Condition Switch CK200208 manual HVAC bus truck air conditioning controller control thermo panel board

FOB Reference Price: Get Latest Price

≥10 Sets

US $30

Free Inquiry

Customized Request

Quick Details

CK200208 manual HVAC bus truck air conditioning controller control thermo panel board

Technical Data

Technical data	CK200208
Power supply	DC24V (DC20V-DC32V)/DC12V(DC10V-DC15V)
Power consumption	2.5w
Current	Max.150mA
Dimensions(mm)	168x66x54
Input	1)Interior temp sensor (25 °c ,Rb=5k,B=3274) 2)Defrost temp sensor ( 25 °c ,Rb=5k,B=3274 ) 3)Pressure sensor 4)ACC power (battery)
Output	1) Compressor clutch(Max.0.3A ) 2) fan high ( Max.0.3A ) 3) fan medium ( Max.0.3A ) 4) fan low ( Max.0.3A ) 5)Fresh air on ( Max.0.3A ) 6)fresh air off ( Max.0.3A )
Display	Marked + backup lamp
Ambient temperature	-30 °c —80 °c 5%-95%RH Non-condensing
Storage tenperature	-10 °c —70 °c 5%-95%RH Non-condensing
Display precision	± 1 °c;
Temperature test standard	Temp. control based on the temp. of return air inlet,the defrost sensor controls defrost temp.,defrost on at 2 °c ,defrost off at 4 °c
Connector	Plug DJ7081C-6.3-112,DJ7021-6.3-11,DJ7021-6.3-21
Faceplate level	IP43
EMC level	EN50081&EN50082-2
Securtiy level	Applied to EN61010- II,Pollution degree: II
Weight:	255g
