Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sevenstars
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
based on different machine models
-
Weight:
-
10 KG
-
Raw material:
-
PP PE Granules
-
Name:
-
Plastic Pipe Making Machine
-
Usage:
-
Plastic Forming Machine
-
Keywords:
-
PE corrugated pipe making machine
-
Final product:
-
PE spiral corrugated pipe
-
Product Type:
-
Extrusion Production
-
Processing Type:
-
Extruding Equipment
-
Product name:
-
PE corrugated Pipe Machine
-
Product:
-
PE spiral corrugated pipe
-
Material:
-
PP PE LDPE HDPE
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
30:1
-
Screw Speed (rpm):
-
120 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sevenstars
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
based on different machine models
-
Weight:
-
10 KG
-
Raw material:
-
PP PE Granules
-
Name:
-
Plastic Pipe Making Machine
-
Usage:
-
Plastic Forming Machine
-
Keywords:
-
PE corrugated pipe making machine
-
Final product:
-
PE spiral corrugated pipe
-
Product Type:
-
Extrusion Production
-
Processing Type:
-
Extruding Equipment
-
Product name:
-
PE corrugated Pipe Machine
-
Product:
-
PE spiral corrugated pipe
-
Material:
-
PP PE LDPE HDPE
General Introduction

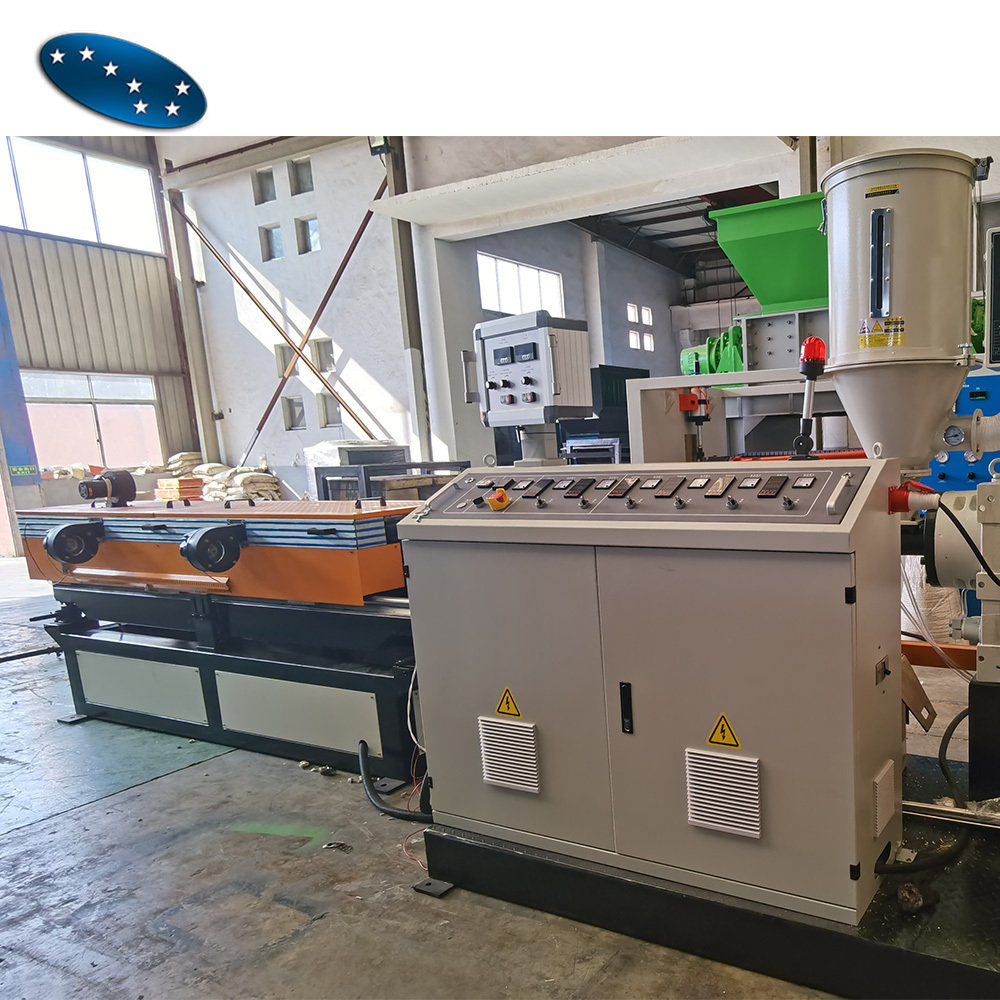

PE single corrugated pipe production line
This production line can be used to produce corrugated pipes of PP/PE/PVC/EVA/PA continuously.
Plastic single wall corrugated pipes have features of high temperature resistance,corosion and abrasion resistance,high intensity and good flexibility,etc.They are widely used in fields of auto wire harness,electric thread-passing pipes,circuit of machine tool,protective of lamps and lantern wires,tubes of air conditioner and washing machine etc.
Plastic single wall corrugated pipes have features of high temperature resistance,corosion and abrasion resistance,high intensity and good flexibility,etc.They are widely used in fields of auto wire harness,electric thread-passing pipes,circuit of machine tool,protective of lamps and lantern wires,tubes of air conditioner and washing machine etc.
Detail Description
|
Extrusion Machine
Model |
Corrugated
Pipe Diameter(mm) |
Extruder Model
|
Output(kg/h)
|
Power(kw)
|
Forming Machine Power(kw)
|
Module No. (pairs)
|
Production Line Speed(m/min)
|
L/D
|
|
BDX-12
|
4-12
|
SJ-30
|
8-15
|
3.7
|
1.5
|
42
|
1-8
|
28:1
|
|
BDX-32
|
8-32
|
SJ-45
|
40
|
11
|
2.2
|
38
|
1-12
|
30:1
|
|
BDX-65
|
25-65
|
SJ-65
|
60
|
22
|
2.2
|
43
|
1-8
|
33:1
|
|
BDX-110
|
50-110
|
SJ-90
|
150
|
37
|
5.5
|
50
|
1-5
|
33:1
|
Single screw extruder
Die head
forming mold
forming machine
Automatic double disc winder
Final pipe
