Quick Details
-
Resistance:
-
5K-2M
-
Resistance Tolerance:
-
+/-20%,+/-10%
-
Rated Power:
-
B 0.2 AC 0.05W
-
Max. Operating Voltage:
-
250V
-
Operating Temperature:
-
105
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SPIKE,KENNON
-
Model Number:
-
WH116AK-4R-1
-
Resistance:
-
5K-2M
-
Resistance Tolerance:
-
+/-20%,+/-10%
-
Rated Power:
-
B 0.2 AC 0.05W
-
Max. Operating Voltage:
-
250V
-
Operating Temperature:
-
105

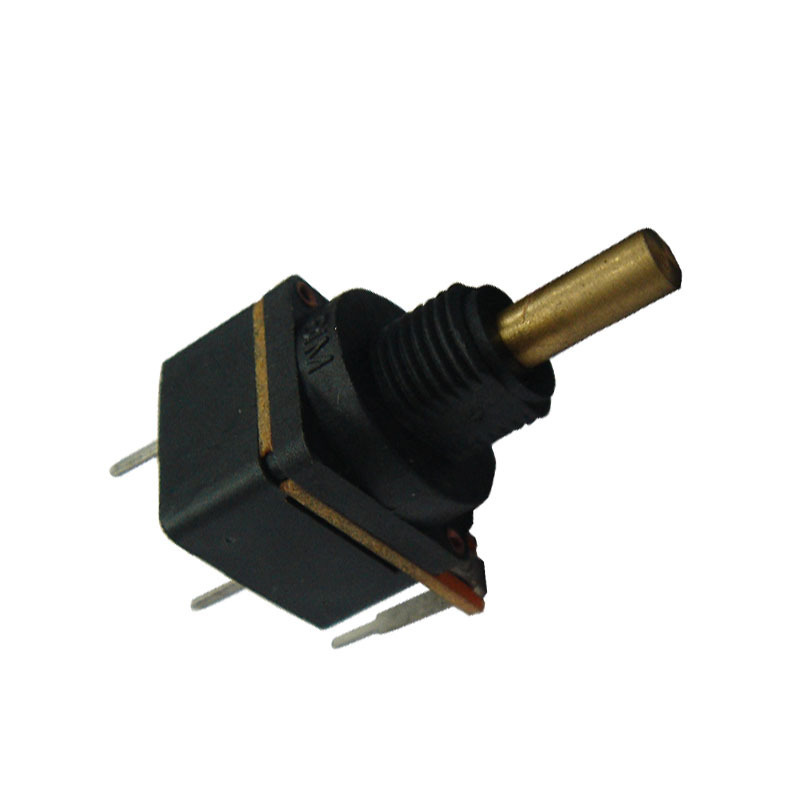

EP160KC push push SPDT dimmer rotary micro potentiometer B100K B503 B470K hotel switch wall switch omeg radiohm alpha potentio.
Mechanical characteristics:
Total rotation angle:270°±5°
Rotation torque: 1~10mN.m
Shaft stop strength: 3Kgf.cm
Switch working angle/stroke: (3±0.5)mm
Switch working force/torque: 150-500g
Click position: 0detent/15/27detents
Electrical characteristics::
Operating temperature: (-20)to (+100)
Switch rating : AC 250V 10A
Switch contact resistance: Less than 50mΩ
Rated wattage: 0.2W
Rated voltage:250V
Insulation resistance: More than 100Ω at DC500V
Dielectric:AC1500V,1minute(between carbon plate and contact)AC750V,1 minute(between open contacts)
Resistance tolerance: ±20% (more than 1M Ω±30%)
Rotational noise:≤47mV
Residual resistance: R≥250KΩ 0.1% max. of total resistance
250R10KΩ 20Ω max
10KΩ≥R
Durability:
Mechanical life: 50000 cycles
Electrical life: 30000 cycles
