Quick Details
-
Brand Name:
-
ChengLiang
-
Model Number:
-
CCTV-10A-9CH-U
-
Output Frequency:
-
47-63HZ
-
Output Current:
-
10A, 10A
-
Output power:
-
120w max
-
Channel:
-
9 Channel
-
Certification:
-
CE RoHS FCC
-
Working temperature:
-
-20℃~+60℃
-
Warranty:
-
2 Years
-
Size:
-
278*230*82MM
-
Protection:
-
Under Votage,Over Load,Over Temperature
Quick Details
-
Input Voltage:
-
100-250VAC, 100-250VAC
-
Output Voltage:
-
12V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ChengLiang
-
Model Number:
-
CCTV-10A-9CH-U
-
Output Frequency:
-
47-63HZ
-
Output Current:
-
10A, 10A
-
Output power:
-
120w max
-
Channel:
-
9 Channel
-
Certification:
-
CE RoHS FCC
-
Working temperature:
-
-20℃~+60℃
-
Warranty:
-
2 Years
-
Size:
-
278*230*82MM
-
Protection:
-
Under Votage,Over Load,Over Temperature

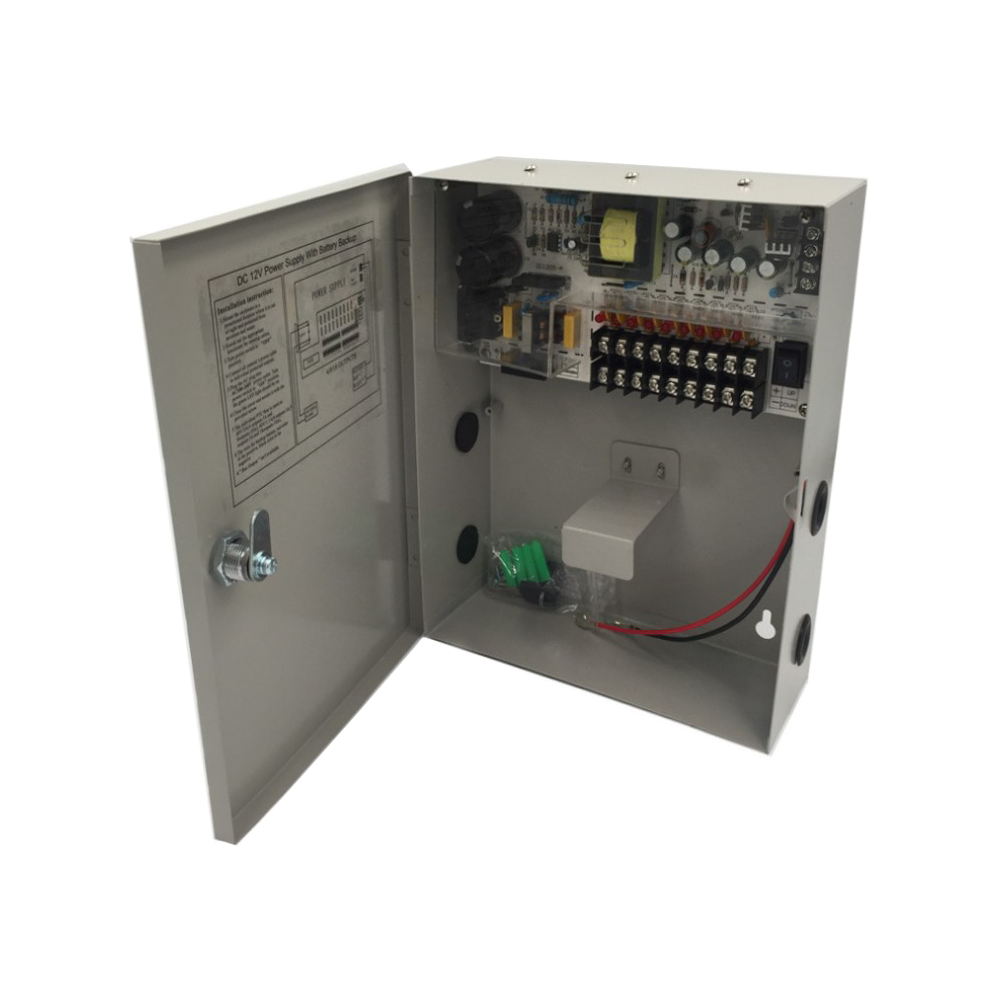

12V 10A 9 Channel CCTV camera UPS power supply box with battery circuit.It is used for access control and building security.
Features:
| Type: | 9 channel CCTV ups camera power supply 12V 10A 120W |
| Testing: | Universal input / Full range |
| Testing: | 100% full load burn-in test |
| Protections: | Short circuit / Over current |
| Warranty: | 2 years |
| Input Vltage: | 100-250VAC |
| Input Frequency: | 47-63HZ |
|
Output Voltage Adjustment Range: |
±5%- ±10% |
|
Output overload protection:
|
110%-150% |
| Input to output: | 1.5KV AC/1 min |
| Input to ground: | 1.5KV AC/1 min |
| Opening time: | 50MS(typical) |
| Holding time: | 20MS(typical) |
| Working temperature: | -40℃~+60℃ |
| MTBF: | >5000 hours |
| Cooling: | Self-cooling |
Chengliang Electronic Technology is known as switching power supply manufacturer with certain scale and good reputation in the world.Not because of its advertising,but its standard process and strict quality control,and also its perfect service system.We produce 5v/12v/24v/36v/48v IP20 and IP67 power supply,which are widely used in CCTV camera,LED lighting,3D printer,CNC motor,Step control,Electrical/Medical equipment,etc.
1.Semi-finished product inspection.
2.Assemble and install
3.Burn-in test for every one
4.Function test for every one
5.Package
6.Delivery
7.Applications.
8.Certifications
9.Exhibitions
10.Why choose us?
- 10 years' experience in switching power supply manufacturing and developing.
- 3000 customers, including 2000 in China mainland, 1000 in overseas markets all over the world;
- 100% full load brun-in test
- High quality with competitive price
- Real Factory, OEM and ODM are welcome.
- Delivery within 2 weeks for bulk order, within 3 days for general small batch order
- 2 years warranty
- Complete certification, UL,SAA,KC,CE, RoHS, EMC, FCC etc.
- 100% full load burn-in test.
11.Our main products
1)CCTV camera power supply
2)Dimmable LED power supply
3)IP67 Waterproof power supply
4)IP63 Rainproof power supply
5)Slim power supply
If you have any interest,call or email us immediately.We are looking for sincere partners.
