Quick Details
-
Application:
-
Outdoor
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TAIAN HONGYUAN
-
Model Number:
-
GCL-3
-
Specification:
-
4000G-6800G
-
Material:
-
Bentonite
-
Product name:
-
GCL (Geosythetic Clay Liners)
-
Type:
-
Waterproof Membrane
-
Keyword:
-
Geo Synthetic Pond Liner Bentonite
-
Usage:
-
Waterproof Projects
-
Certificate:
-
ISO9001
-
Function:
-
Waterproof
-
Weight:
-
4000-6000g/m2
-
Item name:
-
Bentonite Material Clay Liner GCL
Quick Details
-
Warranty:
-
Lifetime
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Outdoor
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TAIAN HONGYUAN
-
Model Number:
-
GCL-3
-
Specification:
-
4000G-6800G
-
Material:
-
Bentonite
-
Product name:
-
GCL (Geosythetic Clay Liners)
-
Type:
-
Waterproof Membrane
-
Keyword:
-
Geo Synthetic Pond Liner Bentonite
-
Usage:
-
Waterproof Projects
-
Certificate:
-
ISO9001
-
Function:
-
Waterproof
-
Weight:
-
4000-6000g/m2
-
Item name:
-
Bentonite Material Clay Liner GCL
Products Description

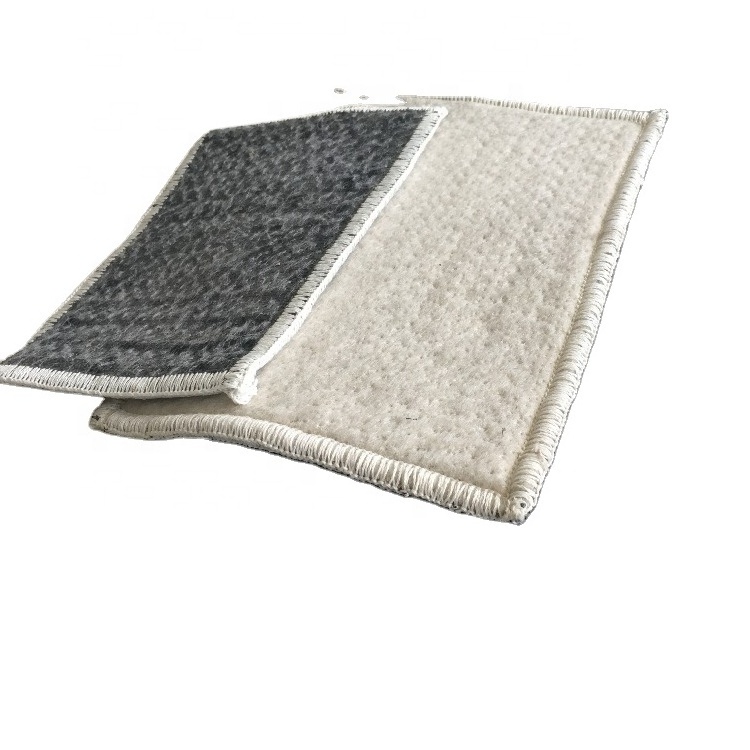

GCL
Geosynthetic clay liner (GCL) is composed of high dilatability of sodium base bentonite filling between the special composite geotextile and nonwoven fabric. It made by the method of acupuncture or suture composite impervious material. Use acupuncture into GCL can form many small fiber space, make the bentonite particles can't flow in one direction, when under the influence of water within the mat forming uniform density of colloidal waterproof layer, prevent the leakage of water.
GCL Geosynthetic Drainage Liner Bentonite Composite Waterproof Blanket Geomembrane Clay Liner for Artificial Lake Lining
|
Projects/ Technical data
|
GCL-NP Technical Indicators
|
|
Weight per unit area(g/m2)
|
more than 4000gsm and no less than specified value
|
|
Bentonie swell index(ml/2g)
|
≥24
|
|
Ethylene blue absorption(g/100g)
|
≥30
|
|
Tensile strength (N/100mm)
|
≥600
|
|
Racking strength(N/100mm)
|
≥40
|
|
Elongation at max load(%)
|
≥10
|
|
Permeability(m/s)
|
≤5.0x110^(-11)
|
|
Anti-static water pressure
|
0.4Mpa,1h,not seepage
|
|
Filtration loss (ml)
|
≤18
|
|
Bentonite durability (ml/2g)
|
≥20
|
Product characters
1. Environment friendly
2. Permanent waterproof, excellent performance
3. Easy to construct
4. Strong Self-Restore Capacity
2. Permanent waterproof, excellent performance
3. Easy to construct
4. Strong Self-Restore Capacity
Application Scenarios
1. The landfill anti-seepage closed treatment engineering.
2. The waterscape engineering and artificial landscape engineering.
3. The underground tank seepage control engineering. 4. Channel, the canal seepage control engineering.
5. The reservoir seepage control engineering (pool).
6. The subway engineering.
7. The tunnel engineering.
8. The underground structure and waterproof engineering such as underground foundation.
2. The waterscape engineering and artificial landscape engineering.
3. The underground tank seepage control engineering. 4. Channel, the canal seepage control engineering.
5. The reservoir seepage control engineering (pool).
6. The subway engineering.
7. The tunnel engineering.
8. The underground structure and waterproof engineering such as underground foundation.
landfill
basement
Artificial lake
Sri Lanka Construction
Packing & Delivery
FAQ
1. who are we?
We are based in Shandong, China, start from 2010,sell to Domestic Market(50.00%),South America(30.00%),Southeast Asia(10.00%),Mid
East(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
bentonite mat,swellable mat,bentonite waterstop strips,geomembrane,geotextile
4. why should you buy from us not from other suppliers?
Hongyuan International Co., Ltd is one industrial and trading enterprise, with the production intelligence of geomembrane,
geotextile, GCL(Geosynthetic clay liners) and geotechnical materials.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
We are based in Shandong, China, start from 2010,sell to Domestic Market(50.00%),South America(30.00%),Southeast Asia(10.00%),Mid
East(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
bentonite mat,swellable mat,bentonite waterstop strips,geomembrane,geotextile
4. why should you buy from us not from other suppliers?
Hongyuan International Co., Ltd is one industrial and trading enterprise, with the production intelligence of geomembrane,
geotextile, GCL(Geosynthetic clay liners) and geotechnical materials.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
