Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Haicoer
-
Model Number:
-
752N
-
Focal Length:
-
4nm
-
Wavelength Range:
-
190~960nm
-
Optical System:
-
Single Beam,1200 Diffraction Grating
-
Wavelength Reproducibility:
-
≤1.0nm
-
Photometric Range:
-
0~100%(T),-0.050~3.000(A)
-
Transmittance Accuracy:
-
±1.0%(T)
-
Transmittance Repeatability:
-
≤0.5%(T)
-
Reading Range:
-
0~9999(CONC. , CONC. F)
-
Stray Light:
-
≤0.5%(220nm,260nm)
-
Interface:
-
RS232
-
Wavelength Accuracy:
-
±2nm
-
Spectral Bandwidth:
-
4nm
Quick Details
-
Warranty:
-
1year
-
Size:
-
440*380*200mm
-
Weight:
-
5.3Kg
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Haicoer
-
Model Number:
-
752N
-
Focal Length:
-
4nm
-
Wavelength Range:
-
190~960nm
-
Optical System:
-
Single Beam,1200 Diffraction Grating
-
Wavelength Reproducibility:
-
≤1.0nm
-
Photometric Range:
-
0~100%(T),-0.050~3.000(A)
-
Transmittance Accuracy:
-
±1.0%(T)
-
Transmittance Repeatability:
-
≤0.5%(T)
-
Reading Range:
-
0~9999(CONC. , CONC. F)
-
Stray Light:
-
≤0.5%(220nm,260nm)
-
Interface:
-
RS232
-
Wavelength Accuracy:
-
±2nm
-
Spectral Bandwidth:
-
4nm
Product Overview

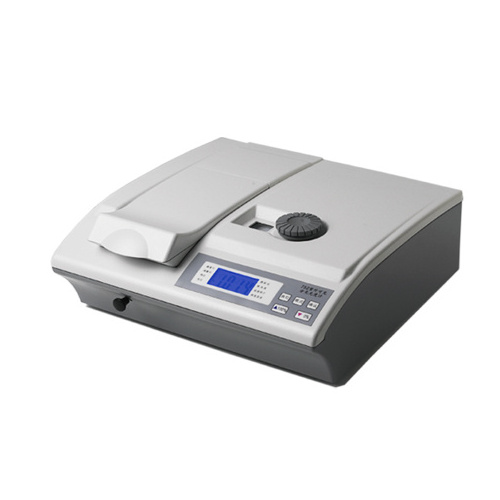

752N Visible Spectrophotometer
CHARACTERISTICS:
1. Newest SCM system，powerful function, compact size，maintain conveinent.
2.Flame-retardant insulating ABS shell, well-designed, operatign easily,high safety factor
3.4 digital LCD display with blue backlight wide measuring range high accuracy.
4. New type thin-film type panel, nice feel, dust proof and water proof,easy to clean.
5. Advanced optical system design, sealed grating monochromator and anti-mould technology, and elimination stray light technology,improve the lifetime of the instrument, stray light,stability and accuracy index.
6. Halogen tungsten lamp and deuterium lamp all use lens to collect light,which effective avoid the energy plummeting when the reflector is burnt after long time.
7. Exclusive precision lamp holder,halogen tungsten lamp and deuterium lamp could be easy replaced by user,no need to readjust the optical path.
8.To switch the halogen tungsten lamp and deuterium lamp by button,more convenient and saftety.
9.Automatic calibration 0%(T),100(T) and absorbency 0(A).
10. Boasts "Concentration factor" and "Concentration direct reading" function.
11. RS232 interface could connect with mini thermal printer.
2.Flame-retardant insulating ABS shell, well-designed, operatign easily,high safety factor
3.4 digital LCD display with blue backlight wide measuring range high accuracy.
4. New type thin-film type panel, nice feel, dust proof and water proof,easy to clean.
5. Advanced optical system design, sealed grating monochromator and anti-mould technology, and elimination stray light technology,improve the lifetime of the instrument, stray light,stability and accuracy index.
6. Halogen tungsten lamp and deuterium lamp all use lens to collect light,which effective avoid the energy plummeting when the reflector is burnt after long time.
7. Exclusive precision lamp holder,halogen tungsten lamp and deuterium lamp could be easy replaced by user,no need to readjust the optical path.
8.To switch the halogen tungsten lamp and deuterium lamp by button,more convenient and saftety.
9.Automatic calibration 0%(T),100(T) and absorbency 0(A).
10. Boasts "Concentration factor" and "Concentration direct reading" function.
11. RS232 interface could connect with mini thermal printer.
PRODUCT SPECIFICATIONS
|
Model
|
752N
|
|
Optical System
|
Single Beam,1200 Diffraction Grating
|
|
Wavelength Range
|
190nm~960nm
|
|
Wavelength Accuracy
|
±2nm
|
|
Wavelength Repeatability
|
≤1.0nm
|
|
Spectral Bandwidth
|
4nm
|
|
Photometric Range
|
0~100%(T),-0.050~3.000(A)
|
|
Transmittance Accuracy
|
±1.0%(T)
|
|
Transmittance Repeatability
|
≤0.5%(T)
|
|
Reading Range
|
0~9999(CONC. , CONC. F)
|
|
Stray Light
|
≤0.5%(220nm，260nm)
|
|
Light Source
|
Halogen Tungsten Lamp&Deuterium Lamp
|
|
Interface
|
RS232
|
|
Optional
|
Printer
|
|
size
|
380*370*160cm
|
|
Weight
|
N.W:5kg.G.W.6.5kg
|
