Quick Details
-
Productivity:
-
Other
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DASWELL
-
Weight:
-
3600 kg
-
Dimension(L*W*H):
-
null
-
Marketing Type:
-
New Product 2022
-
Product name:
-
Daswell mobile placing boom
-
Boom Length:
-
11m
-
Hose Length:
-
2
-
Rotation:
-
360°
-
System Pressure:
-
20mpa
-
Hydraulic System Power:
-
4kw
-
Drive Mode:
-
Fully Hydraulic
Quick Details
-
Power Type:
-
Other
-
Max. vertical conveying distance:
-
Customized
-
Max. horizontal conveying distance:
-
11m
-
Productivity:
-
Other
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DASWELL
-
Weight:
-
3600 kg
-
Dimension(L*W*H):
-
null
-
Marketing Type:
-
New Product 2022
-
Product name:
-
Daswell mobile placing boom
-
Boom Length:
-
11m
-
Hose Length:
-
2
-
Rotation:
-
360°
-
System Pressure:
-
20mpa
-
Hydraulic System Power:
-
4kw
-
Drive Mode:
-
Fully Hydraulic

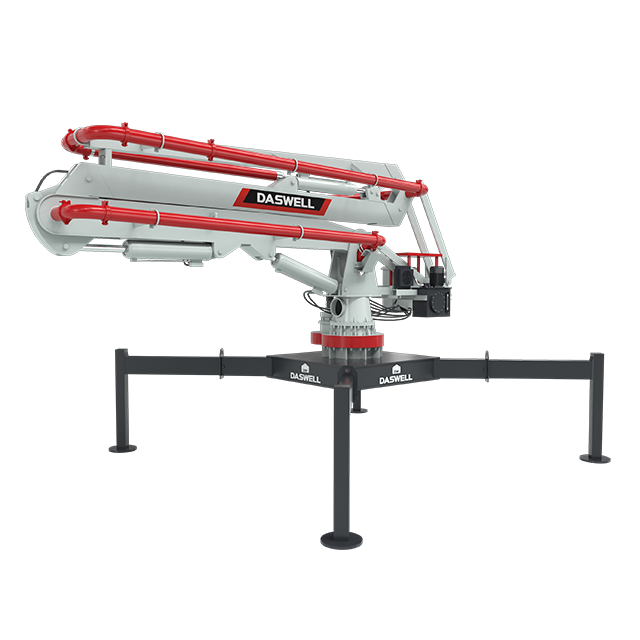

Introduction of mobile concrete placing boom:
The mobile concrete placing boom is composed of placing arm assembly, slewing device, upper and lower supports, chassis, concrete pipeline, hydraulic system and electrical control system. The distributing boom is a three-section box structure. The extension and folding of the three boom sections are realized by the hydraulic system, which can transport the concrete to the required construction surface.
|
Model |
MPB13 |
MPB15 |
MPB17/18 |
|
|
Boom length (m) |
13 |
15 |
17/18 |
|
|
Hose length (m) |
3 |
3 |
3 |
|
|
Rotation(°) |
360° |
360° |
360° |
|
|
Rotating speed(r/min) |
0.46 |
0.23 |
0.46 |
|
|
Pitching angle |
-2~84.4 |
0~90 (-4~90 ) |
0~90 (-4~90 ) |
|
|
System pressure(Mpa) |
20 |
20 |
20 |
|
|
Hydraulic system power(kw) |
4 |
4 |
5.5 |
|
|
Drive mode |
Fully Hydraulic |
Fully Hydraulic |
Fully Hydraulic |
|
|
Weight |
Self weight |
2.7 |
3.2 |
4.94 |
|
Balance weight |
1.6 |
2.2 |
2.1 |
|
