Quick Details
-
Ejector Force(kN):
-
20 kN
-
Theoretical Shot Volume(cm³):
-
221 cm³
-
Injection Rate (g/s):
-
120 g/s
-
Injection Weight (g):
-
203 g
-
Screw diameter (mm):
-
42 mm
-
Weight (KG):
-
3800 kg
-
Type:
-
vertical injection
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
250 mm
-
Model Number:
-
DV-850
-
Brand Name:
-
Denice
-
Power (kW):
-
7 kW
-
Key Selling Points:
-
High precision, competitive price
-
Product name:
-

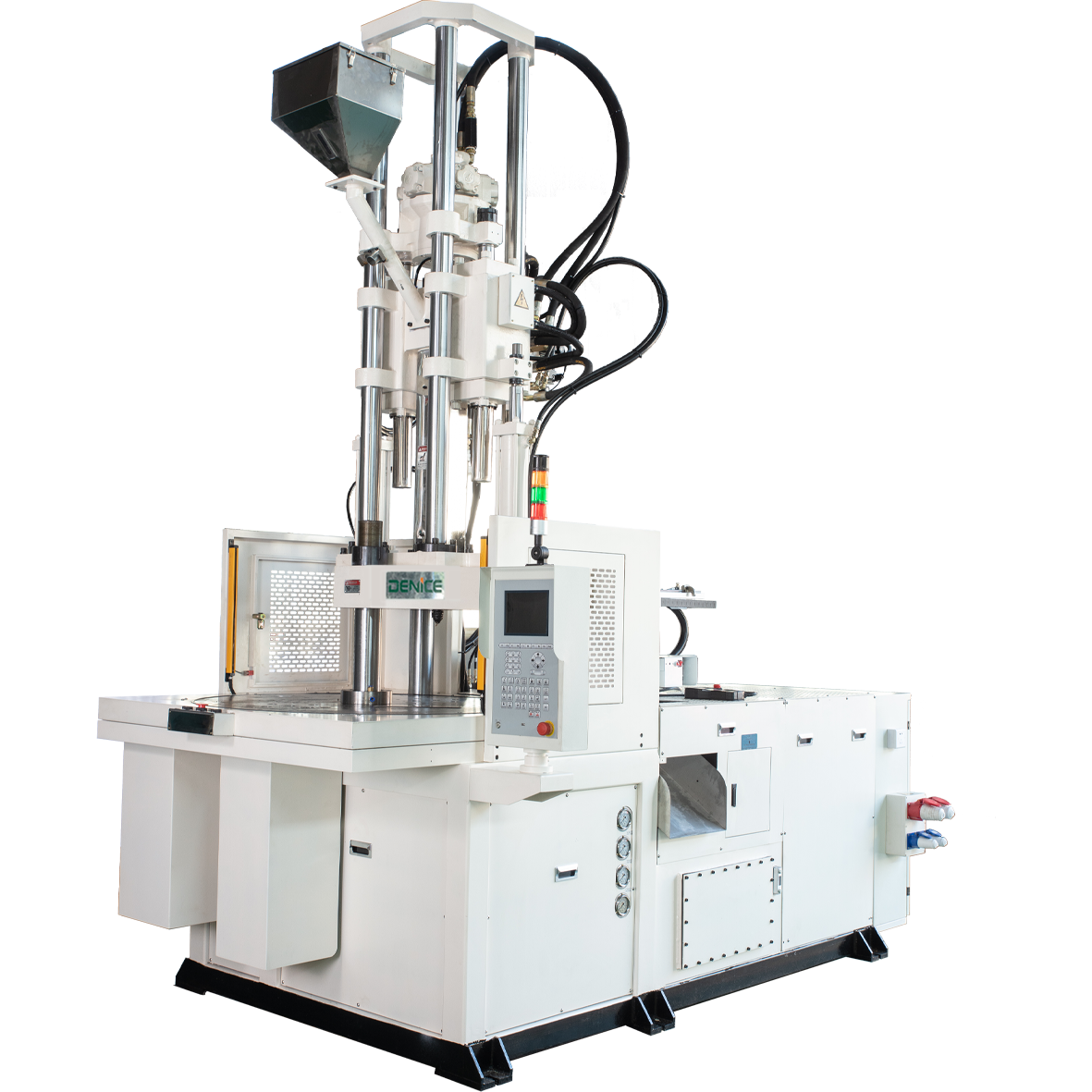

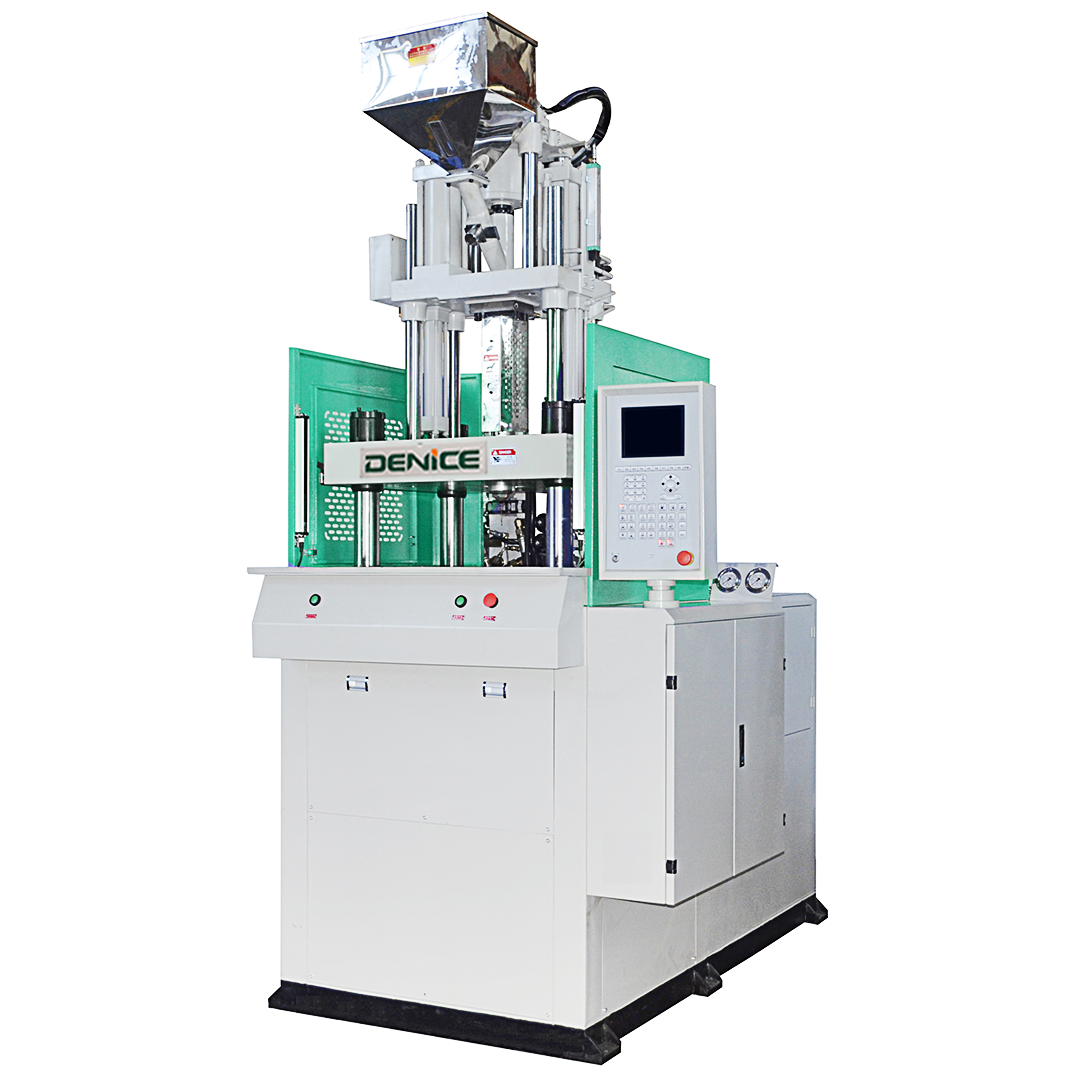

Vertical plastic injection moulding machine DV-250
-
Application:
-
Inserting Plastic Products
-
Name:
-
China Inejction Molding Machine
-
Keyword:
-
Plastic injection molding machine
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Plasticizing Capacity(g/s):
-
120
-
Mold Height(mm):
-
200 - 550 mm
-
Ejector Stroke(mm):
-
65 mm
-
Ejector Force(kN):
-
20 kN
-
Theoretical Shot Volume(cm³):
-
221 cm³
-
Injection Rate (g/s):
-
120 g/s
-
Injection Weight (g):
-
203 g
-
Screw diameter (mm):
-
42 mm
-
Weight (KG):
-
3800 kg
-
Type:
-
vertical injection
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
250 mm
-
Model Number:
-
DV-850
-
Brand Name:
-
Denice
-
Power (kW):
-
7 kW
-
Key Selling Points:
-
High precision, competitive price
-
Product name:
-
Vertical plastic injection moulding machine DV-250
-
Application:
-
Inserting Plastic Products
-
Name:
-
China Inejction Molding Machine
-
Keyword:
-
Plastic injection molding machine
-
Marketing Type:
-
Ordinary Product
|
Specification
|
|
|
|
|
|
|
||||||
|
Model
|
|
Unit
|
DV-850
|
|
|
|
||||||
|
Injection Unit
|
Screw diameter
|
mm
|
Ф36
|
Ф42
|
Ф46
|
Ф48
|
||||||
|
|
Maximum injection pressure
|
Kg/cm2
|
2074
|
1523
|
1270
|
1166
|
||||||
|
|
Theoretical shot volume
|
cm3
|
162
|
221
|
266
|
289
|
||||||
|
|
Maximum shot weight（PS）
|
g/Oz
|
150/5.3
|
203/7.1
|
245/8.7
|
266/9.4
|
||||||
|
|
Injection rate
|
cm3/sec
|
88
|
120
|
134
|
157
|
||||||
|
Clamping Unit
|
Clamping force
|
ton
|
85
|
|
|
|
||||||
|
|
tie bar distance
|
mm
|
510× 360
|
|
|
|
||||||
|
|
Minimum mold thickness
|
mm
|
200/300（customization）
|
|
|
|
||||||
|
|
Opening stroke
|
mm
|
250
|
|
|
|
||||||
|
|
Open daylight
|
mm
|
450/550（customization）
|
|
|
|
||||||
|
|
Ejector force
|
T
|
2.2
|
|
|
|
||||||
|
|
Ejector stroke
|
mm
|
65
|
|
|
|
||||||
|
Others
|
Pump motor power
|
Kw
|
11
|
|
|
|
||||||
|
|
Hydraulic system pressure
|
Kg/cm2
|
140
|
|
|
|
||||||
|
|
Barrel heating power
|
Kw
|
7
|
|
|
|
||||||
|
|
Total wattage
|
Kw
|
18
|
|
|
|
||||||
|
|
Oil tank capacity
|
L
|
390
|
|
|
|
||||||
|
|
Machine weight (approx.)
|
T
|
3.1
|
|
|
|
||||||
|
|
Machine dimensions(approx.)
|
m
|
2.0×1.3× 3.1
|
|
|
|
||||||
1.Are you a manufacturer or a trading company?
We are professional vertical injection molding machine manufacturer in China.
2.Why Choose you?
We have high quality, professional team, good service, and competitive prices.
3.How can you guarantee quality?
Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.
4.Do you accept my own design?
We can provide OEM/ODM service
5.When can I get my machine after I paid?
We will deliver the machines on time as the date we agreed.
