Quick Details
-
Table Travel (Y) (mm):
-
400
-
Dimension(L*W*H):
-
2400*2000*2300
-
Weight (T):
-
3.8 T
-
Range of Spindle Speed(r.p.m):
-
1 - 10000 r.p.m
-
Spindle Motor Power(kW):
-
7.5
-
Max. Table Load(kg):
-
600 kg
-
Rapid Feed Speed(m/min):
-
24/24/24
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Matsumoto
-
Voltage:
-
380V optional
-
Table size:
-
800x400mm
-
T slot(number-width-pitch):
-
3-18x125
-
Max. spindle speed:
-
8000(Optional:10000)rpm
-
Spindle taper:
-
BT40
-
Main motor power:
-
7.5kw
-
X/Y/Z rapid traverse speed:
-
24/24/20 (Optional.48/48/36)m/min
-
Cutting feed speed:
-
1-10000 mm/min
-
Max. tool diameter:
-
90mm
-
Spindle drive mode:
-
timing belt
-
Tool magazine:
-
Arm 24(Optional:16 Armless)
Quick Details
-
Table Size (mm):
-
800*400
-
Number of Axes:
-
3
-
Table Travel (X) (mm):
-
700
-
Table Travel (Y) (mm):
-
400
-
Dimension(L*W*H):
-
2400*2000*2300
-
Weight (T):
-
3.8 T
-
Range of Spindle Speed(r.p.m):
-
1 - 10000 r.p.m
-
Spindle Motor Power(kW):
-
7.5
-
Max. Table Load(kg):
-
600 kg
-
Rapid Feed Speed(m/min):
-
24/24/24
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Matsumoto
-
Voltage:
-
380V optional
-
Table size:
-
800x400mm
-
T slot(number-width-pitch):
-
3-18x125
-
Max. spindle speed:
-
8000(Optional:10000)rpm
-
Spindle taper:
-
BT40
-
Main motor power:
-
7.5kw
-
X/Y/Z rapid traverse speed:
-
24/24/20 (Optional.48/48/36)m/min
-
Cutting feed speed:
-
1-10000 mm/min
-
Max. tool diameter:
-
90mm
-
Spindle drive mode:
-
timing belt
-
Tool magazine:
-
Arm 24(Optional:16 Armless)
Recommend Products
Products Description
Details Images
Product Paramenters
Application:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:

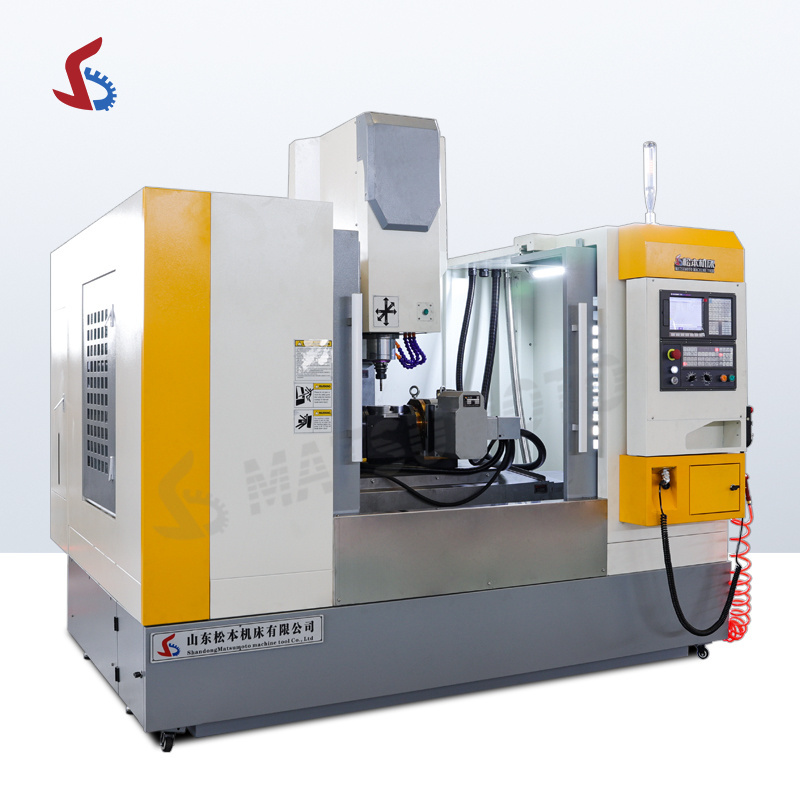

This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
Product main technical parameters:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
Product main technical parameters:
|
Specifications
|
|
Units
|
VMC650
|
|
|
Table size
|
|
mm
|
800x400
|
|
|
Max.worktable load
|
|
kg
|
600
|
|
|
T slot(number-width-pitch)
|
|
mm
|
3-18x125
|
|
|
X axis travel
|
|
mm
|
700（optional 800）
|
|
|
Y axis travel
|
|
mm
|
400（optional 500）
|
|
|
Z axis travel
|
|
mm
|
500
|
|
|
Distance between spindle nose and worktable surface
|
|
mm
|
120-620
|
|
|
Distance from spindle center to guide rail base
|
|
mm
|
650
|
|
|
Spindle taper
|
|
/
|
BT40
|
|
|
Range of revolution
|
|
r/min
|
50-8000
|
|
|
Maximum output torque
|
|
N.m
|
48
|
|
|
Main motor power
|
|
kw
|
7.5/11
|
|
|
Spindle drive mode
|
|
/
|
timing belt
|
|
|
Handle model
|
|
/
|
MAS403 BT40
|
|
|
Pull - nail model
|
|
/
|
MAS403 BT40-I
|
|
|
X/Y/Z rapid traverse speed
|
|
m/min
|
24/24/24 (Optional.36/36/36)
|
|
|
3-axis drive motor power (X/Y/Z)
|
|
kw
|
2.3/2.3/2.8
|
|
|
3-axis drive motor torque (X/Y/Z)
|
|
Nm
|
10/10/18
|
|
|
Feed speed
|
|
mm/min
|
1-20000
|
|
|
Tool magazine
|
|
/
|
Arm 24（Optional:16 Armless）
|
|
|
Tool change type
|
|
/
|
Two-way nearby knife selection
|
|
|
Max tool length
|
|
mm
|
300
|
|
|
Max. tool weight
|
|
kg
|
8
|
|
|
Change change time (knife to knife)
|
|
s
|
1.8（armless 8s）
|
|
|
PositionaI accuracy X axis
|
|
mm
|
±0.016
|
|
|
PositionaI accuracy Y axis
|
|
mm
|
±0.012
|
|
|
PositionaI accuracy Z axis
|
|
mm
|
±0.012
|
|
|
Repeated positioning accuracy X axis
|
|
mm
|
±0.010
|
|
|
Repeated positioning accuracy Y axis
|
|
mm
|
±0.008
|
|
|
Repeated positioning accuracy Z axis
|
|
mm
|
±0.008
|
|
|
Machine weight
|
|
kg
|
3800
|
|
|
Total electrical capacity
|
|
KVA
|
20
|
|
|
Overall dimension
|
|
mm
|
2450*2250*2300
|
|
