Quick Details
-
Color:
-
White and Brown
-
Certification:
-
ISO9001,IOS14001,TUV
-
Feature:
-
High Temperature Resistance
-
Usage:
-
Insulation Protection
-
Advantage:
-
High quality ,Fast delievery and Factory price
-
Standard:
-
ANSI
-
Packing:
-
Wooden Case
Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
js
-
Model Number:
-
53-1, 53-2, 53-3, 53-4, 53-5,ed-2b,1617,1618
-
Color:
-
White and Brown
-
Certification:
-
ISO9001,IOS14001,TUV
-
Feature:
-
High Temperature Resistance
-
Usage:
-
Insulation Protection
-
Advantage:
-
High quality ,Fast delievery and Factory price
-
Standard:
-
ANSI
-
Packing:
-
Wooden Case
ED-2B / ED-2C / 1617 / 1618

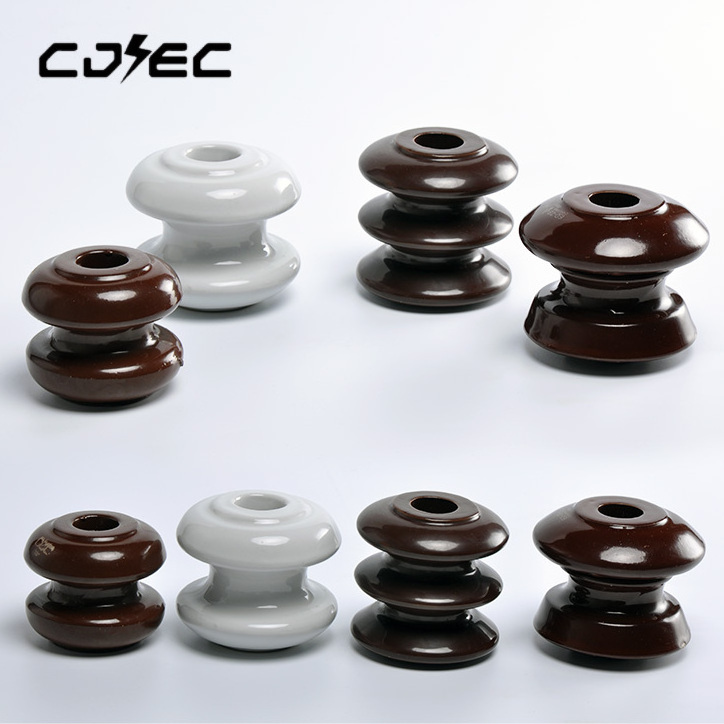

The spool insulator is equipped with more than two umbrella buildings. The conductor is bound in the middle of the upper and lower umbrella buildings, and the center is perforated. It is fixedly connected to the cross arm or splint with threading nails
53-1, 53-2, 53-3, 53-4, 53-5
| Spool type insulators | ||||||
| ANSI Class | 53-1 | 53-2 | 53-3 | 53-4 | 53-5 | |
| Dimensions | ||||||
| Diameter | mm | 57 | 79 | 76 | 105 | 102 |
| Height | mm | 54 | 76 | 81 | 76 | 105 |
| Mechanical Values | ||||||
| Tensile Strength | kn | 9.1 | 13.6 | 18.2 | 20.5 | 27.3 |
| Electrical Values | ||||||
| Low frequency dry flashover voltage | kv | 20 | 25 | 25 | 25 | 35 |
| Low frequency wet flashover voltage,vertical | kv | 8 | 12 | 12 | 12 | 18 |
| Low frequency wet flashover voltage,horizontal | kv | 10 | 15 | 15 | 15 | 26 |
| Packing and Shipping Data | ||||||
| Net weight,approximate | kg | 0.22 | 0.55 | 0.60 | 1.15 | 1.20 |
