Quick Details
-
Model Number:
-
88-13
-
Product name:
-
Kuoyuh 88 series 13A thermal circuit breaker
-
Rated current:
-
3A-30A
-
Rated voltage:
-
125VAC/250VAC/32VDC
-
Material:
-
Bakelite
-
Application:
-
Circuit-breaking
-
Reset Type:
-
Manual push reset
-
Product type:
-
Overload Thermal Protector
-
Rated short circuit capacity:
-
125VAC/1000A,250VAC/1000A
-
Rated breaking capacity:
-
1.5 Times Rated Currrent
-
Certificate:
-
CCC/TUV/IEC/VDE/SAA
Quick Details
-
Rated Voltage:
-
32VDC
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
KUOYUH
-
Model Number:
-
88-13
-
Product name:
-
Kuoyuh 88 series 13A thermal circuit breaker
-
Rated current:
-
3A-30A
-
Rated voltage:
-
125VAC/250VAC/32VDC
-
Material:
-
Bakelite
-
Application:
-
Circuit-breaking
-
Reset Type:
-
Manual push reset
-
Product type:
-
Overload Thermal Protector
-
Rated short circuit capacity:
-
125VAC/1000A,250VAC/1000A
-
Rated breaking capacity:
-
1.5 Times Rated Currrent
-
Certificate:
-
CCC/TUV/IEC/VDE/SAA
Product Description

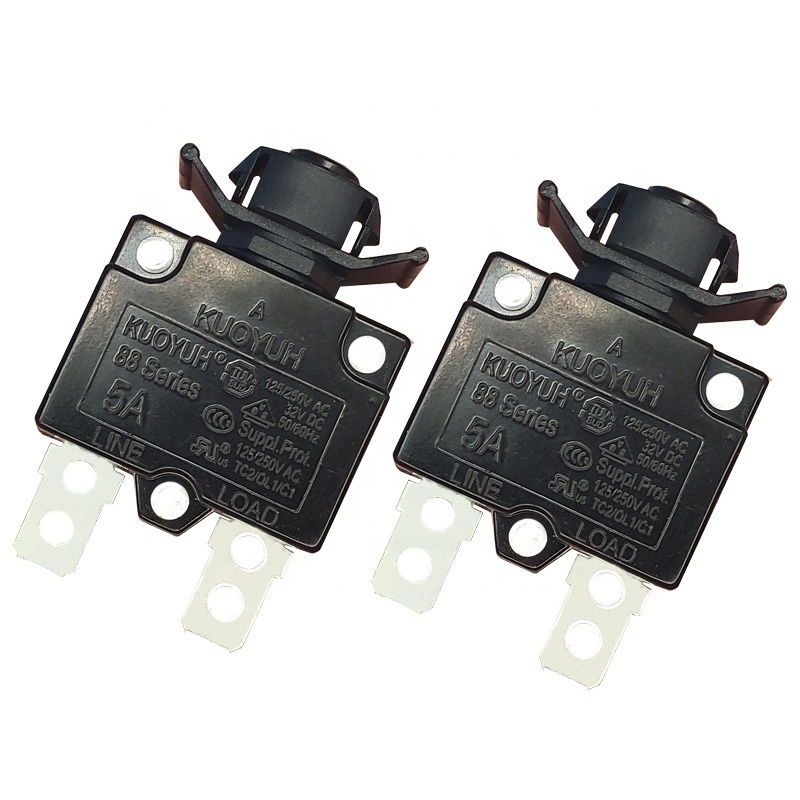

Kuoyuh 88 Series 5A thermal overload protector circuit breaker for pump motorhermal protector.
Technical data
Current rating range:3~30A
Input voltage rating :125/250VAC; 32/50VDC
Interrupting Capacity : 125/250VAC x 1,000A(UL 1077)
Typical life : 1,000 operations at 200% overload
Insulation co-ordination:Rated impulse withstand voltage 2.5kV
Dielectric Strength:> 1.500VAC/min.
Insulation Resistance:>100MOHM (DC 500V)
Degree of protection:Terminal area IP00, operating area IP40.
Input voltage rating :125/250VAC; 32/50VDC
Interrupting Capacity : 125/250VAC x 1,000A(UL 1077)
Typical life : 1,000 operations at 200% overload
Insulation co-ordination:Rated impulse withstand voltage 2.5kV
Dielectric Strength:> 1.500VAC/min.
Insulation Resistance:>100MOHM (DC 500V)
Degree of protection:Terminal area IP00, operating area IP40.
Mechanical/Environmental Data
Operating Ambient Temperature: -10℃ to +60℃
Mounting: Various options. See Ordering Information and drawings
Termination: 250’’(6.35mm）quick connects or solder terminals.
Mounting: Various options. See Ordering Information and drawings
Termination: 250’’(6.35mm）quick connects or solder terminals.
Calibration(at25℃)
100% of Rated Current: Hold , No Trip
300% of Rated Current: 1.5-5.0 sec Trip
200% of Rated Current: 5-30 sec Trip
150% ofRated Current: Trip Within 1 Hour.
300% of Rated Current: 1.5-5.0 sec Trip
200% of Rated Current: 5-30 sec Trip
150% ofRated Current: Trip Within 1 Hour.
Approval
Approval & File No Rated current Rated voltage
CUL UL E155159 3- 30A 125/250VAC; 50VDC
TUV SUD B15 09 58611 007 3-20A 125/250VAC; 32VDC
VDE 40036160 3-16A 125/250VAC
CSA 102199 3-16A 250VAC
IEC 60934 3-20A 250VAC
CUL UL E155159 3- 30A 125/250VAC; 50VDC
TUV SUD B15 09 58611 007 3-20A 125/250VAC; 32VDC
VDE 40036160 3-16A 125/250VAC
CSA 102199 3-16A 250VAC
IEC 60934 3-20A 250VAC
Application
Typical Applications
Tarnsforms, Motors, Battery chargers, Power supplies, appliancesextra low voltage systems, machinery.
