Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Feebest
-
Car Model:
-
Fit for European Car
-
Product name:
-
QVB500660 Power Steering Pump Fit for Land Rover Discovery 3
-
Material:
-
Steel and aluminum
-
Fitting position:
-
Steering system
-
Usage:
-
Direct Fit
-
Function:
-
Reduce steering force on steering wheel
-
Part Number:
-
GL0339
-
Type:
-
Power Steering Pump
-
Classification:
-
Mechanical & power steering system
-
Spring Material:
-
Steel
-
Power source type:
-
Electrical Power
Quick Details
-
OE NO.:
-
QVB500660
-
Size:
-
Standard Size
-
Warranty:
-
1 Year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Feebest
-
Car Model:
-
Fit for European Car
-
Product name:
-
QVB500660 Power Steering Pump Fit for Land Rover Discovery 3
-
Material:
-
Steel and aluminum
-
Fitting position:
-
Steering system
-
Usage:
-
Direct Fit
-
Function:
-
Reduce steering force on steering wheel
-
Part Number:
-
GL0339
-
Type:
-
Power Steering Pump
-
Classification:
-
Mechanical & power steering system
-
Spring Material:
-
Steel
-
Power source type:
-
Electrical Power

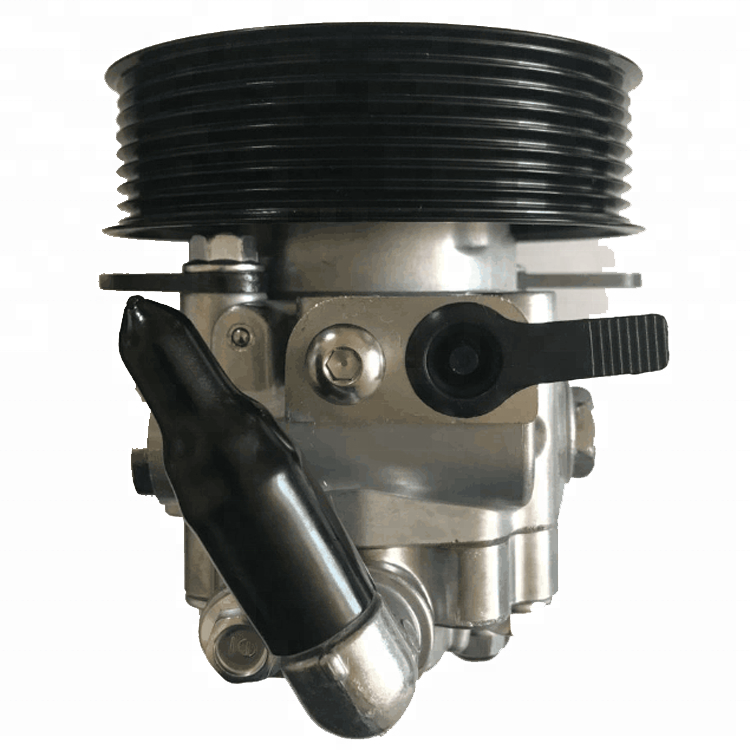

QVB500660 Power Steering Pump Fit for Land Rover Discovery 3 2005-2009
The power steering pump is driven by the engine to convert the low-pressure oil in the tank into high-pressure oil and deliver it to the steering control valve.
1. The power steering pump is the power source of the hydraulic power steering system. It uses the engine as the transmission medium to convert the mechanical energy into hydraulic energy. The steering gear converts the hydraulic energy into mechanical energy through the hydraulic oil output from the oil pump, thereby reducing the driver's operation strength and improve the maneuverability of the vehicle;
2. Control the internal pressure of the power steering pipeline through the pressure safety valve to ensure the safety of the steering system;
3. Control the flow of the steering system through the flow control valve to ensure the driver's steering feel when the vehicle is driving at high speed.
(1) Reducing the steering force on the steering wheel, especially in the in-situ steering and low-speed large-angle steering to reduce the steering force;
(2) Improved steering sensitivity. Starting from the contradiction between the light steering and the steering sensitivity, the power steering solves the problem of steering lightness, so that the steering gear design can select a more suitable steering gear according to the different requirements of the vehicle layout. The speed ratio improves the sensitivity of the steering system and allows for a more reasonable selection of the number of turns of the steering wheel. This is more obvious for cars that are often driven on roads in mountainous areas (especially on more sharp bends);
(3) reducing the impact of ground recoil on the steering wheel;
(4) In the case of a wheel blasting, the sudden steering of the wheel can be better prevented, thereby improving safety;
(5) The allowable load of the steering wheel is large, and the degree of freedom of the overall arrangement can be increased.
|
Product Name |
QVB500660 Power Steering Pump Fit for Land Rover Discovery 3 2005-2009 |
|
OE Number |
QVB500660 |
| Part Number | GL0339 |
| Car Description |
Fit for Land Rover Discovery 3 2005-2009 Fit for Range Rover Sports 2005-2009 2.7L V6 Diesel |
| Fitting Position | Steering system |
| Characteristics |
Ozone resistant,High / Low temperature resistant /
Hot air aging resistant /Oil resistant / Electric conduction / Static and Dynamic Stiffness /Rubber Fatigue-proof/ High tensile strength/ Low Temperature Brittleness/Salt Spray Test/Pulling-out Force or Pressing-out Force Test |
| Component | 1. Drive wheel 2. Drive shaft 3. Snap spring 4. Oil seal 5. Bearing 6. Pump body 7. Steel ball 8. Pressure switch assembly 9. O-ring 10. Pressure plate 11. Stator 12. Blade 13. Rotor 14. Bolt 15. Pump cover 16. Sealing ring 17. Locating pin 18. Protective plug 19. Bolt 20. Inlet pipe 21. O-ring 22. Valve plug 23. Spring 24. Spool valve assembly |
| OEM/ODM | Accepted |
| Classification |
1, from the distribution of models,it can be divided into: commercial vehicle steering pump and passenger car steering pump.
2. From the structural form, it can be divided into: vane type steering pump, gear type steering pump and plunger type steering pump; among them, double-acting vane type steering pump has various advantages such as small size, low noise and high volumetric efficiency. 3, from the drive form, can be divided into: gear-driven steering pump, pulley-driven steering pump, cross-slip (spline) steering pump; wherein the pulley drive steering pump is mainly used to drive passenger cars with less torque Gear-driven and cross-slide keys are more common on commercial vehicles. |
| Product Fit | Direct Fit |
| Warranty | 12 Months |
| MOQ | 20 pcs |
| Packaging | Pallet + Carton |
| Delivery | 3~ 7 days for stock item, 15~3 5 days for mass production |
