Quick Details
-
Ejector Number:
-
1+12
-
Ejector Stroke(mm):
-
180 mm
-
Ejector Force(kN):
-
70 kN
-
Theoretical Shot Volume(cm³):
-
538 cm³
-
Injection Rate (g/s):
-
190 g/s
-
Injection Weight (g):
-
490 g
-
Screw Speed (rpm):
-
1 - 178 rpm
-
Screw diameter (mm):
-
60 mm
-
Screw L/D Ratio:
-
23
-
Distance between Tie Bars:
-
660x610
-
Weight (KG):
-
9300 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
615 mm
-

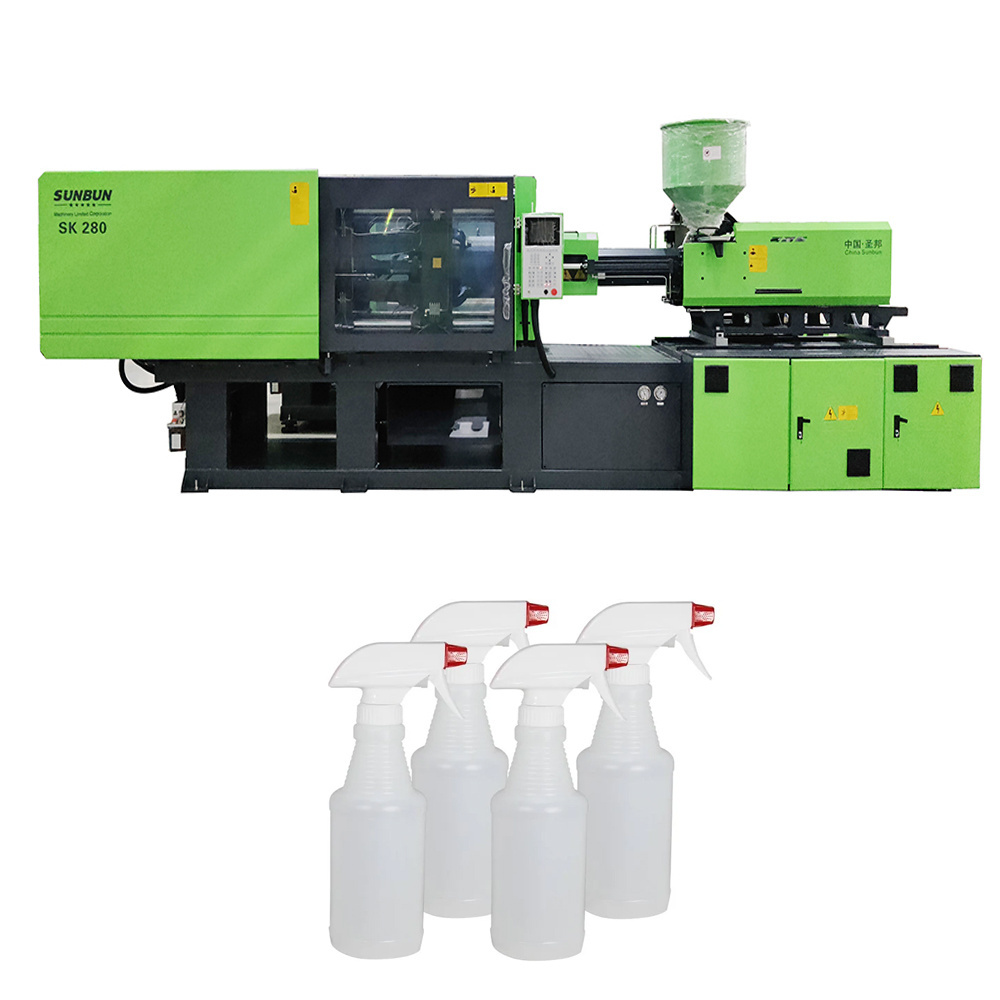

Model Number:
-
SK280A
-
Brand Name:
-
SUNBUN
-
Power (kW):
-
30 kW
-
Certification:
-
CE, ROHS
-
Marketing Type:
-
New Product 2021
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
660mm
-
Distance between Tie Bars(Height)(mm):
-
610mm
-
Mold Height(mm):
-
240 - 620 mm
-
Ejector Number:
-
1+12
-
Ejector Stroke(mm):
-
180 mm
-
Ejector Force(kN):
-
70 kN
-
Theoretical Shot Volume(cm³):
-
538 cm³
-
Injection Rate (g/s):
-
190 g/s
-
Injection Weight (g):
-
490 g
-
Screw Speed (rpm):
-
1 - 178 rpm
-
Screw diameter (mm):
-
60 mm
-
Screw L/D Ratio:
-
23
-
Distance between Tie Bars:
-
660x610
-
Weight (KG):
-
9300 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
615 mm
-
Model Number:
-
SK280A
-
Brand Name:
-
SUNBUN
-
Power (kW):
-
30 kW
-
Certification:
-
CE, ROHS
-
Marketing Type:
-
New Product 2021
Product Description
SK SERIES MECHANICAL VERTICAL-COMPRESSION STRUCTURE
Resilient mould thickness and long displacement stroke
Reasonable oil circuit design, which is more energy-saving,
improves the operating speed and can save 2%-6% raw
materials from 90% products for the customers.
improves the operating speed and can save 2%-6% raw
materials from 90% products for the customers.
Reinforced molding board, thicker pull rod, high rigidity frame, with more stable operation state and longer service life.
TRADITIONAL STRUCTURE
Mechanical Vertical-Compression Structure Applied by Sunbun Injection Molding Machine
1.100% clamping use ratio, 10%-20% higher than that of traditional structures;
2. Less fins on the finished products;
3. 2%-6% raw materials saved from production than that of traditional structures;
4. Effective protection for the mould, molding board, and pull rod;
5. A opening stroke 10%-20% longer than that of traditional structures;
6. Less deformation caused by cooling of the products.
2. Less fins on the finished products;
3. 2%-6% raw materials saved from production than that of traditional structures;
4. Effective protection for the mould, molding board, and pull rod;
5. A opening stroke 10%-20% longer than that of traditional structures;
6. Less deformation caused by cooling of the products.
Specification
|
Injection Part
|
Item/type
|
Unit
|
SK280/ C1200
|
|
|
|
|||
|
|
Screw type
|
|
A
|
B
|
C
|
D
|
|||
|
|
Screw diameter
|
mm
|
50
|
55
|
60
|
65
|
|||
|
|
Screw diame-ter ratio
|
L/D
|
23
|
21
|
22
|
20
|
|||
|
|
Theoretical injection volume
|
cm³
|
538
|
650
|
774
|
909
|
|||
|
|
Injection volume (PS)
|
g
|
490
|
592
|
704
|
827
|
|||
|
|
Maximum rate for inject-ion to air
|
cm³/s
|
190
|
230
|
270
|
322
|
|||
|
|
Injection pressure
|
MPa
|
223
|
184
|
155
|
132
|
|||
|
|
Injection stroke
|
mm
|
274
|
|
|
|
|||
|
|
Maximum injection speed
|
mm/s
|
97
|
|
|
|
|||
|
|
Maximal Rotational Speed of Screw
|
r/min
|
178
|
|
|
|
|||
|
Clamping Part
|
Clamp Tonnage
|
KN
|
2800
|
|
|
|
|||
|
|
Toggle stroke
|
mm
|
615
|
|
|
|
|||
|
|
Distance between tie bars
|
mmxmm
|
660x610
|
|
|
|
|||
|
|
Maximum mould height
|
mm
|
620
|
|
|
|
|||
|
|
Minimum mould height
|
mm
|
240
|
|
|
|
|||
|
|
Ejection stroke
|
mm
|
180
|
|
|
|
|||
|
|
Ejector force forward
|
KN
|
70
|
|
|
|
|||
|
|
Ejector force backard
|
KN
|
45
|
|
|
|
|||
|
|
Amount of die thimble
|
Pcs
|
1+12
|
|
|
|
|||
|
|
System pressure
|
Mpa
|
17.5
|
|
|
|
|||
|
|
Motor power
|
KW
|
30
|
|
|
|
|||
|
|
Heater power
|
KW
|
17.25/18.55
|
|
|
|
|||
|
|
Quantity of temperature-control zones
|
|
1+4
|
|
|
|
|||
|
|
Bucket capacity
|
KG
|
50
|
|
|
|
|||
|
|
Oil tank capacity
|
L
|
350
|
|
|
|
|||
|
|
Boundary dimension(L×W×H)
|
m
|
6.4x1.6x2.1
|
|
|
|
|||
|
|
Machine weight
|
Ton
|
9.3
|
|
|
|
|||
INJECTION SYSTEM
CLAMPING SYSTEM
HYDRAULIC SYSTEM
ELECTRONIC CONTROL SYSTEM
Application
Auto parts
Sanitation products
Medical field
Black and white household appliance
Toy industry
Home appliances
Powder box
Lipstick
Shoes material products
