small quick hot water circulating pump in floor heating system manufactures

small quick hot water circulating pump in floor heating system manufactures

FOB Reference Price: Get Latest Price

≥200 Pieces

US $12

≥1000 Pieces

US $11

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 1 years

Brand Name:: OYAD

Model Number:: CRS25-180

Place of Origin:: Zhejiang, China

Horsepower:: 72W

Cable Length:: 1.2m

Outlet Size:: 1.5"

Power:: 72W, Electric

motor:: copper

Usage:: Water

Standard or Nonstandard:: Standard

Theory:: Centrifugal Pump

color:: OEM

Fuel:: electric

Quick Details

Application:: Commercial Buildings, Family Homes, HVAC OEM, Water Distribution

Pressure:: High Pressure

Voltage:: 220V

Warranty:: 1 years

Brand Name:: OYAD

Model Number:: CRS25-180

Place of Origin:: Zhejiang, China

Horsepower:: 72W

Cable Length:: 1.2m

Outlet Size:: 1.5"

Power:: 72W, Electric

motor:: copper

Usage:: Water

Standard or Nonstandard:: Standard

Theory:: Centrifugal Pump

color:: OEM

Fuel:: electric

Hot sale products

Energy saving circulation pump

Class A

EEI<0.23

best sell home booster pump for shower

hot water circulation booster pump

CRS15/9 CRS15/10

Product Overview

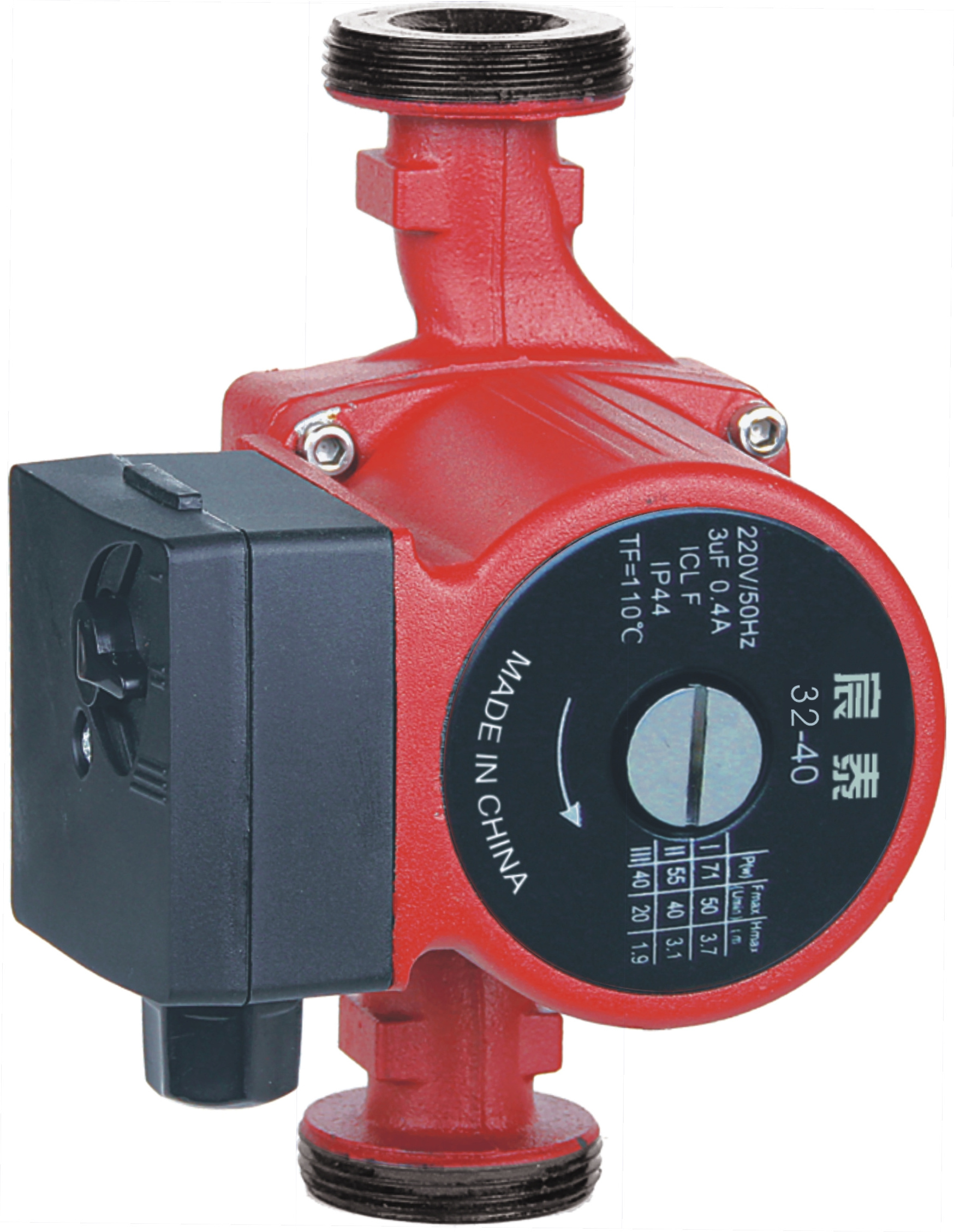

hot water circulating pump residential

heating pump / circulation pump with 2 screws and 2 seals. The circulation pump is designed for the circulation of water in heating systems. The pump housing is made of cast iron, the rest of the housing is made of aluminium and motor wire is made of 100% copper. The motor has three speed settings. This allows you to adjust the pump to the needs of your installation.

FEATURES AT A GLANCE

The product complies with all European standards. The installation dimensions are standard dimensions and compatible with other manufacturers.

* Working temperature: 2-110 °C.
* Cast iron housing.
* With manual 3-stage speed switch
* CE, TÜV-GS ， IP 44

high-quality ceramic bearing for a long service life - cast iron housing - maximum pressure: 10 bar.

PRODUCT SPECIFICATIONS

Model name	Power	Head	Flow	Input&outlet
CRS15/4-180	71/50/35	4/3/2	35	3/4“ to 1/2“
CRS15/6-180	93/67/46	6/5/3	45	3/4“ to 1/2“
CRS20/4-180	71/50/35	4/3/2	45	1” to 3/4”
CRS20/6-180	93/67/46	6/5/3	45	1” to 3/4”
CRS25/4-180	71/50/35	4/3/2	50	1.5” to 1“
CRS25/6-180	93/67/46	6/5/3	56	1.5” to 1“
CRS25/7-180	130/115/65	7/6/4	60	1.5” to 1“
CRS25/8-180	245/230/150	8/7/5	115	1.5” to 1“
CRS32/4-180	71/50/35	4/3/2	52	2” to 1.5“
CRS32/6-180	93/67/46	6/5/3	58	2” to 1.5“
CRS32/8-180	245/230/150	8/7/5	135	2” to 1.5“
CRS15/9	100	9	35	3/4“ to 1/2“
CRS15/10	120	10	40	3/4“ to 1/2“
