Quick Details
-
Pins:
-
48P
-
Place of Origin:
-
China
-
Product Name:
-
Auto ECU Connector 48pin
-
Color:
-
Black
-
Sealed/Unsealed:
-
Sealed
-
Function:
-
Replacement of Molex
-
Housing Material:
-
PBT+30%GF
-
Terminal Material:
-
Copper Alloy
-
Temperature range:
-
-40℃~+120℃
-
Angle:
-
Right Angle Version for PCB
-
Certification:
-
ISO9001
-
Service:
-
Trustworthy & Timely
Quick Details
-
Type:
-
ADAPTER
-
Application:
-
Automotive
-
Gender:
-
Male
-
Pins:
-
48P
-
Place of Origin:
-
China
-
Product Name:
-
Auto ECU Connector 48pin
-
Color:
-
Black
-
Sealed/Unsealed:
-
Sealed
-
Function:
-
Replacement of Molex
-
Housing Material:
-
PBT+30%GF
-
Terminal Material:
-
Copper Alloy
-
Temperature range:
-
-40℃~+120℃
-
Angle:
-
Right Angle Version for PCB
-
Certification:
-
ISO9001
-
Service:
-
Trustworthy & Timely
Product Description
Factory Direct Supply

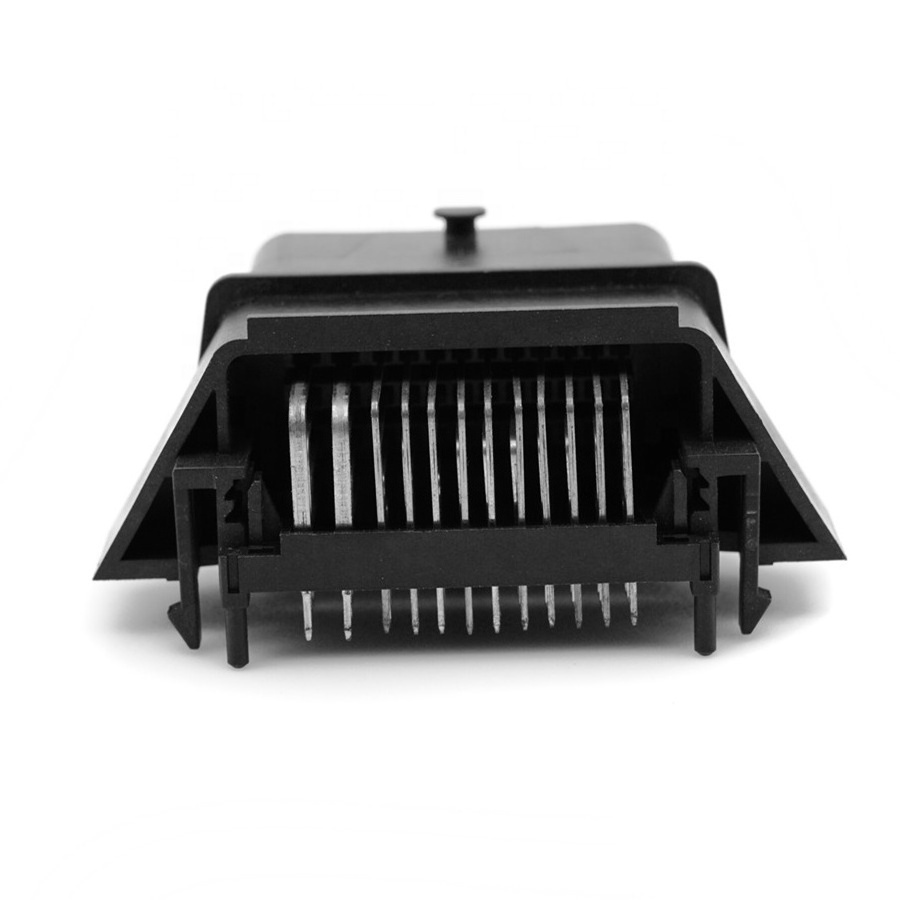

48 pin car electrical waterproof male ECU Connector Molex 500762 for PCB
We provide automotive multi pin connectors，suitable for cars, motorcycles, electric vehicles and other mechanical electrical equipment PCB connector.
|
Material
|
Housing:PBT+30%GF
Terminal:Copper Alloy,TIN plated
|
|
Color
|
Black
|
|
Contact Retention to Housing
|
0.63mm terminal:40N Min.
1.5mm terminal:80N Min.
|
|
Durability
|
20 mating cycles
|
|
Rated Current
|
0.63mm terminal:2.5A Max.
1.5mm terminal:5A Max.
|
|
Rated Volts
|
500V
|
|
Contact Resistance
|
0.63mm terminals:20mΩ Max.
1.5mm terminals:10mΩ Max.
|
|
Dielectic Withstanding Voltage
|
1000VAC For 1minute
|
|
Insulation Resistance
|
100MΩ Min.
|
|
Temperature Range
|
-40℃~+120℃
|
Products Show
Did you know?
Over 90% of our current customers began by testing our products before they made a purchase. The result? High success rates with extreme accuracy, reliability, and long-term stability. How can you argue with that?
Get A Free Test Sample Now！
Business Solution
Not Only Supplier, But Also Good Business Partner
For Engineers
We know you need the most effictive connecting solutions. For that, our engineering R&D team will work closely with you to find the best solution based on the application scenarios of connectors. Besides, samples are available, and products are shipped quickly from our plant to meet your testing and production demands.
For Buyers
We know you need super products,super values and super service. You will find us make your job easy, because we understand your specific needs.We do our best to help you enhance market competitiveness by stablely high-quality product performance. Besides, we also strive to help you optimize sourcing cost and upgrade the efficiency by reasonable pricing strategy and flexible production.
Customized Solution
1.Requirements Communication
2.Product Design
3.Solution Confirmation
4.Solution Execution
5.Sample Confirmation
6.Mass Production
Product Category
A Wide Range Of Connectors
（Click every picture to view more products）
Wire to Board Connector
ECU Connector/Other Auomotive Connector：Widely used in automotive electronic systems, such as ECU/BCM/BMS/ABS.
