Quick Details
-
Brand Name:
-
swiott
-
Supplier Type:
-
Module
-
Material:
-
SOP/QFP/SMD/DIP
-
Function:
-
LoRa wireless communication module with SX1276 chipset
-
Feature:
-
Easy to use
-
Usage:
-
"IoT data transmission"
Quick Details
-
Application:
-
IoT
-
Model Number:
-
NDn-700
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
swiott
-
Supplier Type:
-
Module
-
Material:
-
SOP/QFP/SMD/DIP
-
Function:
-
LoRa wireless communication module with SX1276 chipset
-
Feature:
-
Easy to use
-
Usage:
-
"IoT data transmission"
Product Description
Function introduction：

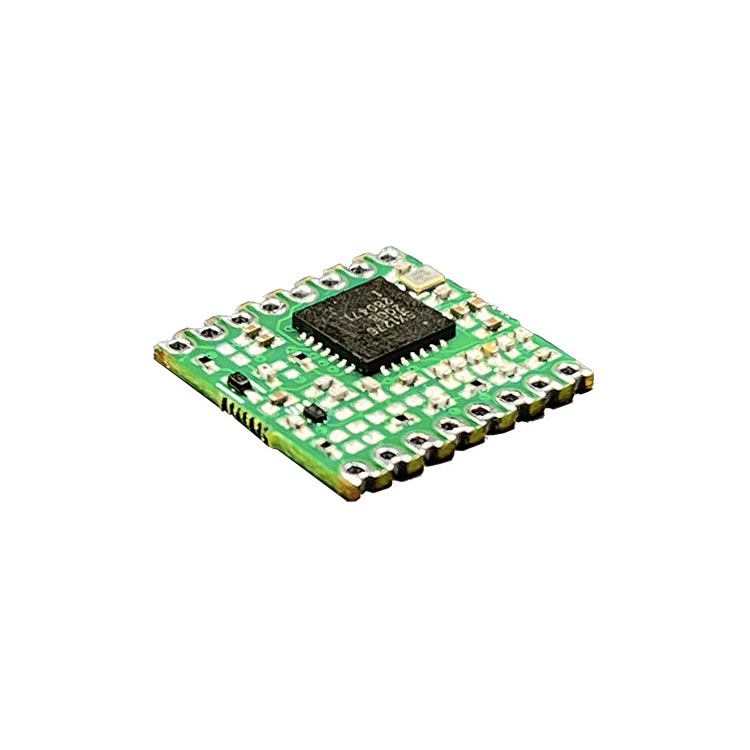

NDn-700 is a wireless chip using SEMTECH's latest LoRaTM modulation technology. In addition to the traditional GFSK modulation technology, this module also adopts LoRa spread spectrum technology and has ultra-long distance spread spectrum communication. Using LoRa mode can achieve a high sensitivity of -148dbm, and with the integrated power output of +20dbm, it can achieve ultra-long-distance transmission under low power. This module is suitable for any wireless data transmission applications with complex environments, such as: wireless copying Meters, smart home control, automotive electronics, security alarms, industrial monitoring and control systems, remote agricultural irrigation control systems and other applications. The module can be easily embedded into the customer's existing product or system design. The standard SPI interface makes communication easy and concise. Customers only need to compile a simple communication protocol on the original microcontroller device to realize bidirectional communication and data transmission.
Performance：
Half-duplex communication, super anti-interference , ISM multi-band, no need to apply for frequency for free use.
Multiple frequency options, multiple transmission rates, can be applied in FDMA and FM technology
Smart reset, low voltage monitoring, timed wake-up, low power mode, sleep mode
Low Power Receive Current：10-12mA
256 bit FIFOTX/RX
RSSI Channel detection function
transfer：FIFO/Direct(recommended FIF0 )
Ultra-long distance transmission up to 5KM
Specification
|
Material
|
SOP/QFP/SMD/DIP
|
|
|
|
|||
|
Function
|
LoRa wireless communication module with SX1276 chipset, which provides ultra long distance spread spectrum communication and has
super strong anti-interference capability and ultra low current consumption. Receiving sensitivity of more than -148dBm, crystal and materials cost low. The combination of high sensitivity and integrated +20dBm power amplifier reduces the industry's leading link budget, making it an ideal choice for long distance and stable performance applications. |
|
|
|
|||
|
Feature
|
Compact Size
Low-power dissipation
Long Range
Easy to use
|
|
|
|
|||
|
Usage
|
IoT
data transmission
|
|
|
|
|||
