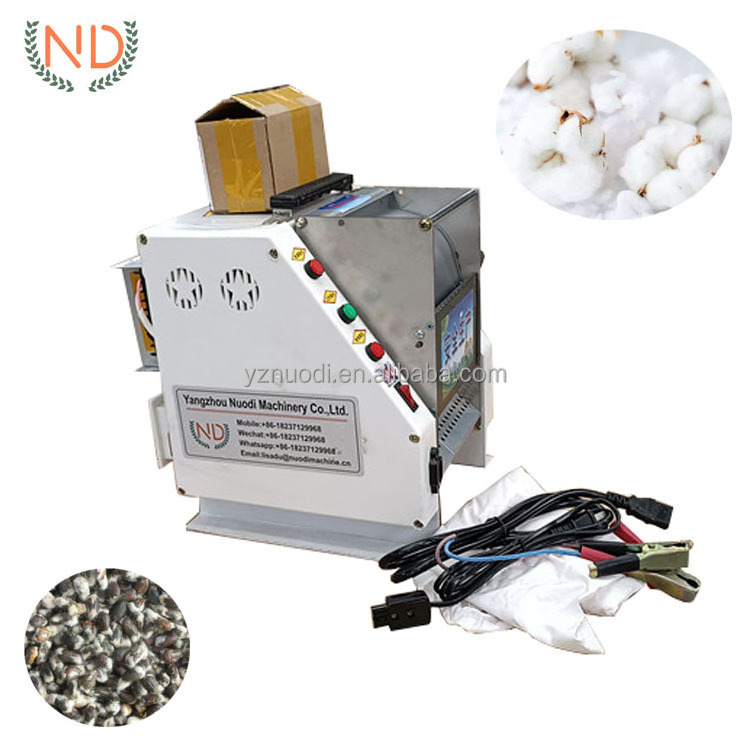

- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
NUODI
-
Power:
-
0.26kw
-
Weight:
-
22 KG
-
Dimension(L*W*H):
-
340*320*340mm
-
Application:
-
Cotton Seed Seperator
-
Function:
-
Automatic Cotton Gin Machine
-
Usage:
-
Seed Cotton Ginning Machine
-
Capacity:
-
500g/15second
-
Keywords:
-
cotton seed separating removing machine
-
Suitable for:
-
Separate Unginned Cotton
-
Raw material:
-
Cotton Seeds Ginning Ginned Seeds
Quick Details
-
Type:
-
Cotton ginning machine
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
NUODI
-
Power:
-
0.26kw
-
Weight:
-
22 KG
-
Dimension(L*W*H):
-
340*320*340mm
-
Application:
-
Cotton Seed Seperator
-
Function:
-
Automatic Cotton Gin Machine
-
Usage:
-
Seed Cotton Ginning Machine
-
Capacity:
-
500g/15second
-
Keywords:
-
cotton seed separating removing machine
-
Suitable for:
-
Separate Unginned Cotton
-
Raw material:
-
Cotton Seeds Ginning Ginned Seeds
Product Description
1.There are sawtooth cotton ginning machine and roller type cotton ginning machine.
2.The difference between hem is that the roller type cotton ginning machine separates the cotton fiber from the cotton seed by the traction of the roller. The sawtooth gin uses sawtooth to hook the cotton fiber to separate the fiber and cottonseed.
Advantages and disadvantages:
1.The cotton fiber processed by roller gin is longer and tougher than the cotton fiber processed by the sawtooth gin, but there are many impurities. It seems that the gloss is not high.
Principle: Rough but well-arranged rubber rollers pull the cotton fibers off, and a fixed blade separates the fibers and cotton seeds.
2.A large amount of cotton is generally processed by a sawtooth gin in the industry. The cotton fiber processed by a sawtooth gin is shorter than that of a roller gin and has a slightly lower toughness than a roller gin. However, it has less impurities and looks high gloss.
Principle: There are dozens of circular saw blades installed in the gin, and the fine serrations hook the cotton fiber off, and the fiber and cotton seed are separated by a fan.
Details Images
A.Cotton gin testing machine for lab
B.Roller type cotton ginning machine
|
Model
|
ND-RYH20A
|
ND-RYH50A
|
ND-RYH80A
|
ND-RYH100A
|
|
Capacity
|
10-20kg/h
|
30-60kg/h
|
60-80kg/h
|
110kg/h
|
|
Cotton ginning power
|
0.37kw
|
1.5-2.2kw
|
2.2-3kw
|
2.2-3kw
|
|
Speed
|
1440rpm
|
1440rpm
|
1400rpm
|
1440rpm
|
|
Roller size
|
115*205mm
|
140*505mm
|
150*805mm
|
160*1005mm
|
|
Seed breaking rate
|
<=2%
|
<=2%
|
<=2%
|
<2%
|
|
Rollers speed ratio
|
1:3:9
|
1:3:10
|
1:3:14
|
1:3.6:10.8
|
|
Weight
|
55kg
|
220kg
|
260kg
|
280kg
|
|
Size(mm)
|
450*450*740
|
1020*850*970
|
1250*950*980
|
1350*1030*980
|
Model 20 roller
type cotton ginning machine
Model 50
roller type cotton ginning machine
Model 80 roller type cotton ginning machine
Model 100 roller type cotton ginning machine
