Quick Details
-
Application:
-
Warehouse
-
Product Weight（kg）:
-
2.5
-
Model Number:
-
TR02-22SN1 -DFN1B
-
Lamp Body Material:
-
Aluminum Alloy, PC (fireproof)
-
Beam angle:
-
360 Degree
-
Certification:
-
CE, TUV, SAA, CB, RoHS
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
125
-
Warranty(Year):
-
5-Year
-
Type:
-
EUROPEAN
-
Application:
-
Warehouse
-
Product Weight（kg）:
-
2.5
-
Model Number:
-
TR02-22SN1 -DFN1B
-
Lamp Body Material:
-
Aluminum Alloy, PC (fireproof)
-
Beam angle:
-
360 Degree
-
Certification:
-
CE, TUV, SAA, CB, RoHS
Drawing:

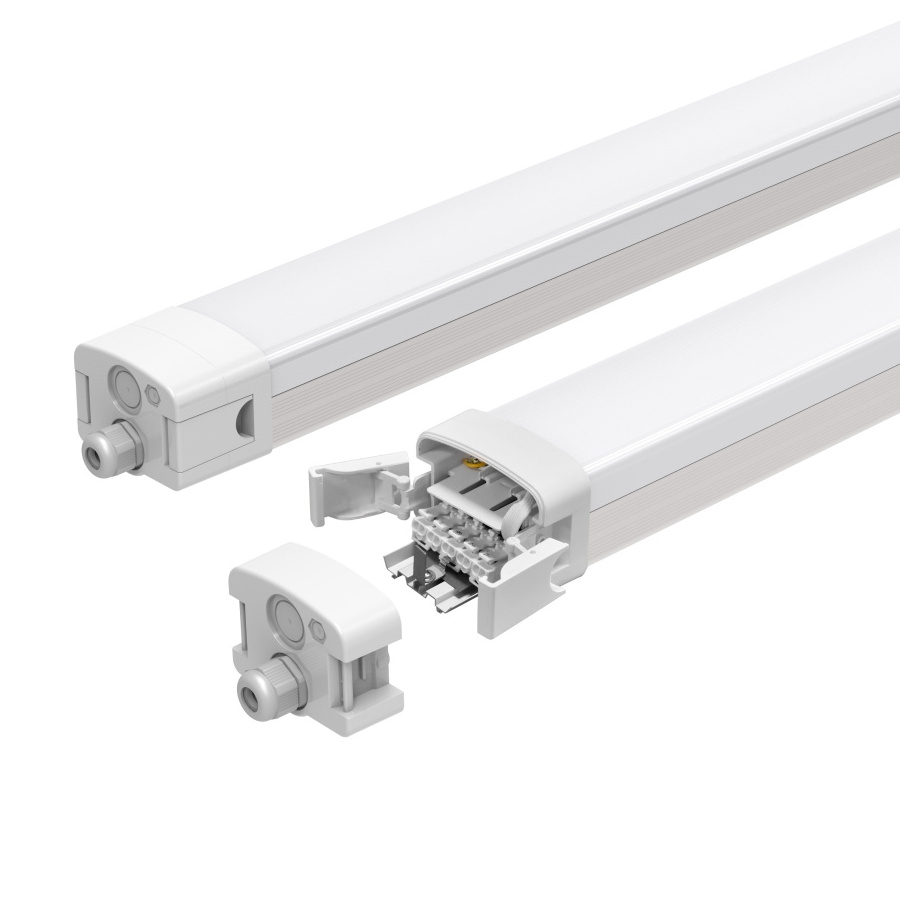

Product Description
Features:
> Special driver try for replacement.
> Singe or Double wiring.
> IP 65 /IK10 Approval.
> Multiple Link with double wiring.
> Patent aluminum case as heatsink.
> 5 years warranty.
Electrical:
> Power: 2ft=22W, 4ft=40W/60W, 5ft=40W/60W, 8ft=100W.
> Input voltage: AC100-130V, AC200-240V.
> Power Factor : >0.9, THD<15%.
> Power efficiency: >90%.
> Function : ON-OFF / 1-10V dimming / MS / DALI.
> Starting Time: <0.5S.
> Switching Cycle before Failure: >100,000 times.
> Microwave sensor option
Optical:
> High bright 2835 SMD LEDs, 100lm/W, 125lm/W, 140lm/W.
> CCT: WW:3000K NW:4000 PW:5000K CW:6000K, Tri-color:3000/5000K, Mixed:4000k.
> CRI: Ra80 or CRI90.
> Bean angle 120°.
> Cover: Clear or Milky PC
> Singe or Double wiring.
> IP 65 /IK10 Approval.
> Multiple Link with double wiring.
> Patent aluminum case as heatsink.
> 5 years warranty.
Electrical:
> Power: 2ft=22W, 4ft=40W/60W, 5ft=40W/60W, 8ft=100W.
> Input voltage: AC100-130V, AC200-240V.
> Power Factor : >0.9, THD<15%.
> Power efficiency: >90%.
> Function : ON-OFF / 1-10V dimming / MS / DALI.
> Starting Time: <0.5S.
> Switching Cycle before Failure: >100,000 times.
> Microwave sensor option
Optical:
> High bright 2835 SMD LEDs, 100lm/W, 125lm/W, 140lm/W.
> CCT: WW:3000K NW:4000 PW:5000K CW:6000K, Tri-color:3000/5000K, Mixed:4000k.
> CRI: Ra80 or CRI90.
> Bean angle 120°.
> Cover: Clear or Milky PC
Datasheet:
|
item
|
L=0.6M/2ft
|
L=1.2M/4ft
|
L=1.2M/4ft
|
L=1.5M/5ft
|
L=2.4M/8ft
|
||||
|
Rated powed
|
22W
|
40W
|
60W
|
60W
|
100W
|
||||
|
LED Tpye/Qty
|
143
|
234
|
325
|
325
|
520
|
||||
|
Lumen Efficacy
(Lm/w)
|
100/125/140
|
100/125/140
|
100/125/140
|
100/125/140
|
100/125/140
|
||||
|
Luminous Flux
|
2200~3050Lm
|
4000~5600Lm
|
6000~8400Lm
|
6000~8400Lm
|
10000~14000Lm
|
||||
|
Color Index
|
Ra>80 OR Ra>90
|
|
|
|
|
||||
|
Color
Temperature |
Single color:WW:3000K NW:4000 PW:5000K CW:6000K
Tri-color:3000/5000K, Mixed:4000k |
|
|
|
|
||||
|
Beam Angle
|
120 Degree
|
|
|
|
|
||||
|
Power Factor
|
PF>0.95
|
|
|
|
|
||||
|
Input Voltage
|
AC100~277V/50Hz
|
|
|
|
|
||||
|
Working Voltage
|
Constant DC36~42V
|
|
|
|
|
||||
|
Protection Class
|
IP65 | IK10
|
|
|
|
|
||||
|
Temperature
|
Operation:-15°C~+50°C Storage:-25°C~+55°C
|
|
|
|
|
||||
|
Life Span
|
50,000 hours
|
|
|
|
|
||||
|
Warranty
|
5 Years
|
|
|
|
|
||||
Dimension:
Microwave sensor:
Application:
> Replacement for fluorescent NCF.
> Warehouses , Factories, Car parks, Parking Lot, B asement, C ellar, G arage.
>Sports facilities, Outdoor & Indoor Locations.
> Replacement for fluorescent NCF.
> Warehouses , Factories, Car parks, Parking Lot, B asement, C ellar, G arage.
>Sports facilities, Outdoor & Indoor Locations.
Installation Instructions
Wiring Method:
Installation:
> Surface mounting procedure:
Package:
|
Product Type
|
Power
|
Carton Size
|
Qty./Carton
|
N.W./Unit
|
Gross Weight
|
|
60cm/2ft
|
22W
|
72*19*21.5cm
|
4pcs
|
1.33Kgs
|
8.0Kgs
|
|
120cm/4ft
|
40W / 60W
|
132*19*21.5cm
|
4pcs
|
2.35Kgs
|
12.5Kgs
|
|
150cm/6ft
|
40W / 60W
|
162*19*21.5cm
|
4pcs
|
3.10Kgs
|
15.5Kgs
|
|
240cm/8ft
|
100W
|
252*19*21.5cm
|
4pcs
|
4.60Kgs
|
24.0Kgs
|
