Quick Details
-
Item:
-
pole tent
-
Frame structure:
-
aluminum alloy 6061-T6 / 6N01-T6
-
Span:
-
40ft/60ft/80ft
-
Side height:
-
7.9ft
-
Tube diameter:
-
63mm
-
Roof cover:
-
850g/sqm double PVC- coated polyester textile,blackout
-
Side walls:
-
650g/sqm double PVC- coated polyester textile
-
Maximum wind loading:
-
100km/h
-
Connector:
-
Q235 galvanized steel
-
Color:
-
white, others available
Quick Details
-
Brand Name:
-
COSCO
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
PO1
-
Item:
-
pole tent
-
Frame structure:
-
aluminum alloy 6061-T6 / 6N01-T6
-
Span:
-
40ft/60ft/80ft
-
Side height:
-
7.9ft
-
Tube diameter:
-
63mm
-
Roof cover:
-
850g/sqm double PVC- coated polyester textile,blackout
-
Side walls:
-
650g/sqm double PVC- coated polyester textile
-
Maximum wind loading:
-
100km/h
-
Connector:
-
Q235 galvanized steel
-
Color:
-
white, others available

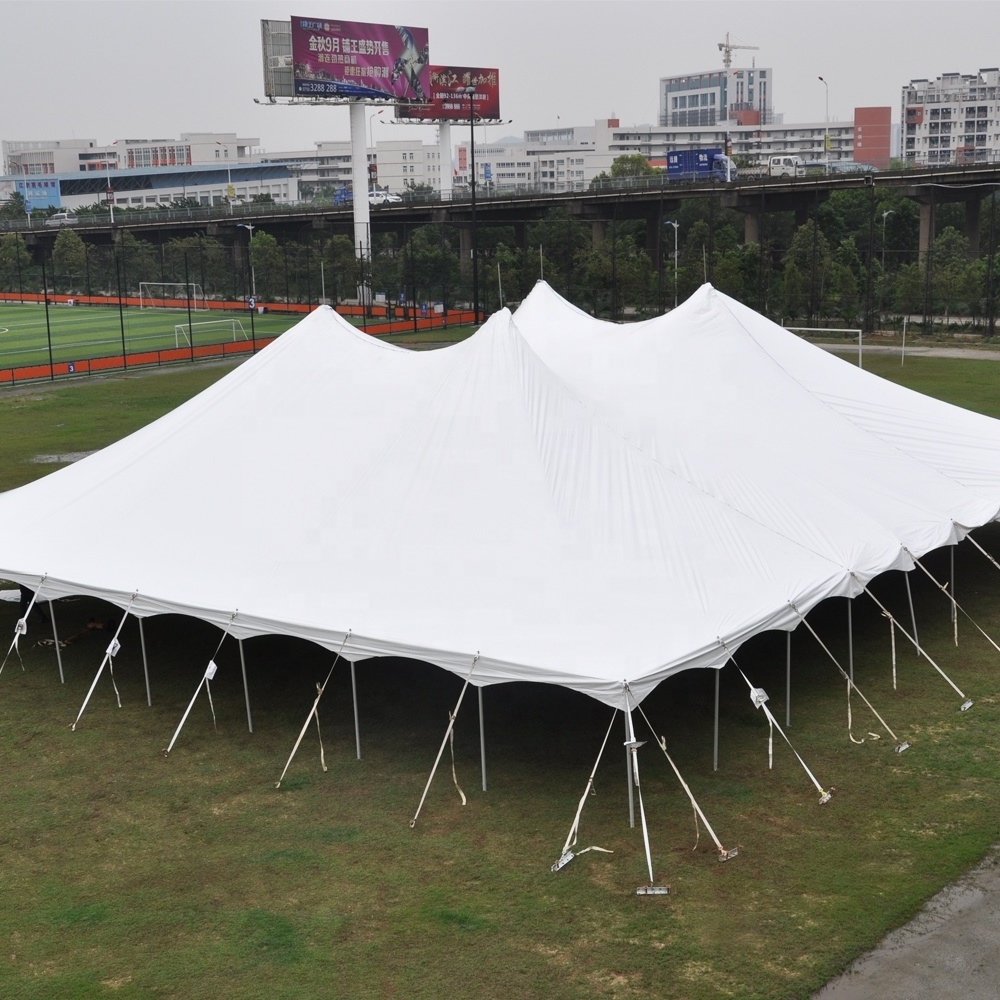

COSCO Outdoor Shade White Marquee Tent Strech Pole Tent For Wedding Party Event
Item |
Pole Tent |
Frame structure |
aluminum alloy 6061-T6 / 6N01-T6 |
Tube Diameter |
63mm |
Connector |
Q235 galvanized steel |
Span |
40ft / 60ft / 80ft |
Bay distance |
20ft / 30ft |
Size |
40x40ft, 40x60ft, 40x80ft.....expendable by every 20ft. 60x60ft, 60x80ft, 60x100ft.....expendable by every 20ft. 80×60ft, 80×90ft,80×120ft......expendable by every 30ft |
Roof cover |
850g/sqm double PVC- coated polyester textile, blackout |
Side walls |
650g/sqm double PVC- coated polyester textile |
Maximum wind loading |
100km/h |
Color |
White, others available |
Features |
Flame retardant, uv proof, waterproof, mildew proof, easy to clean, easy to install, reusable |
Our regular pole tent sizes are:
- 40x40ft, 40x60ft, 40x80ft.....expendable by every 20ft.
- 60x60ft, 60x80ft, 60x100ft.....expendable by every 20ft.
- 80 × 60ft, 80 × 90ft,80 × 120ft......expendable by every 30ft
The frame material is dia 63mm aluminium tube, wall thickness is 2.5mm. The joints are made of quality steel with zink-plating. The tops are made of 550gsm (16oz) laminated fabrics, blackout; the side walls are made of 650gsm PVC coated fabrics. Besides PVC fabric side walls, some high-end choices are available, such as glass walls, glass doors, flooring system, transparent roof covers, gable triangles and side walls are available. Customer’s satisfaction is always our final goal. Window walls, plain walls and accessories available.
Application
- Outdoor exhibition
- Warehouse
- Logistics transshipment
- Hangar
- Military command center
- Wedding
- Season event,etc.
Features
- Aluminium frame structure with PVC fabrics.
- 100% space usage, no pole inside.
- modular design structure, easy to install and dismantle.
- Roof: 850g/sqm double PVC fabrics, black-out; Sidewalls: 650g/sqm double PVC fabrics, translucent; both are fire retardant, UV resistance, water proof and mould proof, comply to DIN4102 B1; M2; NFPA701; CAN/ULC S-109 etc.
- One-stop inhouse manufacturing, from aluminium ingot smelting, profile extrusion, machining, anodizing, PVC fabric cutting, high-frequency welding, fabrication of hardware parts & accessories. On-site installation training available.
- strictly conducted in accordance with ISO 9001 & TS16949 management system, following documents available: fire retardant test report, wind loading report, structural analysis, installation manual, working instruction, inspection instruction etc.
C ertifications
- DIN4102 B1
- M2
- Test 2 of NFPA 701:2010
- CAN/ULC-S109
- Wind loading test report for 100km/h
Test reports availble upon request!
P ackaging I nformation
- Aluminum profiles: wrapped by plastic film, and then packed in wooden frame.
- Steel connectors: packed in wooden case.
- PVC covers: packed in PVC bags.
- Glass door & walls: packed in steel frame.
- Wooden floor: packed in wooden frame.
