Quick Details
-
Part name:
-

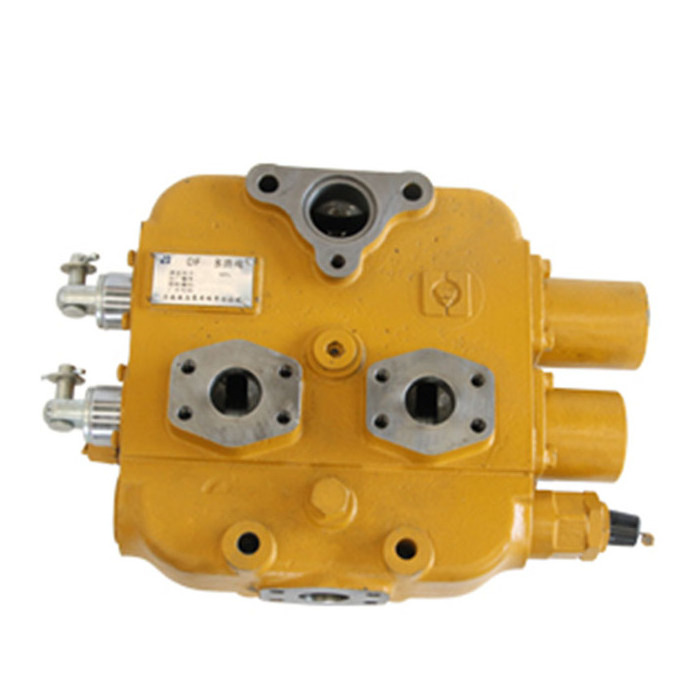

Hydraulic distribution valve
-
Model:
-
DF32-D2
-
Application:
-
Hydraulic system distributor
-
Product name:
-
multitandem valve
-
Keyword:
-
valve
-
After-sales Service Provided:
-
Guarantee for three months
-
MOQ:
-
1 piece
Quick Details
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
XIAMEN
-
Brand Name:
-
DooLin
-
Part name:
-
Hydraulic distribution valve
-
Model:
-
DF32-D2
-
Application:
-
Hydraulic system distributor
-
Product name:
-
multitandem valve
-
Keyword:
-
valve
-
After-sales Service Provided:
-
Guarantee for three months
-
MOQ:
-
1 piece
Product Description:
Manual multi-way valve (distribution valve) has the characteristics of simple and compact structure, good technology, smooth work, light operation, etc., is the loader hydraulic system to meet various needs of the centralized control of the main device.
Technical parameter
Maximum flow: 320L/min
Working pressure: 16MPa
Adaptation: Working hydraulic system of XGMA XG951 XG953 XG951H series loaders and corresponding construction machinery of this specification model
| NO. | Part No. | Part Name | NO. | Part No. | Part Name |
| 1 | 07C0594 | Hose | 26 | 75B0353 | |
| 2 | 00B0022 | Bolt | 10C1073_1 | Ring | |
| 3 | 06B0003 | Washer | 27 | 00B0026 | Bolt |
| 4 | 07C1314 | Hose | 28 | 10B0055 | O Ring |
| 5 | 03B0005 | Nut | 29 | 00D3619 | |
| 6 | 06B0009 | Washes | 30 | 36A0599 | Tube |
| 7 | 05B0015 | Stud | 31 | 00B0029 | Bolt |
| 8 | 24A0010 | Plate | 32 | 82A0010 | Clamp |
| 9 | 55A0034 | Washes | 33 | 10C1184 | Tilt Cylinder |
| 10 | 05B0578 | Stud | 34 | 58A0693 | Cover |
| 11 | 06B0013 | Washer | 35 | 38A0931 | Tube |
| 12 | 03B0036 | Nut | 36 | 10C1058 | Lift Cylinder |
| 13 | 14B0003 | gasket | 75B0352 | ||
| 14 | 11C0580 | Pump | 37 | 10C1058_1 | Ring |
| 15 | 82A0127 | Clamp | 38 | 82A0637 | Clamp |
| 16 | 36A0597 | Tube | 39 | 23A2218 | Plate |
| 17 | 36A0595 | Tube | 40 | 01B1105 | Bolt |
| 18 | 06C1019 | Hose | 41 | 01B1367 | Bolt |
| 19 | 06C1756 | Hose | 42 | 00B0105 | Bolt |
| 20 | 52A0938 | Cover | 43 | 38A0932 | Tube |
| 21 | 10B1012 | O Ring | 44 | 17D2266 | Tube |
| 22 | 03B0905 | Nut | 45 | 38A0930 | Tube |
| 23 | 67A0443 | Connector | 46 | 07C0571 | Hose |
| 24 | 02A0179 | Connector | 47 | 07C0771 | Hose |
| 25 | 10C1073 | Tilt Cylinder | 48 | 36A0596 | Tube |
| 49 | 36A0598 | Tube |
