Quick Details
-
Model Number:
-
wind turbine
-
Certification:
-
CE,UL
-
Output Voltage:
-
48V 48V/96V
-
rotor diameter:
-
2.9m 3.2m 3.7m 4.7m
-
Application:
-
Wind Power System
-
Product name:
-

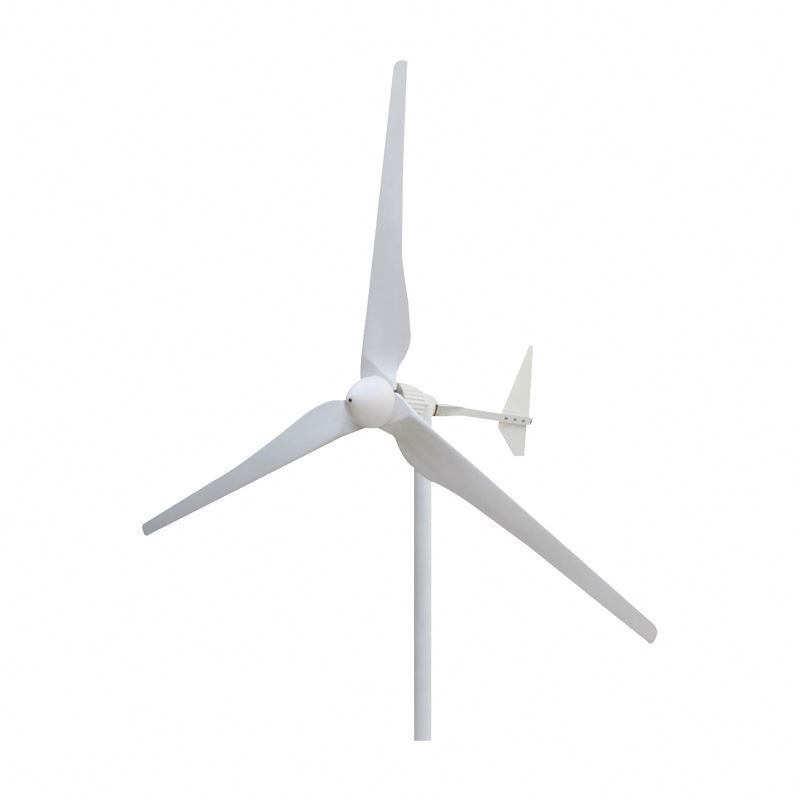

Horizontal Axis Wind Power Generator
-
Generator type:
-
3 Phase AC Permanent-magnet
-
Rated Voltage:
-
48V 48V/96V
-
Type:
-
Permanent Magent Generator
-
Color:
-
White
-
Rated wind speed:
-
11m/s
-
Survival wind speed:
-
45m/s
-
Keywords:
-
2kw wind turbine
-
Blade Material:
-
Glass Fiber
Quick Details
-
Rated Power:
-
1000W 1500W 2000W 2500W
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
wind
-
Model Number:
-
wind turbine
-
Certification:
-
CE,UL
-
Output Voltage:
-
48V 48V/96V
-
rotor diameter:
-
2.9m 3.2m 3.7m 4.7m
-
Application:
-
Wind Power System
-
Product name:
-
Horizontal Axis Wind Power Generator
-
Generator type:
-
3 Phase AC Permanent-magnet
-
Rated Voltage:
-
48V 48V/96V
-
Type:
-
Permanent Magent Generator
-
Color:
-
White
-
Rated wind speed:
-
11m/s
-
Survival wind speed:
-
45m/s
-
Keywords:
-
2kw wind turbine
-
Blade Material:
-
Glass Fiber
Products Description
Products Description
|
Model
|
LWWP-1000L-2900
|
LWWP-1500L-3200
|
LWWP-2000L-3700
|
LWWP-2500L-4700
|
|||
|
Rated Power
|
1000W
|
1500W
|
2000W
|
2500W
|
|||
|
Max Power
|
1200W
|
1700W
|
2300W
|
2800W
|
|||
|
Rated Voltage
|
48V
|
48V
|
48V/96V
|
48V/96V
|
|||
|
Starting wind speed
|
2.5m/s
|
2.5m/s
|
2.5m/s
|
2.5m/s
|
|||
|
Rated wind speed
|
11m/s
|
11m/s
|
11m/s
|
11m/s
|
|||
|
Safety wind speed
|
45m/s
|
45m/s
|
45m/s
|
45m/s
|
|||
|
Main engine weight
|
45kg
|
50kg
|
55kg
|
60kg
|
|||
|
Diameter of blades
|
2.9m
|
3.2m
|
3.7m
|
4.7m
|
|||
|
Qty of blades
|
3
|
||||||
|
Material ( blades)
|
Enhance Glass fiber reinforced plastics
|
||||||
|
Motor type
|
Three-phase AC permanent magnet generator
|
||||||
|
Material of magnetic steel
|
NdFeB(neodymium iron boron)
|
||||||
|
Generator housing material
|
Die-cast aluminum
|
||||||
|
Brake Mode
|
Electromagnetic/Wind wheel sideways
|
||||||
|
Wind direction adjustment
|
Automatic windward adjustment
|
||||||
|
Operating Temperature
|
-40℃~80℃
|
||||||
|
Lubrication method
|
Add grease
|
||||||
