Quick Details
-
Product name:
-
Copper electrical cable lugs
-
Material:
-
Pure copper
-
Application:
-
Wire connecting
-
Surface:
-
Tin Plated
-
Certificate:
-
ISO9001/CE/ CQC
-
Connect type:
-
Ring
-
Hole section:
-
16mm
-
Wire section:
-
8mm
-
Purity:
-
99.9%
-
Package:
-
100pcs/bag
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JINH
-
Model Number:
-
SC16-8
-
Product name:
-
Copper electrical cable lugs
-
Material:
-
Pure copper
-
Application:
-
Wire connecting
-
Surface:
-
Tin Plated
-
Certificate:
-
ISO9001/CE/ CQC
-
Connect type:
-
Ring
-
Hole section:
-
16mm
-
Wire section:
-
8mm
-
Purity:
-
99.9%
-
Package:
-
100pcs/bag

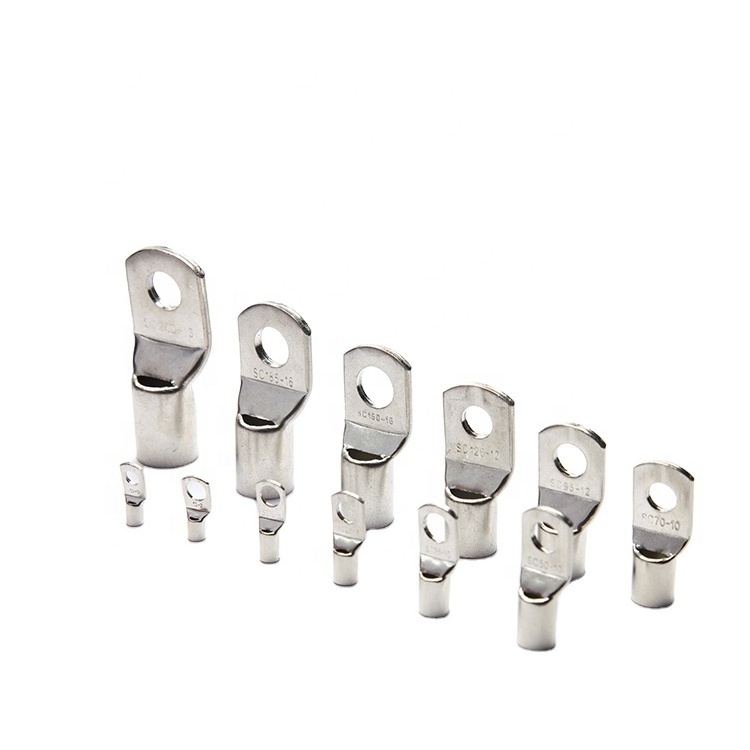

new arrival SC16-8 connector lugs red copper cable lug connection power lug terminals
Product Description
| ITEM NO. | Φ (MM) | D (MM) | d (MM) | L (MM) |
| SC(JGK)-1.5 | Φ4.2 , Φ5.2 | 3.5 | 1.8 | 18 |
| SC(JGK)-2.5 | Φ4.2 , Φ5.2 ,Φ6.2 | 4 | 2.5 | 19 |
| SC(JGK)-4 | Φ5.2 , Φ6.2 | 4.8 | 3.1 | 21 |
| SC(JGK)-6 | Φ5.2 , Φ6.2 , Φ8.2 | 5.5 | 3.8 | 24 |
| SC(JGK)-10 | Φ6.2 , Φ8.2 | 6.8 | 4.8 | 25.5 |
| SC(JGK)-16 | Φ6.2 , Φ8.2 , Φ10.5 | 7.5 | 5.5 | 30.5 |
| SC(JGK)-25 | Φ6.2 , Φ8.2 , Φ10.5 | 9 | 7 | 34 |
| SC(JGK)-35 | Φ6.2 , Φ8.2 , Φ10.5 , Φ12.5 | 10.5 | 8.2 | 38 |
| SC(JGK)-50 | Φ8.2 , Φ10.5 , Φ12.5 | 12.5 | 9.8 | 45 |
| SC(JGK)-70 | Φ8.2 , Φ10.5 , Φ12.5 | 14.5 | 11.5 | 50 |
| SC(JGK)-95 | Φ10.5 , Φ12.5 | 17.5 | 13.8 | 55.5 |
| SC(JGK)-120 | Φ12.5 , Φ16.5 | 19.5 | 15.5 | 63 |
| SC(JGK)-150 | Φ12.5 , Φ16.5 | 21 | 16.5 | 71 |
| SC(JGK)-185 | Φ16.5 | 23.5 | 18.8 | 78 |
| SC(JGK)-240 | Φ16.5 | 26.5 | 21 | 92 |
| SC(JGK)-300 | Φ16.5 , Φ20.5 | 30 | 24 | 102 |
| SC(JGK)-400 | Φ16.5 , Φ20.5 | 34 | 26.5 | 113 |
| SC(JGK)-500 | Φ16.5 , Φ20.5 | 38 | 30 | 123 |
| SC(JGK)-630 | Φ20.5 | 45 | 35 | 135 |
| SC(JGK)-800 | Φ22.5 | 50 | 39 | 170 |
| SC(JGK)-1000 | Φ22.5 | 56 | 44 | 200 |
PLEASE DON'T HESITATE TO CONTACT US IF YOU HAVE ANY QUESTIONS.
WE WOULD TRY OUR BEST TO MEET YOUR DEMAND.
