SPS cheaper 1mm Hydraulic full auto vertical grooving machine

SPS cheaper 1mm Hydraulic full auto vertical grooving machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $19000

≥2 Sets

US $18500

≥3 Sets

US $18000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 7800

Power (kW):: 5.5

Product name:: CNC V-Grooving Cutting Machine

Keyword:: Metal Grooving Cutting

Name:: Grooving Groover

Machine Type:: Automnatic

Control:: HUST

Quick Details

Place of Origin:: China

Marketing Type:: Hot Product 2024

Year:: 2024

Weight (KG):: 7800

Power (kW):: 5.5

Product name:: CNC V-Grooving Cutting Machine

Keyword:: Metal Grooving Cutting

Name:: Grooving Groover

Machine Type:: Automnatic

Control:: HUST

Product Overview

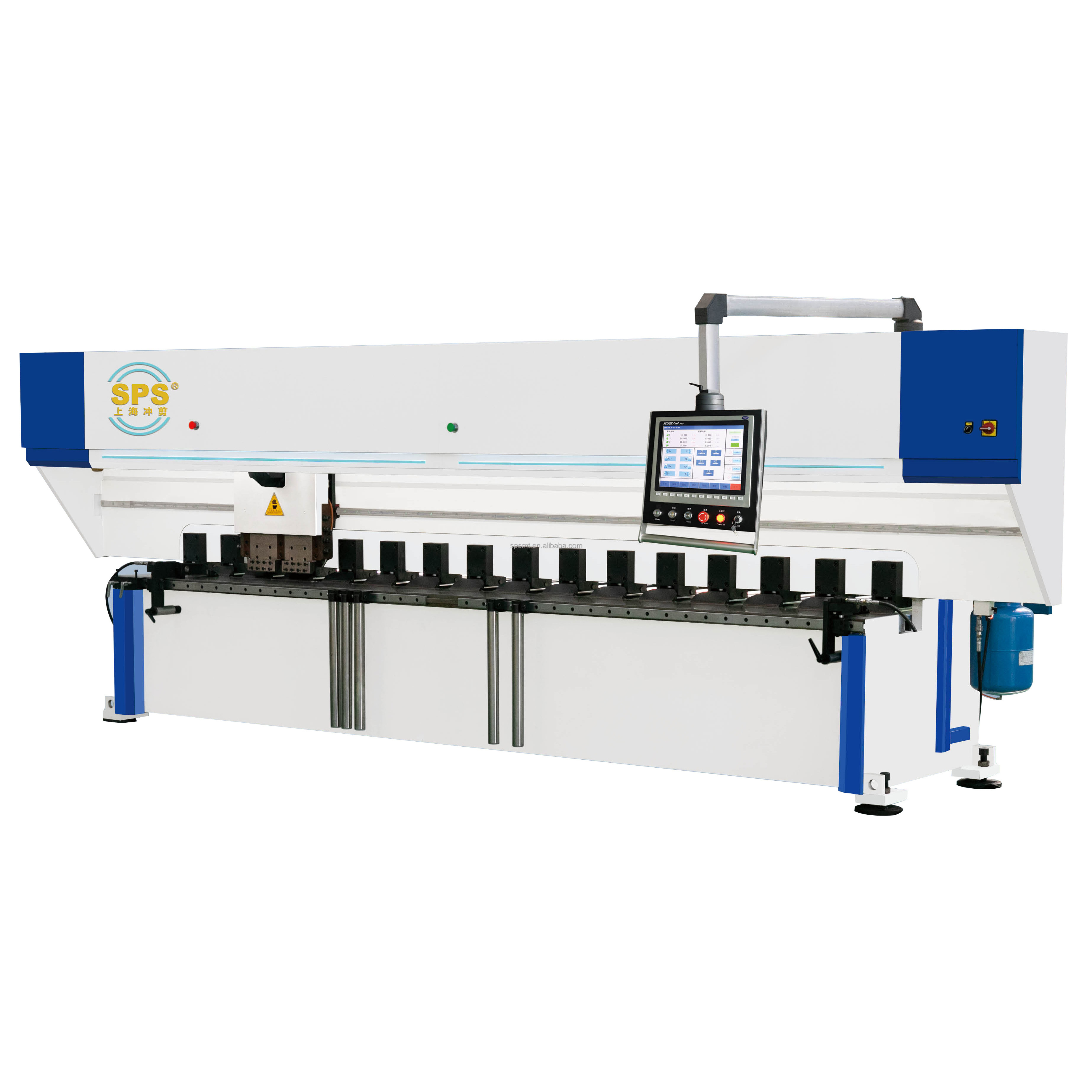

CNC VERTICAL GROOVING MACHINE

CNC grooving machine (grooving machine stainless steel V grooving machine) is suitable for elevators, decorative materials, stainless steel processing, household appliances, props display and other industries requiring high-precision processing of plates.

FEATURES AT A GLANCE

The machine adopts high-strength steel plate welding, heat treatment and tempering treatment, eliminating welding stress, high
strength, no deformation of the fuselage, good stability.

2.

The machining workbench is sent by the front end, hydraulic clamping, hydraulic pressure plate pressing, high degree of
automation, easy and quick operation.

3.

The working face is independently adjustable, and the cutting accuracy can be controlled at 0.02mm.

The tool holder is driven by servo, with large moving torque, fast acceleration and deceleration, accurate positioning and high
efficiency.

5.

The main shaft is driven by pinion and rack, with strong rigidity and low resistance, which greatly improves energy efficiency andsaves energy.

6.

The grooving position adopts servo CNC positioning, double screw synchronous transmission, accurate positioning and good parallelism.

parameter	unit	*15006000**
Max grooving width	mm	1500
Max grooving length	mm	6000
Grooving thickness range	mm	0.4~6
Minimum grooving width to the side	mm	8
Beam moving (left and right) speed (X Axis)	m/min	<=100
Movement speed of the rear stopper clamp(forwardand backward)speed(Y Axis)	m/min	<=30
Cutter holder (up and down) moving speed(Z1/Z2 Axis)	m/min	<=10
Total Power	KW	11
Control the number of servo axes	axes	4
Y. Z Axis repetitive positioning accuracy	mm	±0.020
Hydraulic pressure	MPA	8
Voltage	V	3PHS 380V
Overall dimensions	mm	8300X3500X2200
Air pressure	MPa	0.6

PRODUCT CONFIGURATION

Hydraulic press device

Adopting dense independent pressing material, with high pressure and reliable fastening, it can plane various shapes and sizes of boards.

Double blade head

Multiple alloy knives (optional white steel knives) are used to improve cutting accuracy. Double headed back and forth grooving can improve production efficiency, while single headed planning is more stable and accurate.

Hydraulic clamp

Hydraulic clamping is more stable, with high pressure and high feeding accuracy.

Main servo motor,linear guide,precision guide

The main servo motor precisely controls the high-speed left and right movement of the planer head, which can achieve functions such as fixed point slotting, making it convenient and fast. At the same time, it is equipped with silver linear guide rails and TBI precision gear racks, ensuring the accuracy and speed during the high-speed groove planning process.

No	Name	brand
1	Electrics	Schneider,France
2	Alloy blade	korloy,Korea
3	Hydraulic valve	Rexroth,Germany
4	Bearings	NSK,Japan
5	Linear Guide	HIWIN,Taiwan
6	Ball screw	TBI,Taiwan
7	Servo motor and drive	HUST,Taiwan

Quality guarantee and after-sales service

1 Free installation , trial start and adjustment, training. But the machine quotation does not include the charges of our
engineers in the buyer’s country if you want, and the buyer must take charge of all the expenditure including airplane tickets of our engineers when in the buyer’s country to do the service!

2 Warranty period is 1 year. During the warranty period we shall reply to the call or Fax from the user for the machine faults (expect for faults caused by no abiding by the relevant operation regulations, or by force injury) within 24 hours.

FAQ

Q1: Are you trading company or manufacturer ?
A1: We are manufacturer of sheet mental, stainless and aluminium processing.

Q2: How long is your delivery time?
A2: The standard model is 15-30 days, the customized model is 30-60 days.

Q3: How to choose the model of machines?
A3: The thickness, width and material.

Q4: What is your term of payment ?
A:30% T/T in advance, the balance before shipment.
