Quick Details
-
Dimension(L*W*H):
-
Depends
-
Weight:
-
5~50ton
-
Item:
-

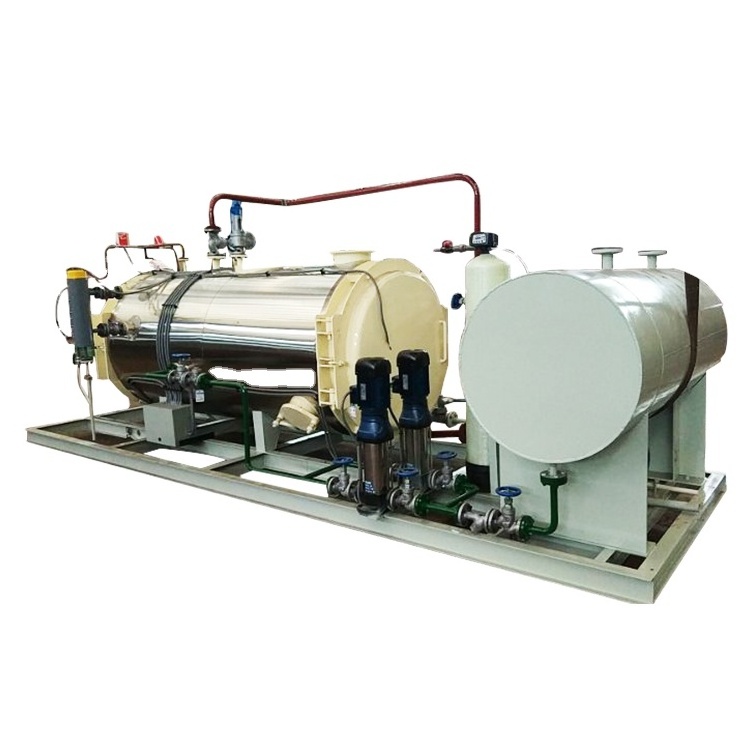

Fire Tube Industrial Oil Gas Fired Steam Boiler Price
-
Thermal efficiency:
-
96%
-
Rated steam capacity:
-
0.5-20t/h
-
Rated steam pressure:
-
0.7/1.0/1.25/1.6 Mpa
-
Rated steam temperature:
-
170/184/194/204C
-
Feed water temperature:
-
20C
-
Application:
-
textile mill, food industry, garment etc
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certification:
-
ISO,CE,BV,ASME
Quick Details
-
Core Components:
-
...
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YUTONG
-
Dimension(L*W*H):
-
Depends
-
Weight:
-
5~50ton
-
Item:
-
Fire Tube Industrial Oil Gas Fired Steam Boiler Price
-
Thermal efficiency:
-
96%
-
Rated steam capacity:
-
0.5-20t/h
-
Rated steam pressure:
-
0.7/1.0/1.25/1.6 Mpa
-
Rated steam temperature:
-
170/184/194/204C
-
Feed water temperature:
-
20C
-
Application:
-
textile mill, food industry, garment etc
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certification:
-
ISO,CE,BV,ASME
FAQ
1. Whether the boiler can burn dual fuel or multi-fuel?
Sitong boiler have oil burner, gas burner, and oil&gas dual fuel burner, we can offer the specific burner based on customers’
requirement.
Sitong boiler have oil burner, gas burner, and oil&gas dual fuel burner, we can offer the specific burner based on customers’
requirement.
2. What is the texture of spirally corrugated tube?
The texture of spirally corrugated tube is 20#.
3. The brand of burner?
The brands of burner are Italy Baltur, Rellio, Elco, etc.
4. What is the thickness of combustion chamber?
the thickness of corrugated furnace is different based on working pressure and furnace diameter, generally, the thickness is
between 10~18mm, large combustion space, and combustion sufficient.
5. What is the advantages of fire tube boiler?
This fire tube boiler has compact structure and convenient operation, strong load adaptability, lower water quality requirement,
and the failure rate of it is lower than 0.1!
6. Details of electric control cabinet.
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water
temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up
the parameter, record and analyze the operation data, etc.
7. What is the inlet pressure of gas burner?
The inlet gas pressure is different for different capacity boiler, for example, the pressure for 2 ton steam capacity boiler is
about 8~10KPa, while for 4 ton steam capacity boiler is about 18~20KPa.
The texture of spirally corrugated tube is 20#.
3. The brand of burner?
The brands of burner are Italy Baltur, Rellio, Elco, etc.
4. What is the thickness of combustion chamber?
the thickness of corrugated furnace is different based on working pressure and furnace diameter, generally, the thickness is
between 10~18mm, large combustion space, and combustion sufficient.
5. What is the advantages of fire tube boiler?
This fire tube boiler has compact structure and convenient operation, strong load adaptability, lower water quality requirement,
and the failure rate of it is lower than 0.1!
6. Details of electric control cabinet.
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water
temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up
the parameter, record and analyze the operation data, etc.
7. What is the inlet pressure of gas burner?
The inlet gas pressure is different for different capacity boiler, for example, the pressure for 2 ton steam capacity boiler is
about 8~10KPa, while for 4 ton steam capacity boiler is about 18~20KPa.
|
