Quick Details
-
Brand Name:
-
ANSHI, LILI
-
Model Number:
-
SK-6 C
-
Max. Current:
-
12A
-
Max. Working Pressure:
-
60PSI
-
Type::
-
Mechanical
-
Protection rating:
-
IP20
-
Product name:
-
Pump Pressure Control
-
Color:
-
Black
-
Material:
-
Brass
-
Certification:
-
CE
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
230V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ANSHI, LILI
-
Model Number:
-
SK-6 C
-
Max. Current:
-
12A
-
Max. Working Pressure:
-
60PSI
-
Type::
-
Mechanical
-
Protection rating:
-
IP20
-
Product name:
-
Pump Pressure Control
-
Color:
-
Black
-
Material:
-
Brass
-
Certification:
-
CE
Function:
1.Pressure switch used in water systems.
2.The switch start and stop the waterpump automatically according to the pressure setting.
3.Hydraulics connection can choose:1/4" and 3/8" Male&Female..
4.Pressure setting according to customers's needs.
Technical parameters:
| Rated Voltage | 110V-240V |
| Frequency | 50/60HZ |
| Rated Current | 12A |
| Pressure Range | 20-80psi |
| Pressure Setting | 20-40psi |
| Max Liquid Temperature | 40°C |
| Protection Degree | IP20 |
Package Details:
| Carton Size | 52.5x21x37.5cm |
| Pcs/Ctn | 50 |
| N.W. | 16kgs |
| G.W. | 17.5kgs |

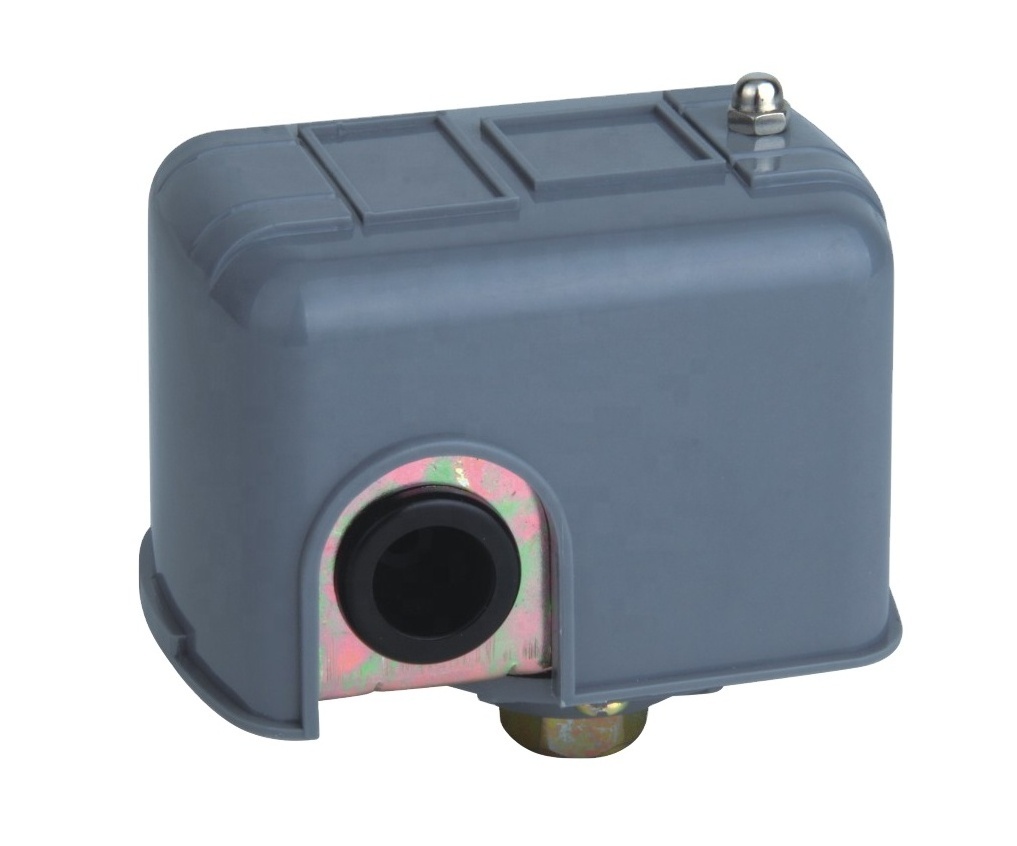

Water pump pessure switch SK-6
Description:
1.Pressure switch used in water systems.
2.The switch start/ stop the water pump automatically according to the seting pressure value.
3.Hydradulics connection can choose:1/4" Male/ Female.
4. Customized setting.
Lowest pressure:20PSI
Highest prssure: 80PSI
Female&male:1/4(NPT.BSP)
Pressure Setting:20-40PSI, 30-50PSI, 40-60PSI
Coverage:USE,CNR-Enclosed, double pole,single phase pressure operated switch to be used for the auto control of water pump
Single phase:115V(AC) 1.5HP 20A
Single phase:230V(AC) 2.0HP 12A
Single phase:230V(AC) 3.0HP 17A
