Quick Details
-
After-sales Service Provided:
-
support
-
weight:
-
37kg/m
-
Power:
-
GX160/GX270/GX390
-
Compaction width:
-
18kn
-
Vibrating frequency:
-
70HZ
-
Nominal amplitude:
-
0.6MM
-
Exciting force:
-
20kN/(≤)260mm
-
Fuel consumption:
-
313g/kWh
-
2m linker:
-
405mm*2000mm
Quick Details
-
Weight (KG):
-
1
-
Place of Origin:
-
Shandong, China
-
Name:
-
Road machinery gasoline engine vibratory paver
-
After-sales Service Provided:
-
support
-
weight:
-
37kg/m
-
Power:
-
GX160/GX270/GX390
-
Compaction width:
-
18kn
-
Vibrating frequency:
-
70HZ
-
Nominal amplitude:
-
0.6MM
-
Exciting force:
-
20kN/(≤)260mm
-
Fuel consumption:
-
313g/kWh
-
2m linker:
-
405mm*2000mm

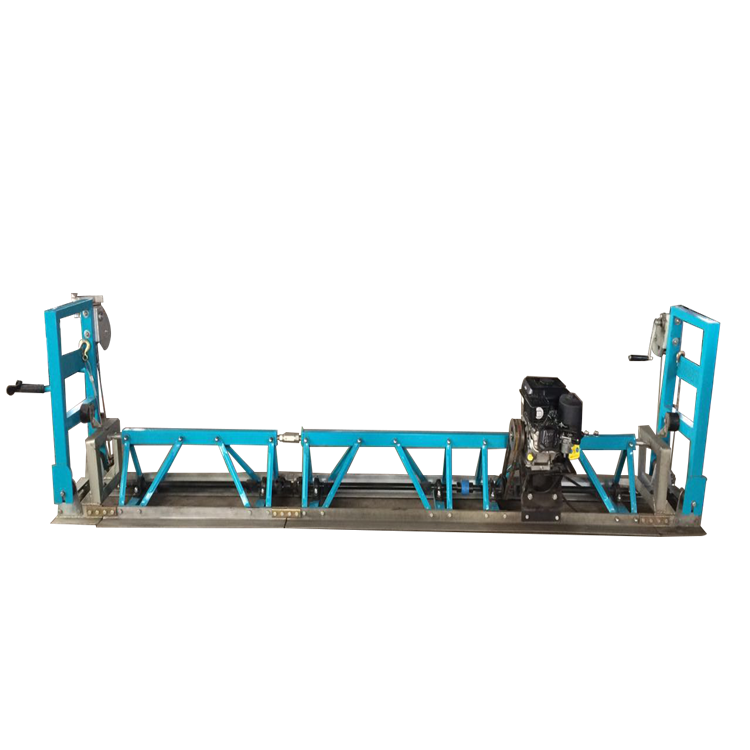

The cement is smooth Roller burnishing concrete truss screed
|
Model |
HHZP-600 |
HHZP-900 |
HHZP-130 |
||
|
Engine Model |
HONDA GX160 |
HONDA GX270 |
HONDA GX390 |
||
|
Power |
5.5HP |
9HP |
13.0HP |
||
|
Type |
Gasoline engine, air-cooled 4-stroke, OHV, single cylinder |
||||
|
Working width |
4-6m |
6-9m |
10-18m |
||
|
Working depth |
260mm |
||||
|
Vibration frequency |
70Hz |
||||
|
Induced vibration force |
11kN/(≤)2000mm |
||||
|
Fuel tank capacity |
5L |
6L |
6.5L |
||
|
The amount of lubricating oil |
0.6L |
1.1L |
|||
|
The amount of fuel consumption |
313g/kWh |
||||
|
Dimensions
|
|||||
|
Standard knot |
1000/2000mm |
||||
|
2m linker |
400mm×2000mm |
74kg |
|||
|
1m single linker |
400mm×1000mm |
37kg |
|||
|
0.5m single linker |
400mm×250mmX2 |
18kg |
|||
Jining HaoHong industrial and mining equipment Co., Ltd. is located in high-technology industrial development zone, Jining city, Shandong province, China. Our company is specialized in producing small and medium and special construction machinery used in the area of highway, railway, water conservancy, etc. The products are up to 40 types, many products have applied for national patent. The 40 products are divided into four categories, which are compacting equipments, concrete construction equipments, cutting and breaking equipments and lighting equipments. We will continue spirit of developing "Customer Staff, Innovation, Quality" in the brilliant development in future and work hard for the building the base of investigation and manufacturing of construction machinery.
