Quick Details
-
Brand Name:
-
KJ
-
Model Number:
-
DRJ31500
-
Wave length:
-
1064 nm
-
Launching caliber:
-
38 mm
-
Receiving caliber:
-
93 mm
-
Ranging distance:
-
100-15000 m
-
Repeat frequency:
-
5 Hz
-
Meet mouth:
-
RS232, 422, 485
-
Power supply:
-
DC20 ~ 27 V
-
Dimensions:
-
112 x145x210mm
-
Weight:
-
3.5 Kg
Quick Details
-
Warranty:
-
12 Months, 1 Year
-
Size:
-
112 x145x210mm
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
KJ
-
Model Number:
-
DRJ31500
-
Wave length:
-
1064 nm
-
Launching caliber:
-
38 mm
-
Receiving caliber:
-
93 mm
-
Ranging distance:
-
100-15000 m
-
Repeat frequency:
-
5 Hz
-
Meet mouth:
-
RS232, 422, 485
-
Power supply:
-
DC20 ~ 27 V
-
Dimensions:
-
112 x145x210mm
-
Weight:
-
3.5 Kg

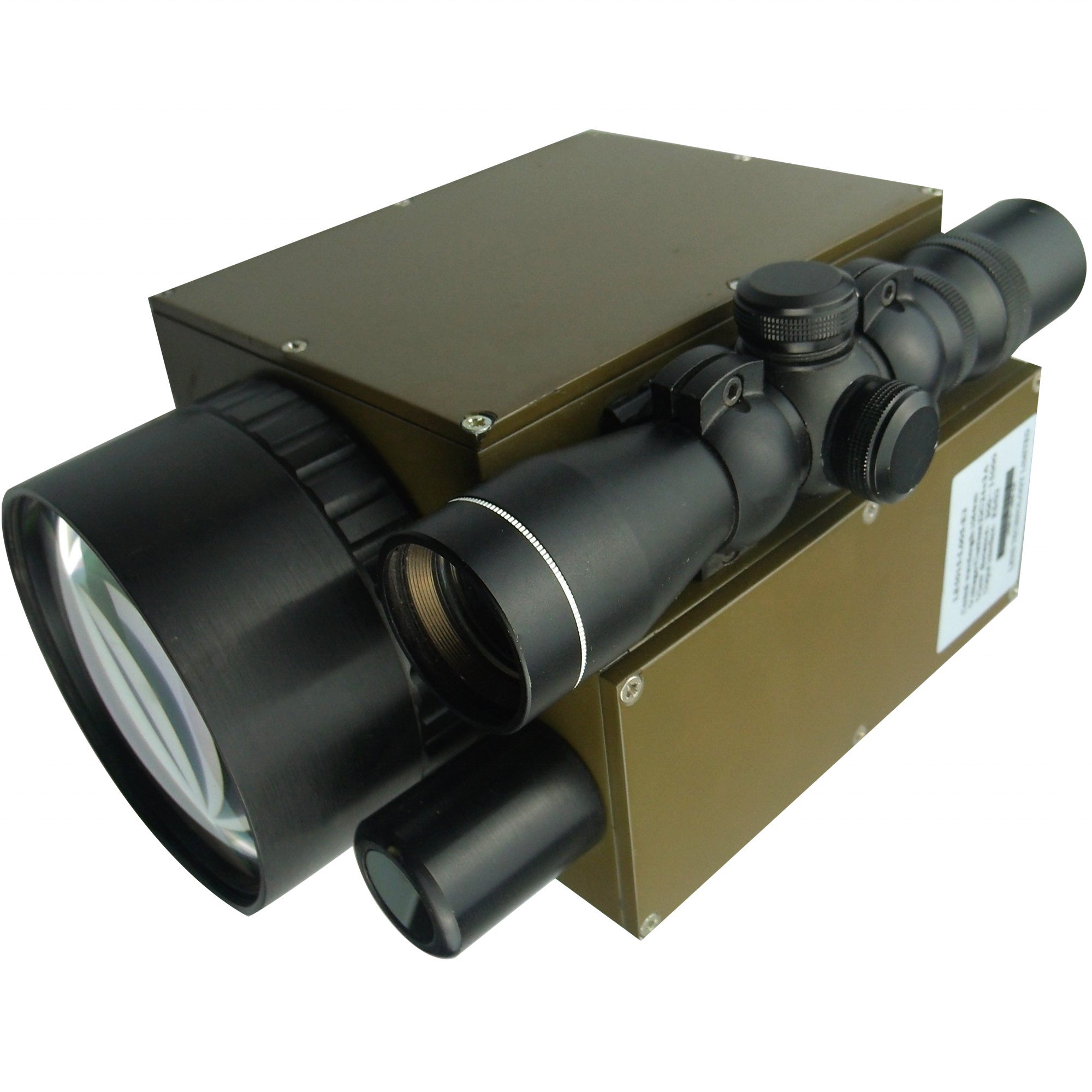

Products Appearance
| Front | Side |
|
|
Products Specification
|
The Main Technical Indexes |
Details |
|
Wave length |
1064 nm |
|
Launch caliber |
38 mm |
|
Receiving caliber |
93 mm |
|
Ranging distance |
100-15000 m |
|
Ranging accuracy |
± 3 m (0.3 m) |
|
Repeat frequency |
5 Hz |
|
Meet mouth |
RS232, 422, 485 |
|
Power supply |
DC20 ~ 27 V |
|
Dimensions |
112 x145x210mm |
|
Weight |
3.5 Kg |
2)Efficient laser technology.
3)Small and long distance.
Products Points
Products Description
Design:
Module:
Optical System:
Products Application
