- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
New World
-
Model Number:
-
B330
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
9500X2600X1900 mm
-
Weight:
-
8000 KG
-
Paper bag length(Cutting length):
-
280-510mm
-
Paper bag width:
-
150-330mm
-
Paper bag bottom width:
-
70-180mm
-
Paper thickness:
-
60-150g/m2
-
Paper roll width:
-
470-1000mm
-
Roll paper diameter:
-
1300mm
-
Machine MAX Speed:
-
220pcs/min
-
Paper bag speed:
-
100-200 pcs/min
-
Machine power:
-
380V 3 Phase 11kw
-
Machine weight:
-
8000kg
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Shopping Bag
-
Material:
-
Paper
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
New World
-
Model Number:
-
B330
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
9500X2600X1900 mm
-
Weight:
-
8000 KG
-
Paper bag length(Cutting length):
-
280-510mm
-
Paper bag width:
-
150-330mm
-
Paper bag bottom width:
-
70-180mm
-
Paper thickness:
-
60-150g/m2
-
Paper roll width:
-
470-1000mm
-
Roll paper diameter:
-
1300mm
-
Machine MAX Speed:
-
220pcs/min
-
Paper bag speed:
-
100-200 pcs/min
-
Machine power:
-
380V 3 Phase 11kw
-
Machine weight:
-
8000kg
Technical Parameter
|
Model No.
|
B 220
|
B 330
|
B 400
|
B 460
|
B 550
|
|
Paper Tube Length
|
190-430mm
|
280-530mm
|
280-600mm
|
320-770mm
|
300-770mm
|
|
Paper Bag Width
|
80-220mm
|
150-330mm
|
150-400mm
|
220-460mm
|
260-550mm
|
|
Paper Bag Bottom Width
|
50-120mm
|
70-180mm
|
90-200mm
|
90-260mm
|
90-260mm
|
|
Paper Thickness
|
45-150gsm
|
60-150gsm
|
70-150gsm
|
70-150gsm
|
80-150gsm
|
|
Max Machine Speed
|
280pcs/min
|
220pcs/min
|
200pcs/min
|
150pcs/min
|
150pcs/min
|
|
Paper Roll Width
|
290-710mm
|
470-1050mm
|
510-1230mm
|
650-1470mm
|
730-1650mm
|
|
Paper Roll Diameter
|
1500mm
|
1500mm
|
1500mm
|
1500mm
|
1500mm
|
|
Total Power
|
15 KW
|
15 KW
|
15.5 KW
|
25 KW
|
27 KW
|
|
Machine Weight
|
5600KG
|
8000KG
|
9000KG
|
12000KG
|
13000KG
|
|
Machine Dimensions
|
8.6x2.6x1.9M
|
9.5x2.6x1.9M
|
10.7x2.6x 1.9M
|
12x4x2M
|
13x2.6x2 M
|
|
Machine size
|
8600*2600*1900mm
|
9500*2600*1900mm
|
10700*2600*1900mm
|
12000*4000*2000mm
|
13000*4000*2000mm
|
Product Details
Bag Forming Structure
Big Drum Structure
Bag Cutting And Sealing Structure
Paper Bag Collection Unit

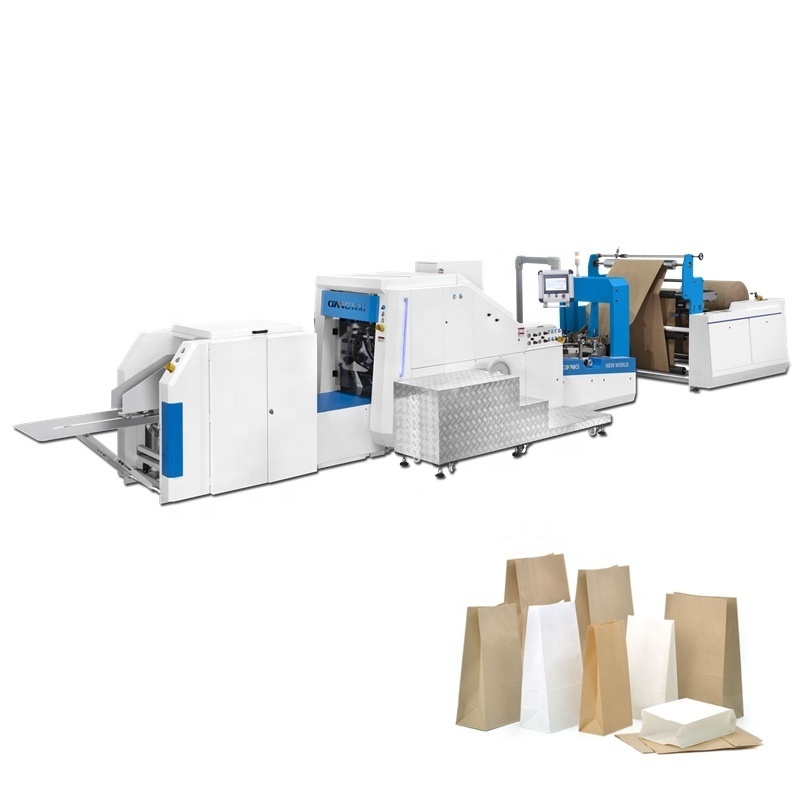

![[JT-HY330] Machine for Making Kraft Paper Bag / Paper Bags Production Machine / Craft Paper Bag Making Machine](https://cdn.bestsuppliers.com/seo_products_img/jeta/22c65a5d5893304db66b95efbe1aaf82.jpg!/rotate/180/sq/300)
