Quick Details
-
Model Number:
-

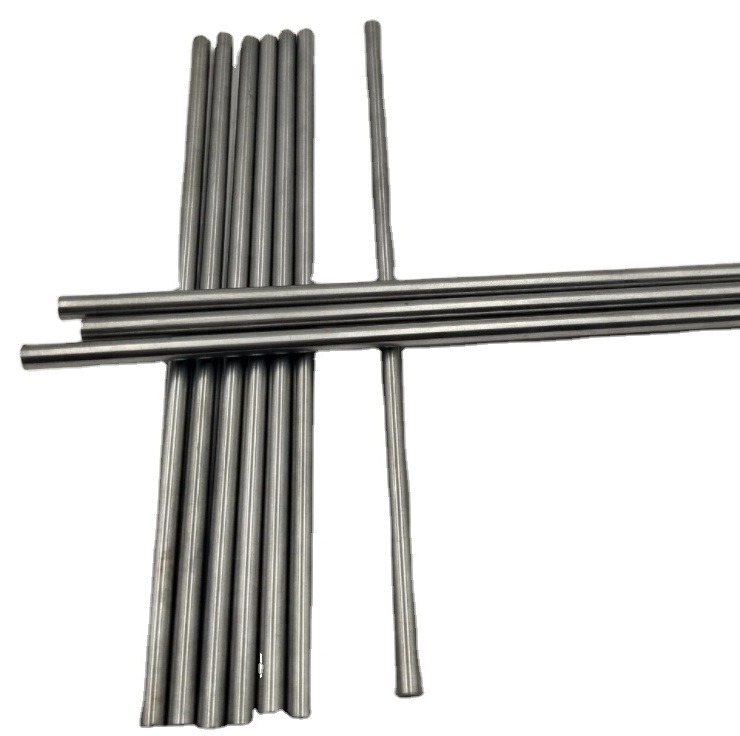

MG tungsten rhenium rod
-
Shape:
-
wire, plate,rod, bar, screw etc.
-
Material:
-
WRe, W,Re
-
Chemical Composition:
-
95%W, 5%Re
-
Name:
-
tungsten rhenium rod
-
Other name:
-
WRe5 rod
-
Density:
-
≥10.2g/cm3
-
Standart:
-
GB/T 8320-2003
-
Certification:
-
ISO9001:2008,Make by customer need
-
Trade type:
-
Factory direct sale
-
Price Type:
-
wholesale price
Quick Details
-
Application:
-
Industry, shielding, parts,hold
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
MG
-
Model Number:
-
MG tungsten rhenium rod
-
Shape:
-
wire, plate,rod, bar, screw etc.
-
Material:
-
WRe, W,Re
-
Chemical Composition:
-
95%W, 5%Re
-
Name:
-
tungsten rhenium rod
-
Other name:
-
WRe5 rod
-
Density:
-
≥10.2g/cm3
-
Standart:
-
GB/T 8320-2003
-
Certification:
-
ISO9001:2008,Make by customer need
-
Trade type:
-
Factory direct sale
-
Price Type:
-
wholesale price
Tungsten-Rhenium
WRe
WRe3%, WRe5%, WRe25%, WRe26%, WRe3-25 thermocouple wire, WRe5-26 thermocouple wire, WRe thermocouple wire, Tungsten-Rhenium thermocouple wire, WRe alloy wire, WRe alloy rod, WRe alloy sheet, Tungsten-Rhenium wire, Tungsten-Rhenium rod, Tungsten-Rhenium sheet, Tungsten-Rhenium alloy sheet, Tungsten-Rhenium alloy rod, Tungsten-Rhenium alloy wire.
Add 3%, 5%, 25% or 26% Rhenium element into Tungsten to form Tungsten-Rhenium (WRe) alloy; WRe alloy is of good electric characteristics, ductibility and machining performance, WRe wire is usually used as high temperature thermocouple and cathode wire.
WRe alloy wire
Grade: WRe3%, WRe5%, WRe25%, WRe26%
Diameter: 0.1mm, 0.2mm, 0.25, φ0.3mm, 0.35mm, 0.5mm ...
WRe thermocouple wire
Grade: WRe3-25, WRe5-26
Diameter: 0.1mm, 0.2mm, 0.25, φ0.3mm, 0.35mm, 0.5mm ...
WRe alloy rod
Grade: WRe3%, WRe5%, WRe25%, WRe26%
Diameter: 1mm, 2mm, 5mm, 10mm, 15mm, φ17mm max.
Length: 10mm, 20mm, 50mm, 100mm, 200mm, 300mm, 500mm
Material Description
Tungsten-rhenium alloy is formed by adding different contents of element rhenium into molybdenum. Tungsten and rhenium are both refractory metals. By combining both ingredients, the "rhenium" effect enables tungsten-rhenium alloy to have better ductility, higher recrystallization temperature, better creep resistance, and higher resistivity. Tungsten-rhenium has good mechanical properties, and can be processed and welded.
Areas of Application
Because of its superior high-temperature performance, tungsten-rhenium alloy can be applied in the parts used in high-temperature areas and temperature measurement applications, mainly including:
Aerospace: Tungsten-rhenium alloys are applied in high-temperature aviation and aerospace parts and temperature measurement systems.
Semiconductor industry: Due to its superior physical properties, tungsten-rhenium alloy is used in the high temperature equipment parts for the semiconductor industry, such as heating equipment and temperature measurement equipment, etc.
Industrial furnaces: high temperature components and temperature measurement device.
Welding industry: Friction Stir Welding Head
More molybdenum copper and tungsten copper products
Tungsten alloy shot
Molybdenum Copper Disc
MoCu heat sink
Tungsten Rhenium sheet
Molybdenum Rhenium wire
Molybdenum Rhenium rod
Tungsten Alloy(WNiFe) Applications
*high density of 17.0 to 18.8 g/cm3 (similar to pure tungsten) *better machin ability compared to pure tungsten *inexpensive manufacture of complex products and components *high Young's modulus and very good mechanical properties *high absorption capacity for X-rays and gamma rays harmless to the health and environment
Tungsten Copper(CuW) Applications
*Arcing contacts and vacuum contacts in high and medium voltage breakers or vacuum interruptors *Electrodes in electric spark erosion cutting machines *Heat sinks as passive cooling elements of eletronic devices.*Electrodes for Resistance welding*Electronic Packaging Materials.
Pure Tungsten And Pure Molybdenum
Pure tungsten and Pure molybdenum is a very brittle metal. Has the highest melting point of any metal of approximately 3422 degrees Celsius. , lowest coefficient of expansion and lowest vapor pressure of any commonly used metal. Some uses for tungsten include filaments, high speed tools, automotive products, sputtering targets, counter balance weights and heating elements.
Tungsten Carbide Applications
Tungsten carbide and cobalt powder as raw material. High strength and high hardness.Excellent hardness, wear-resistance, high elastic modulus, high flexural strength, good chemical stability, impact resistance, good toughness, low coefficient of expansion, thermal conductivity, electrical conductivity and iron and its alloys with similar features
MingGuan Metal has advanced technologies,superior machines&equipment, state-of-the art testing instruments and modern workshops.It also has established a set of scientific ,management system and strict quality control system. MingGuan ensures all the aspects of development(design),production, sales and services to comply with the highest international standard or design and manufacturing excellence.
In the Fair
Talk face to face
Visit our factory
Q:What's your main products?
A:Tungsten /molybdenum /tungsten alloy products.
Q: Why should I choose your company for partner?
A: As you know, the raw material of low price makes your product more competitive in the market. That means it will make your sell much easier.
Q:Do you use first class tungsten /molybdenum powder?
A:We only use first class tungsten / molybdenum powder,no recycle.
Q: Delivery tungsten alloy products can be shorter?
A: Usually we make sure all the order delivery with 30 days.Tungsten copper 15 days.
Q:Price can be cheaper?
A: We use first class tungsten powder,the cost is high.
Q:Tungsten /Molybdenum products MOQ?
A:Please email to enquirer per different products.
Q:Tungsten /Molybdenum sample?
A:Sample available,within 7~14 days.
Welcome send us your drawing ,We not only produce the standard types, but also the tungsten parts based on your designs. We have rich experience on this and a big part of our product is from our clients' designs. We can provide the technical support, like how to select the right grade of tungsten to match your using purpose, we will make it very easy and simple to do business with us:
