Quick Details
-
Roll Ratio(Front/Back):
-
1:1.4
-
Cooling Mode:
-
water
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MINKO
-
Voltage:
-
380V / 220V
-
Dimension(L*W*H):
-
1080*796*1415 MM
-
Year:
-
2023
-
Power (kW):
-
5.5
-
Weight (KG):
-
1000 KG
-
Product name:
-
rubber mixing banbury machine 16inch open mixer mill machine
-
Type:
-
rubber, plastic
-
Application:
-
Rubber Compound Mixing
-
Roller diameter:
-
110 mm- 350 mm
-
Mixed capacity:
-
1-2 Kg
-
Keywords:
-
rubber mixing mills
-
Usage:
-
Silicone Rubber Mixing
-
roller length:
-
320 mm- 950mm
-
Certification:
-
ISO
-
Heating method:
-
Electric Heating Tube
Quick Details
-
Diameter of Roll(mm):
-
160 mm
-
Rotation Speed of Front Roll(rpm):
-
16 - 20 rpm
-
Length of Roll(mm):
-
320 mm
-
Roll Ratio(Front/Back):
-
1:1.4
-
Cooling Mode:
-
water
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MINKO
-
Voltage:
-
380V / 220V
-
Dimension(L*W*H):
-
1080*796*1415 MM
-
Year:
-
2023
-
Power (kW):
-
5.5
-
Weight (KG):
-
1000 KG
-
Product name:
-
rubber mixing banbury machine 16inch open mixer mill machine
-
Type:
-
rubber, plastic
-
Application:
-
Rubber Compound Mixing
-
Roller diameter:
-
110 mm- 350 mm
-
Mixed capacity:
-
1-2 Kg
-
Keywords:
-
rubber mixing mills
-
Usage:
-
Silicone Rubber Mixing
-
roller length:
-
320 mm- 950mm
-
Certification:
-
ISO
-
Heating method:
-
Electric Heating Tube

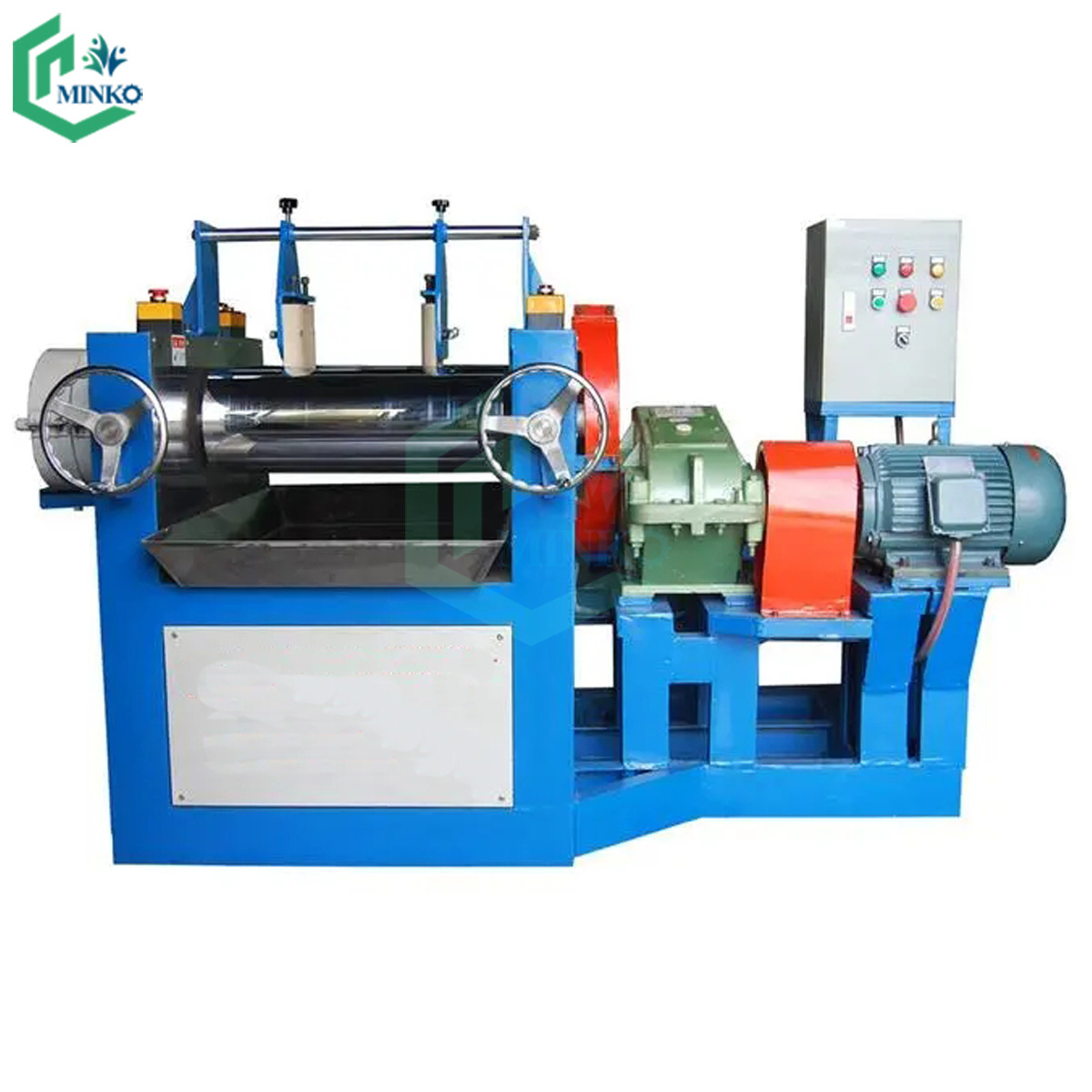

Rubber mixing banbury machine 16inch open mixer mill machine for plastic
Experimental open mill is divided into two types of water cooling and electric heating, the former is used for rubber or similar materials mixing, batching experiment; In order to prevent the material vulcanization caused by the friction heating of the roller surface, a water circulation joint is left on the side of the roller for cold water injection.
The latter is used in plastics, polymers, composite materials and other related industries, where sheets, particles or powders and modified formulas are placed between rollers, which are heated and repeatedly rolled until uniform. This equipment is mainly used for formulation research and material mixing before new product development.
The latter is used in plastics, polymers, composite materials and other related industries, where sheets, particles or powders and modified formulas are placed between rollers, which are heated and repeatedly rolled until uniform. This equipment is mainly used for formulation research and material mixing before new product development.
Product Description
Specification
|
Model
|
MK-LJ120
|
MK-LJ160
|
MK-LJ180
|
||
|
Roller diameter
|
110 mm
|
155 mm
|
190 mm
|
||
|
Roller length
|
360 mm
|
500 mm
|
550 mm
|
||
|
Maxi roll space
|
6 mm
|
10 mm
|
10 mm
|
||
|
Once feeling capacity
|
less than 1kg
|
1-5 kg
|
5-10 kg
|
||
|
Power
|
0.75kw
|
2.2kw
|
4kw
|
||
|
Speed
|
16 r/min
|
18 r/min
|
19 r/min
|
||
|
Voltage
|
380v / 220v
|
|
|
||
|
Dimension
|
850*550*1100 mm
|
1250*800*1150mm
|
1500*900*1350mm
|
||
|
Weight
|
≈200kg
|
≈500kg
|
≈1000kg
|
||
